B225_HP (~5 x D) • KCPK15 • F-Shank • HP Beyond Drills

HP Beyond™ Drills • Steel • Through Coolant

Material Number4111516

ISO Catalog IDB225F08700HPANSI Catalog IDB225F08700HP

B225F_HP 5xD Holemaking - 4111516 - Kennametal

Open expanded view

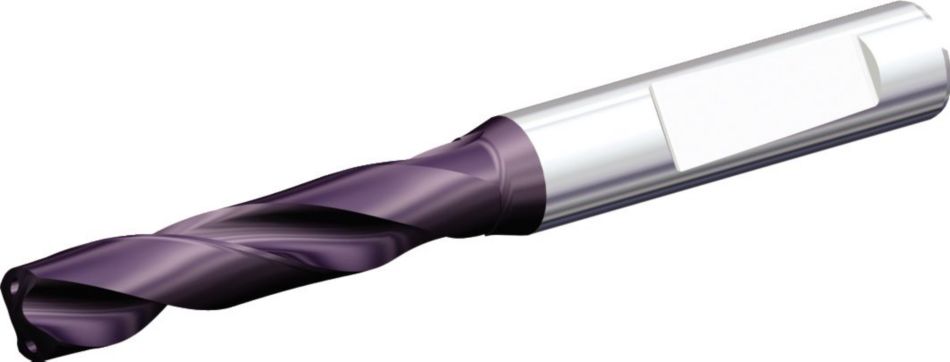

Generic representation

List Price

$304.98/each

Discount

Your Price

/each

In StockThis item is no longer availableLonger Delivery

Material Pricing Group

Contact our sales team to discover all of your pricing options

This item is no longer available

P Steel
K Cast Iron
Drilling
Tool Dimensions: 2flute/2margin/coolant
DIN number 6535
DIN number 6537
Drilling - Through Coolant
Through Coolant: MQL (Minimum Quantity Lubricant): Drilling
Shank - Cylindrical Whistle Notch 2°
Helix Angle: 30°

Overview
Application Data
Downloads
Compatible Parts Machine Side

Metric

Inch

Material Number	4111516
ISO Catalog ID	B225F08700HP
ANSI Catalog ID	B225F08700HP
Grade	KCPK15
[D1] Drill Diameter M	8.7 mm
[D1] Drill Diameter M	0.3425 in
[L] Overall Length	103 mm
[L] Overall Length	4.0551 in
[L3] Flute Length	61 mm
[L3] Flute Length	2.4016 in
[L4] Maximum Drilling Depth	49 mm
[L4] Maximum Drilling Depth	1.9291 in
[L5] Drill Point Length	1.625 mm
[L5] Drill Point Length	0.064 in
[LS] Shank Length	40 mm
[LS] Shank Length	1.5748 in
[D] Adapter / Shank / Bore Diameter	10 mm
[D] Adapter / Shank / Bore Diameter	0.3937 in

See all Product Variants

Workpiece Materials

Steel
Cast Iron

Uses and application

Drilling
Tool Dimensions: 2flute/2margin/coolant
DIN number 6535
DIN number 6537
Drilling - Through Coolant
Through Coolant: MQL (Minimum Quantity Lubricant): Drilling
Shank - Cylindrical Whistle Notch 2°
Helix Angle: 30°

Grades

KCPK15

Composition: Multilayered PVD TiN-TiAlN coated fine-grain carbide with superior surface finish.
Application: First choice for alloyed and high-alloyed steel and cast iron. A state-of-the-art surface condition enables superior chip evacuation and offers highest level of wear resistance at enhanced material removal rates.

Features and benefits

HP Beyond drills with through coolant for steel.
Material-specific SC drill for super high-speed drilling of unalloyed and alloyed steel using standard through coolant or MQL.
By combining unique Kennametal technologies, such as the HP point, flute geometry, and a new Beyond grade technology into one tool, the B22_HP is the ultimate high-volume production tool.
HP point enables high feed rates by progressive rake angle.
KCPK15™ Beyond grade is a multilayer, TiAlN-based coating with high hot hardness that enables high cutting speeds, even in MQL applications.
The highly polished surface ensures superior chip evacuation even when low-pressure coolant is applied.

Create Solution to calculate Feeds and Speeds

After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

Application Data

Material Group

Cutting Speed vc

Metric

Range m/min

Recommended Feed Rate (f) by Diameter

Min

Starting Value

Max

3,0

4,0

6,0

8,0

10,0

12,0

16,0

20,0

140

240

290

mm/r

0,08–0,15

0,09–0,18

0,12–0,21

0,14–0,29

0,15–0,33

0,17–0,37

0,19–0,43

0,22–0,49

130

240

290

mm/r

0,09–0,18

0,11–0,21

0,14–0,25

0,16–0,34

0,18–0,39

0,20–0,43

0,22–0,51

0,26–0,58

190

230

270

mm/r

0,09–0,18

0,11–0,21

0,14–0,25

0,16–0,34

0,18–0,39

0,20–0,43

0,26–0,51

0,32–0,58

130

160

190

mm/r

0,10–0,18

0,12–0,21

0,14–0,26

0,16–0,34

0,19–0,39

0,24–0,46

0,27–0,51

0,34–0,60

110

150

170

mm/r

0,07–0,16

0,09–0,18

0,14–0,26

0,16–0,34

0,17–0,36

0,22–0,45

0,25–0,52

0,30–0,60

110

mm/r

0,06–0,14

0,08–0,16

0,10–0,20

0,14–0,25

0,16–0,28

0,18–0,32

0,22–0,40

0,26–0,48

100

mm/r

0,06–0,14

0,08–0,16

0,10–0,20

0,14–0,25

0,16–0,28

0,18–0,32

0,22–0,40

0,26–0,48

120

150

200

mm/r

0,08–0,11

0,14–0,20

0,20–0,28

0,25–0,35

0,29–0,40

0,32–0,43

0,36–0,50

0,40–0,55

120

160

mm/r

0,08–0,11

0,13–0,17

0,19–0,26

0,23–0,30

0,25–0,36

0,30–0,40

0,34–0,46

0,37–0,50

120

mm/r

0,07–0,10

0,10–0,14

0,15–0,21

0,19–0,26

0,22–0,30

0,24–0,33

0,28–0,38

0,30–0,41

Material Group

Cutting Speed vc

Inch

Range SFM

Recommended Feed Rate (f) by Diameter

Min

Starting Value

Max

1/8 .125

3/16 .188

1/4 .250

5/16 .313

3/8 .375

1/2 .500

5/8 .625

3/4 .750

460

790

950

IPR

.003–.006

.004–.007

.005–.008

.006–.011

.006–.013

.007–.015

.008–.017

.009–.019

430

790

950

IPR

.004–.007

.004–.008

.006–.010

.006–.013

.007–.015

.008–.017

.009–.020

.010–.023

620

750

890

IPR

.004–.007

.004–.008

.006–.010

.006–.013

.007–.015

.008–.017

.010–.020

.013–.023

430

520

620

IPR

.004–.007

.005–.008

.006–.010

.006–.013

.008–.015

.009–.018

.011–.020

.013–.024

360

490

560

IPR

.003–.006

.004–.007

.006–.010

.006–.013

.007–.014

.009–.018

.010–.021

.012–.024

230

300

360

IPR

.002–.006

.003–.006

.004–.008

.006–.010

.006–.011

.007–.013

.009–.016

.010–.019

200

260

330

IPR

.002–.006

.003–.006

.004–.008

.006–.010

.006–.011

.007–.013

.009–.016

.010–.019

390

490

660

IPR

.003–.004

.006–.008

.008–.011

.010–.014

.011–.016

.013–.017

.014–.020

.016–.022

260

390

520

IPR

.003–.004

.005–.007

.008–.010

.009–.012

.010–.014

.012–.016

.013–.018

.015–.020

200

260

390

IPR

.003–.004

.004–.006

.006–.008

.008–.010

.009–.012

.009–.013

.011–.015

.012–.016

Cutting Speed vc

Metric

Range m/min

Recommended Feed Rate (f) by Diameter

Material Group

Min

Starting Value

Max

3,0

4,0

6,0

8,0

10,0

12,0

16,0

20,0

140

240

290

mm/r

0,08–0,15

0,09–0,18

0,12–0,21

0,14–0,29

0,15–0,33

0,17–0,37

0,19–0,43

0,22–0,49

130

240

290

mm/r

0,09–0,18

0,11–0,21

0,14–0,25

0,16–0,34

0,18–0,39

0,20–0,43

0,22–0,51

0,26–0,58

190

230

270

mm/r

0,09–0,18

0,11–0,21

0,14–0,25

0,16–0,34

0,18–0,39

0,20–0,43

0,26–0,51

0,32–0,58

130

160

190

mm/r

0,10–0,18

0,12–0,21

0,14–0,26

0,16–0,34

0,19–0,39

0,24–0,46

0,27–0,51

0,34–0,60

110

150

170

mm/r

0,07–0,16

0,09–0,18

0,14–0,26

0,16–0,34

0,17–0,36

0,22–0,45

0,25–0,52

0,30–0,60

110

mm/r

0,06–0,14

0,08–0,16

0,10–0,20

0,14–0,25

0,16–0,28

0,18–0,32

0,22–0,40

0,26–0,48

100

mm/r

0,06–0,14

0,08–0,16

0,10–0,20

0,14–0,25

0,16–0,28

0,18–0,32

0,22–0,40

0,26–0,48

120

150

200

mm/r

0,08–0,11

0,14–0,20

0,20–0,28

0,25–0,35

0,29–0,40

0,32–0,43

0,36–0,50

0,40–0,55

120

160

mm/r

0,08–0,11

0,13–0,17

0,19–0,26

0,23–0,30

0,25–0,36

0,30–0,40

0,34–0,46

0,37–0,50

120

mm/r

0,07–0,10

0,10–0,14

0,15–0,21

0,19–0,26

0,22–0,30

0,24–0,33

0,28–0,38

0,30–0,41

View MoreView Less

Tolerance

Tolerance • Metric
nominal size range	D1 tolerance m7	D tolerance h6
3–6	0,004/0,016	0,000/-0,008
6–10	0,006/0,021	0,000/-0,009
10–18	0,007/0,025	0,000/-0,011
18–25,4	0,008/0,029	0,000/-0,013

Tolerance • Inch
nominal size range	D1 tolerance m7	D tolerance h6
.1181 to .2362	.0002/.0006	.0000/-.0003
.2362 to .3937	.0002/.0008	.0000/-.0004
.3937 to .7087	.0003/.0010	.0000/-.0004
.7087 to 1.0000	.0003/.0011	.0000/-.0005

View MoreView Less

Dimension

Dimensions for Kennametal Solid Carbide Drills (B* Series)

mm				SHORT*			LONG*			EXTRA LONG**
Ø		DIN 6535		~3 x D			~5 x D			~8 x D
D1 min	D1 max	D	LS min	L	L3	L4	L	L3	L4	L	L3	L4
1,000	1,400	4	28	58	7	5	58	9	6	58	12	10
1,401	1,900	4	28	58	9	6	58	12	9	58	18	15
1,901	2,300	4	28	58	13	9	58	18	14	66	26	22
2,301	2,990	4	28	58	17	12	58	22	17	66	30	25
3,000	3,750	6	36	62	20	14	66	28	23	78	40	33
3,751	4,750	6	36	66	24	17	74	36	29	87	49	41
4,751	6,000	6	36	66	28	20	82	44	35	94	56	48
6,001	7,000	8	36	79	34	24	91	53	43	105	67	57
7,001	8,000	8	36	79	41	29	91	53	43	110	72	61
8,001	10,000	10	40	89	47	35	103	61	49	122	80	68
10,001	12,000	12	45	102	55	40	118	71	56	141	94	79
12,001	14,000	14	45	107	60	43	124	77	60	155	108	91
14,001	16,000	16	48	115	65	45	133	83	63	171	121	101
16,001	18,000	18	48	123	73	51	143	93	71	185	135	113
18,001	20,000	20	50	131	79	55	153	101	77	200	148	124
20,001	22,000	20	50	141	86	60	167	112	85	217	162	136
22,001	25,000	25	56	153	95	65	184	126	98	238	180	150
* D1 20mm to DIN 6537K
* D1 20mm to factory standard
** to factory standard

View MoreView Less
