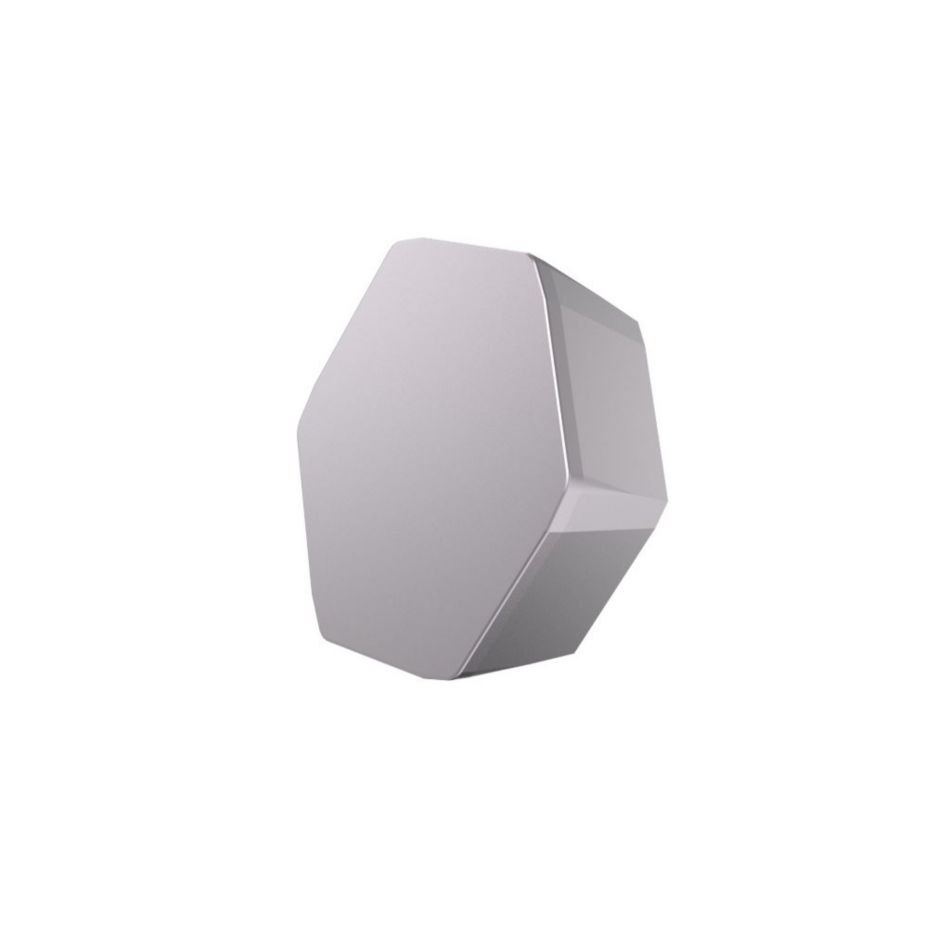

KCFM • HDHN07

Name: KCFM • HDHN07
SKU: 100087981
Rating: 0 (0 reviews)

Aufsteckfräser • Feinschlichten

Features and benefits

Milling insert for cast iron and compacted graphite iron (CGI) machining.
Indexabe milling insert with six cutting edges.
Carbide inserts are ideal for machines with lower spindle capabilities.
Low cutting forces.

. Please enter the desired qty for the material(s) you want to include in your promotion or Proceed Without Promotion and only your base materials will be added to the cart.

–	İnce son işleme		Yarı Hassas İşleme
Malzeme grubu	Option 1: CBN	Option 2: Coated Carbide	Option 1: Advanced Material	Option 2: Coated Carbide
K1 K2	.S..R KBK50	.E..R KC514M	.S..R KY3500/KBK50	.E..R KC514M
K3	–	.E..R KC514M	–	.E..R KC514M

Kesici uç geometrisi	Frezenin iş parçasına radyal giriş temasında (ae), diş başına başlangıç ilerleme (Fz) % oranı.						Kesici uç geometrisi
	5%	10%	20%	30%	40–100%
-SR					0,06	0,12	-SR
-ER					0,10	0,18	-ER

Malzeme grubu		KC514M			KBK50			KY3500
K	1	950	625	445	3935	2625	1970	3165	2870	2560
	2	740	525	375	3935	2625	1970	2495	2245	2085
	3	625	445	360	3935	2625	1970	2100	1870	1705

Malzeme grubu		KC514M			KBK50			KY3500
K	1	760	500	355	–	–	–	–	–	–
	2	590	420	300	–	–	–	–	–	–
	3	500	355	290	–	–	–	–	–	–
