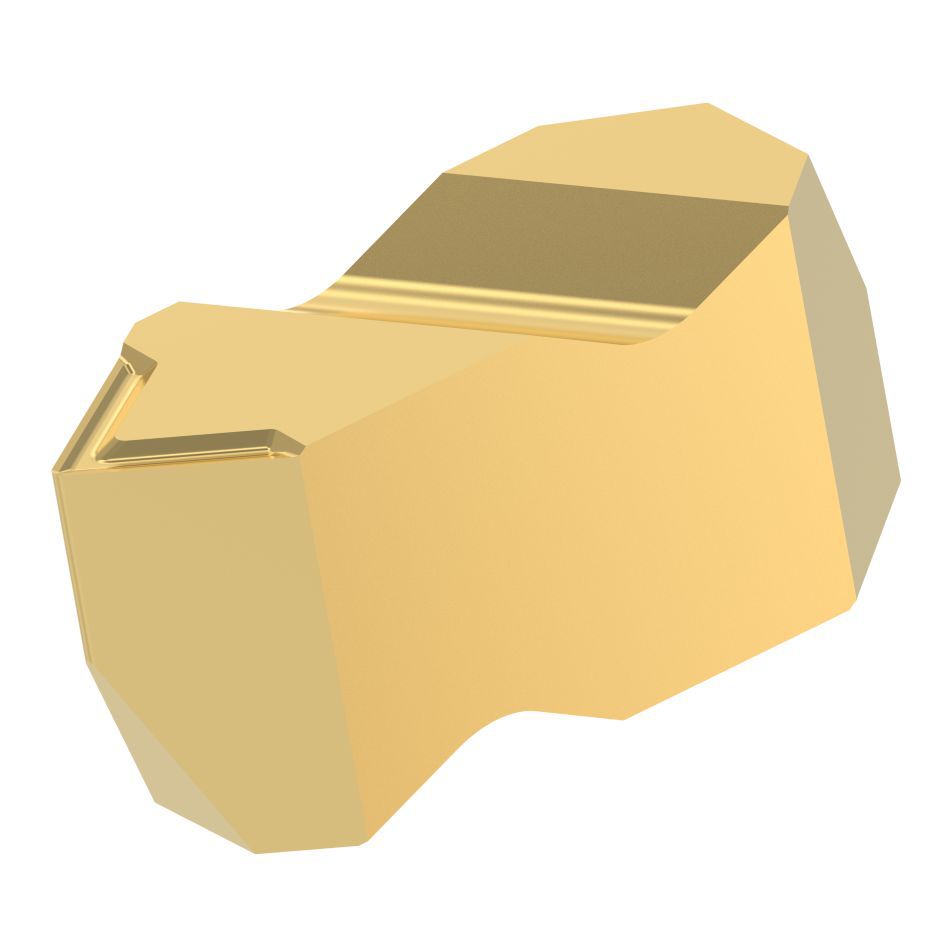

| Material Number | 1112897 |
| ISO Catalog ID | NT4RK |
| ANSI Catalog ID | NT4RK |
| Grade | KC730 |
| Insert Size | 4 |
| INS_IRR_THREAD_TYPE | 60 |
| [RC] Corner Radius Center | 0.16 mm |
| [RC] Corner Radius Center | .0065 in |
| [E] Profile Distance | 3.24 mm |
| [E] Profile Distance | .128 in |
| Thread Pitch External | 1,25-6,25 |
| Thread Pitch Internal | 2,0-6,25 |
| TPI External | 4-20 |
| TPI Internal | 4-12 |
