Product Similar To:
KDM • Weldon® Shank End Mills • RD.X12... • Inch
End Mills • RD.X12...
Material Number2251757
ISO Catalog IDKDM100RD12W275ANSI Catalog IDKDM100RD12W275
- P Steel
- M Stainless Steel
- K Cast Iron
- N Non-Ferrous
- S High-Temp Alloys
- H Hardened Materials
Helical Milling
Ramping: Blank
Side Milling/Shoulder Milling: Ball Nose
3D Profiling
Shank - Cylindrical Weldon
Milling - Through Coolant
Pocketing
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
- Overview
- Application Data
- Downloads
- Compatible Parts Machine Side
- Compatible Parts Workpiece Side
- Spare Parts
- Reviews
- Q&A
Material Number | 2251757 |
ISO Catalog ID | KDM100RD12W275 |
ANSI Catalog ID | KDM100RD12W275 |

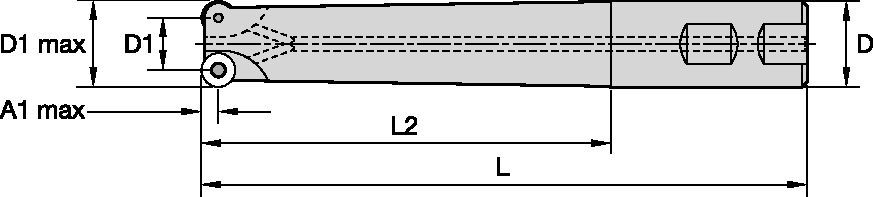

[D1MAX] Maximum Cutting Diameter | 25.4 mm |
[D1MAX] Maximum Cutting Diameter | 1 in |
[D1] Effective Cutting Diameter | 13.411 mm |
[D1] Effective Cutting Diameter | .528 in |
[D] Adapter / Shank / Bore Diameter | 31.75 mm |
[D] Adapter / Shank / Bore Diameter | 1.25 in |
[L] Overall Length | 127.762 mm |
[L] Overall Length | 5.03 in |
[L2] Head Length | 69.85 mm |
[L2] Head Length | 2.75 in |
[AP1MAX] 1st Maximum Cutting Depth | 6 mm |
[AP1MAX] 1st Maximum Cutting Depth | .236 in |
Number of Inserts | 2 |
Weight Pounds | 0.99 |
Maximum Ramping Angle | 10 |
Gage Insert | RD.X12T3. |
Workpiece Materials
- Steel
- Stainless Steel
- Cast Iron
- Non-Ferrous
- High-Temp Alloys
- Hardened Materials
Uses and application
Helical Milling
Ramping: Blank
Side Milling/Shoulder Milling: Ball Nose
3D Profiling
Shank - Cylindrical Weldon
Milling - Through Coolant
Pocketing
Features and benefits
- Suitable for die and mold manufacturing.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
Insert Selection
Insert Selection Guide
Material Group | Light | General | Heavy | |||
– | (Light geometry) | – | (Strong geometry) | |||
– | wear | toughness | ||||
– | Geometry | Grade | Geometry | Grade | Geometry | Grade |
P1–P2 | .F..LP | KC725M | .S..HP | KC725M | .S..HP | KC725M |
P3–P4 | .S..HP | KC522M | .S..HP | KCPK30 | .S..HP | KCPK30 |
P5–P6 | .S..HP | KC522M | .S..HP | KCPM20 | .S..HN | KCPM20 |
M1–M2 | – | – | .S..HP | KC725M | – | – |
M3 | – | – | .S..HP | KC725M | – | – |
K1–K2 | .S..HN | KC510M | .S..HP | KCPK30 | .S..HP | KCPK30 |
K3 | .S..HN | KC510M | .S..HP | KCPK30 | .S..HP | KCPK30 |
N1–N2 | .F..LP | K110M | .F..LP | KC510M | .F..LP | KC510M |
N3 | .F..LP | KC510M | .F..LP | KC510M | .F..GN | KC510M |
S1–S2 | – | – | .S..HP | KC725M | – | – |
S3 | – | – | .S..HP | KC725M | – | – |
S4 | – | – | .S..HP | KC725M | – | – |
H1 | .S..HN | KC510M | .S..HN | KC510M | .S..HN | KCPM20 |
Feeds
Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
10% | 20% | 30% | 40% | 50–100% | ||||||||||||
.F..LP | 0,08 | 0,17 | 0,33 | 0,06 | 0,13 | 0,25 | 0,06 | 0,11 | 0,22 | 0,05 | 0,10 | 0,20 | 0,05 | 0,10 | 0,20 | .F..LP |
.F..GN | 0,08 | 0,17 | 0,33 | 0,06 | 0,13 | 0,25 | 0,06 | 0,11 | 0,22 | 0,05 | 0,10 | 0,20 | 0,05 | 0,10 | 0,20 | .F..GN |
.T..GN | 0,17 | 0,43 | 0,68 | 0,13 | 0,32 | 0,51 | 0,11 | 0,28 | 0,44 | 0,10 | 0,26 | 0,41 | 0,10 | 0,25 | 0,41 | .T..GN |
.S..GN | 0,17 | 0,43 | 0,68 | 0,13 | 0,32 | 0,51 | 0,11 | 0,28 | 0,44 | 0,10 | 0,26 | 0,41 | 0,10 | 0,25 | 0,41 | .S..GN |
.S..HP | 0,17 | 0,43 | 0,68 | 0,13 | 0,32 | 0,51 | 0,11 | 0,28 | 0,44 | 0,10 | 0,26 | 0,41 | 0,10 | 0,25 | 0,41 | .S..HP |
.S..HN | 0,17 | 0,43 | 0,68 | 0,13 | 0,32 | 0,51 | 0,11 | 0,28 | 0,44 | 0,10 | 0,26 | 0,41 | 0,10 | 0,25 | 0,41 | .S..HN |
Light | General | Heavy |
Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
10% | 20% | 30% | 40% | 50–100% | ||||||||||||
.F..LP | 0,18 | 0,35 | 0,69 | 0,13 | 0,26 | 0,52 | 0,11 | 0,23 | 0,45 | 0,11 | 0,21 | 0,42 | 0,10 | 0,21 | 0,41 | .F..LP |
.F..GN | 0,18 | 0,35 | 0,69 | 0,13 | 0,26 | 0,52 | 0,11 | 0,23 | 0,45 | 0,11 | 0,21 | 0,42 | 0,10 | 0,21 | 0,41 | .F..GN |
.T..GN | 0,35 | 0,88 | 1,42 | 0,26 | 0,66 | 1,05 | 0,23 | 0,57 | 0,92 | 0,21 | 0,54 | 0,86 | 0,21 | 0,52 | 0,84 | .T..GN |
.S..GN | 0,35 | 0,88 | 1,42 | 0,26 | 0,66 | 1,05 | 0,23 | 0,57 | 0,92 | 0,21 | 0,54 | 0,86 | 0,21 | 0,52 | 0,84 | .S..GN |
.S..HP | 0,35 | 0,88 | 1,42 | 0,26 | 0,66 | 1,05 | 0,23 | 0,57 | 0,92 | 0,21 | 0,54 | 0,86 | 0,21 | 0,52 | 0,84 | .S..HP |
.S..HN | 0,35 | 0,88 | 1,42 | 0,26 | 0,66 | 1,05 | 0,23 | 0,57 | 0,92 | 0,21 | 0,54 | 0,86 | 0,21 | 0,52 | 0,84 | .S..HN |
Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
10% | 20% | 30% | 40% | 50–100% | ||||||||||||
.F..LP | 0,10 | 0,19 | 0,39 | 0,07 | 0,14 | 0,29 | 0,06 | 0,13 | 0,25 | 0,06 | 0,12 | 0,24 | 0,06 | 0,12 | 0,23 | .F..LP |
.F..GN | 0,10 | 0,19 | 0,39 | 0,07 | 0,14 | 0,29 | 0,06 | 0,13 | 0,25 | 0,06 | 0,12 | 0,24 | 0,06 | 0,12 | 0,23 | .F..GN |
.T..GN | 0,20 | 0,49 | 0,79 | 0,15 | 0,37 | 0,59 | 0,13 | 0,32 | 0,51 | 0,12 | 0,30 | 0,48 | 0,12 | 0,29 | 0,47 | .T..GN |
.S..GN | 0,20 | 0,49 | 0,79 | 0,15 | 0,37 | 0,59 | 0,13 | 0,32 | 0,51 | 0,12 | 0,30 | 0,48 | 0,12 | 0,29 | 0,47 | .S..GN |
.S..HP | 0,20 | 0,49 | 0,79 | 0,15 | 0,37 | 0,59 | 0,13 | 0,32 | 0,51 | 0,12 | 0,30 | 0,48 | 0,12 | 0,29 | 0,47 | .S..HP |
.S..HN | 0,20 | 0,49 | 0,79 | 0,15 | 0,37 | 0,59 | 0,13 | 0,32 | 0,51 | 0,12 | 0,30 | 0,48 | 0,12 | 0,29 | 0,47 | .S..HN |
Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
10% | 20% | 30% | 40% | 50–100% | ||||||||||||
.F..LP | 0,13 | 0,25 | 0,51 | 0,10 | 0,19 | 0,38 | 0,08 | 0,17 | 0,33 | 0,08 | 0,15 | 0,31 | 0,08 | 0,15 | 0,30 | .F..LP |
.F..GN | 0,13 | 0,25 | 0,51 | 0,10 | 0,19 | 0,38 | 0,08 | 0,17 | 0,33 | 0,08 | 0,15 | 0,31 | 0,08 | 0,15 | 0,30 | .F..GN |
.T..GN | 0,26 | 0,64 | 1,04 | 0,19 | 0,48 | 0,77 | 0,17 | 0,42 | 0,67 | 0,16 | 0,39 | 0,63 | 0,15 | 0,38 | 0,61 | .T..GN |
.S..GN | 0,26 | 0,64 | 1,04 | 0,19 | 0,48 | 0,77 | 0,17 | 0,42 | 0,67 | 0,16 | 0,39 | 0,63 | 0,15 | 0,38 | 0,61 | .S..GN |
.S..HP | 0,26 | 0,64 | 1,04 | 0,19 | 0,48 | 0,77 | 0,17 | 0,42 | 0,67 | 0,16 | 0,39 | 0,63 | 0,15 | 0,38 | 0,61 | .S..HP |
.S..HN | 0,26 | 0,64 | 1,04 | 0,19 | 0,48 | 0,77 | 0,17 | 0,42 | 0,67 | 0,16 | 0,39 | 0,63 | 0,15 | 0,38 | 0,61 | .S..HN |
Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
10% | 20% | 30% | 40% | 50–100% | ||||||||||||
.F..LP | .003 | .007 | .014 | .003 | .005 | .010 | .002 | .004 | .009 | .002 | .004 | .008 | .002 | .004 | .008 | .F..LP |
.F..GN | .003 | .007 | .014 | .003 | .005 | .010 | .002 | .004 | .009 | .002 | .004 | .008 | .002 | .004 | .008 | .F..GN |
.T..GN | .007 | .017 | .028 | .005 | .013 | .020 | .004 | .011 | .018 | .004 | .010 | .016 | .004 | .010 | .016 | .T..GN |
.S..GN | .007 | .017 | .028 | .005 | .013 | .020 | .004 | .011 | .018 | .004 | .010 | .016 | .004 | .010 | .016 | .S..GN |
.S..HP | .007 | .017 | .028 | .005 | .013 | .020 | .004 | .011 | .018 | .004 | .010 | .016 | .004 | .010 | .016 | .S..HP |
.S..HN | .007 | .017 | .028 | .005 | .013 | .020 | .004 | .011 | .018 | .004 | .010 | .016 | .004 | .010 | .016 | .S..HN |
Light | General | Heavy |
Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
10% | 20% | 30% | 40% | 50–100% | ||||||||||||
.F..LP | .004 | .008 | .016 | .003 | .006 | .012 | .003 | .005 | .010 | .002 | .005 | .009 | .002 | .005 | .009 | .F..LP |
.F..GN | .004 | .008 | .016 | .003 | .006 | .012 | .003 | .005 | .010 | .002 | .005 | .009 | .002 | .005 | .009 | .F..GN |
.T..GN | .008 | .020 | .032 | .006 | .015 | .023 | .005 | .013 | .020 | .005 | .012 | .019 | .005 | .012 | .018 | .T..GN |
.S..GN | .008 | .020 | .032 | .006 | .015 | .023 | .005 | .013 | .020 | .005 | .012 | .019 | .005 | .012 | .018 | .S..GN |
.S..HP | .008 | .020 | .032 | .006 | .015 | .023 | .005 | .013 | .020 | .005 | .012 | .019 | .005 | .012 | .018 | .S..HP |
.S..HN | .008 | .020 | .032 | .006 | .015 | .023 | .005 | .013 | .020 | .005 | .012 | .019 | .005 | .012 | .018 | .S..HN |
Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
10% | 20% | 30% | 40% | 50–100% | ||||||||||||
.F..LP | .007 | .014 | .028 | .005 | .010 | .021 | .005 | .009 | .018 | .004 | .008 | .017 | .004 | .008 | .017 | .F..LP |
.F..GN | .007 | .014 | .028 | .005 | .010 | .021 | .005 | .009 | .018 | .004 | .008 | .017 | .004 | .008 | .017 | .F..GN |
.T..GN | .014 | .036 | .059 | .010 | .026 | .042 | .009 | .023 | .036 | .008 | .021 | .034 | .008 | .021 | .033 | .T..GN |
.S..GN | .014 | .036 | .059 | .010 | .026 | .042 | .009 | .023 | .036 | .008 | .021 | .034 | .008 | .021 | .033 | .S..GN |
.S..HP | .014 | .036 | .059 | .010 | .026 | .042 | .009 | .023 | .036 | .008 | .021 | .034 | .008 | .021 | .033 | .S..HP |
.S..HN | .014 | .036 | .059 | .010 | .026 | .042 | .009 | .023 | .036 | .008 | .021 | .034 | .008 | .021 | .033 | .S..HN |
Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
10% | 20% | 30% | 40% | 50–100% | ||||||||||||
.F..LP | .005 | .010 | .021 | .004 | .008 | .015 | .003 | .007 | .013 | .003 | .006 | .012 | .003 | .006 | .012 | .F..LP |
.F..GN | .005 | .010 | .021 | .004 | .008 | .015 | .003 | .007 | .013 | .003 | .006 | .012 | .003 | .006 | .012 | .F..GN |
.T..GN | .010 | .026 | .042 | .008 | .019 | .031 | .007 | .017 | .027 | .006 | .015 | .025 | .006 | .015 | .024 | .T..GN |
.S..GN | .010 | .026 | .042 | .008 | .019 | .031 | .007 | .017 | .027 | .006 | .015 | .025 | .006 | .015 | .024 | .S..GN |
.S..HP | .010 | .026 | .042 | .008 | .019 | .031 | .007 | .017 | .027 | .006 | .015 | .025 | .006 | .015 | .024 | .S..HP |
.S..HN | .010 | .026 | .042 | .008 | .019 | .031 | .007 | .017 | .027 | .006 | .015 | .025 | .006 | .015 | .024 | .S..HN |
Speeds
Recommended Starting Speeds [m/min]
Material Group | K110M | KC510M | KC522M | KC525M | KC725M | KCPM20 | KCPK30 | KTPK20 | |||||||||||||||||
P | 1 | – | – | – | – | – | – | 395 | 345 | 325 | 260 | 240 | 215 | 315 | 275 | 255 | 660 | 580 | 535 | 545 | 475 | 440 | 440 | 360 | 310 |
2 | – | – | – | – | – | – | 330 | 290 | 240 | 215 | 190 | 180 | 260 | 230 | 195 | 410 | 370 | 330 | 335 | 305 | 275 | 270 | 225 | 190 | |
3 | – | – | – | – | – | – | 305 | 255 | 215 | 190 | 180 | 170 | 240 | 205 | 170 | 370 | 330 | 305 | 305 | 275 | 250 | 245 | 205 | 170 | |
4 | – | – | – | 295 | 240 | 200 | 270 | 225 | 180 | 170 | 160 | 145 | 215 | 180 | 145 | 275 | 255 | 230 | 225 | 210 | 190 | 185 | 160 | 130 | |
5 | – | – | – | – | – | – | 225 | 200 | 180 | 180 | 170 | 160 | 180 | 160 | 145 | 330 | 300 | 275 | 310 | 275 | 255 | 255 | 205 | 175 | |
6 | – | – | – | – | – | – | 200 | 150 | 120 | 160 | 145 | 130 | 160 | 120 | 95 | 230 | 200 | 175 | 190 | 165 | – | 150 | 125 | – | |
M | 1 | – | – | – | – | – | – | 245 | 215 | 200 | 180 | 170 | 160 | 205 | 180 | 165 | 270 | 240 | 205 | 250 | 220 | 190 | 285 | 235 | 200 |
2 | – | – | – | – | – | – | 225 | 190 | 160 | 160 | 145 | 130 | 185 | 160 | 130 | 245 | 215 | 190 | 225 | 195 | 170 | 260 | 220 | 185 | |
3 | – | – | – | – | – | – | 170 | 145 | 115 | 110 | 95 | 85 | 140 | 120 | 95 | 195 | 175 | 150 | 175 | 160 | 140 | 195 | 160 | – | |
K | 1 | 155 | 145 | 135 | 350 | 315 | 285 | 275 | 250 | 220 | – | – | – | – | – | – | 435 | 390 | 350 | 355 | 320 | 285 | 275 | 235 | 195 |
2 | 135 | 130 | 120 | 275 | 250 | 230 | 215 | 195 | 180 | – | – | – | – | – | – | 345 | 310 | 280 | 280 | 255 | 230 | 220 | 180 | 160 | |
3 | 120 | 105 | 95 | 235 | 205 | 190 | 180 | 160 | 145 | – | – | – | – | – | – | 290 | 255 | 240 | 235 | 210 | 195 | 185 | 150 | 130 | |
N | 1–2 | 605 | 565 | 540 | 770 | 685 | 630 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
3 | 495 | 440 | 385 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
S | 1 | – | – | – | – | – | – | 50 | 45 | 35 | 75 | 65 | 60 | 45 | 35 | 30 | – | – | – | – | – | – | – | – | – |
2 | – | – | – | – | – | – | 50 | 45 | 35 | 75 | 65 | 60 | 45 | 35 | 30 | – | – | – | – | – | – | – | – | – | |
3 | – | – | – | – | – | – | 60 | 50 | 35 | 60 | 55 | 50 | 55 | 45 | 30 | – | – | – | – | – | – | – | – | – | |
4 | – | – | – | – | – | – | 85 | 60 | 45 | 75 | 60 | 50 | 75 | 55 | 35 | – | – | – | – | – | – | – | – | – | |
H | 1 | – | – | – | 190 | 155 | 110 | 145 | 110 | 85 | – | – | – | – | – | – | 170 | 140 | 115 | – | – | – | – | – | – |
Recommended Starting Speeds [SFM]
Material Group | KC110M | KC510M | KC522M | KC525M | KC725M | KCPM20 | KCPK30 | KTPK20 | |||||||||||||||||
P | 1 | – | – | – | – | – | – | 1300 | 1130 | 1060 | 860 | 790 | 710 | 1030 | 900 | 840 | 2170 | 1910 | 1760 | 1780 | 1560 | 1450 | 1440 | 1180 | 1010 |
2 | – | – | – | – | – | – | 1080 | 950 | 790 | 710 | 620 | 590 | 860 | 760 | 640 | 1340 | 1210 | 1090 | 1100 | 1000 | 900 | 890 | 740 | 620 | |
3 | – | – | – | – | – | – | 1000 | 840 | 700 | 620 | 590 | 550 | 790 | 670 | 550 | 1210 | 1090 | 1000 | 1000 | 900 | 820 | 800 | 670 | 560 | |
4 | – | – | – | 960 | 780 | 660 | 890 | 730 | 590 | 550 | 520 | 470 | 710 | 590 | 470 | 910 | 840 | 760 | 740 | 690 | 620 | 600 | 520 | 430 | |
5 | – | – | – | – | – | – | 730 | 660 | 590 | 590 | 550 | 520 | 590 | 530 | 470 | 1090 | 980 | 900 | 1020 | 910 | 830 | 830 | 680 | 580 | |
6 | – | – | – | – | – | – | 650 | 490 | 400 | 520 | 470 | 430 | 520 | 400 | 310 | 760 | 660 | 570 | 620 | 540 | – | 500 | 410 | – | |
M | 1 | – | – | – | – | – | – | 800 | 710 | 650 | 590 | 550 | 520 | 670 | 590 | 540 | 880 | 790 | 680 | 820 | 720 | 620 | 940 | 770 | 650 |
2 | – | – | – | – | – | – | 730 | 620 | 520 | 520 | 470 | 430 | 610 | 520 | 430 | 800 | 700 | 620 | 730 | 640 | 550 | 850 | 720 | 600 | |
3 | – | – | – | – | – | – | 550 | 480 | 370 | 360 | 310 | 280 | 460 | 400 | 310 | 640 | 570 | 490 | 570 | 520 | 460 | 640 | 530 | – | |
K | 1 | 510 | 480 | 450 | 1150 | 1040 | 940 | 900 | 820 | 720 | – | – | – | – | – | – | 1420 | 1280 | 1150 | 1160 | 1050 | 940 | 910 | 770 | 640 |
2 | 450 | 420 | 390 | 910 | 820 | 760 | 710 | 640 | 590 | – | – | – | – | – | – | 1130 | 1010 | 920 | 920 | 830 | 760 | 720 | 590 | 520 | |
3 | 400 | 350 | 310 | 770 | 680 | 620 | 590 | 530 | 480 | – | – | – | – | – | – | 950 | 840 | 780 | 770 | 690 | 640 | 600 | 500 | 420 | |
N | 1–2 | 1980 | 1860 | 1770 | 2520 | 2240 | 2060 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
3 | 1620 | 1440 | 1260 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
S | 1 | – | – | – | – | – | – | 160 | 140 | 110 | 240 | 220 | 190 | 140 | 120 | 100 | – | – | – | – | – | – | – | – | – |
2 | – | – | – | – | – | – | 160 | 140 | 110 | 240 | 220 | 190 | 140 | 120 | 100 | – | – | – | – | – | – | – | – | – | |
3 | – | – | – | – | – | – | 200 | 160 | 110 | 190 | 180 | 160 | 180 | 140 | 100 | – | – | – | – | – | – | – | – | – | |
4 | – | – | – | – | – | – | 280 | 200 | 140 | 240 | 190 | 160 | 240 | 180 | 120 | – | – | – | – | – | – | – | – | – | |
H | 1 | – | – | – | 630 | 510 | 360 | 470 | 360 | 280 | – | – | – | – | – | – | 550 | 460 | 370 | – | – | – | – | – | – |
