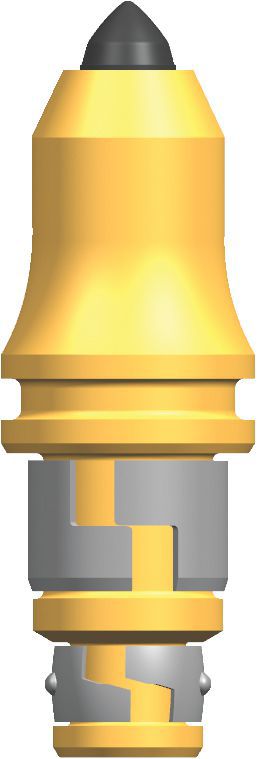

Internal Retainer
100029112
X Treatment
Cutting Conditions: Medium
Tool with Puller Groove
Cutting Conditions: AbrasiveDownloaded file will be available after import in the {{cadTool}} tool library.

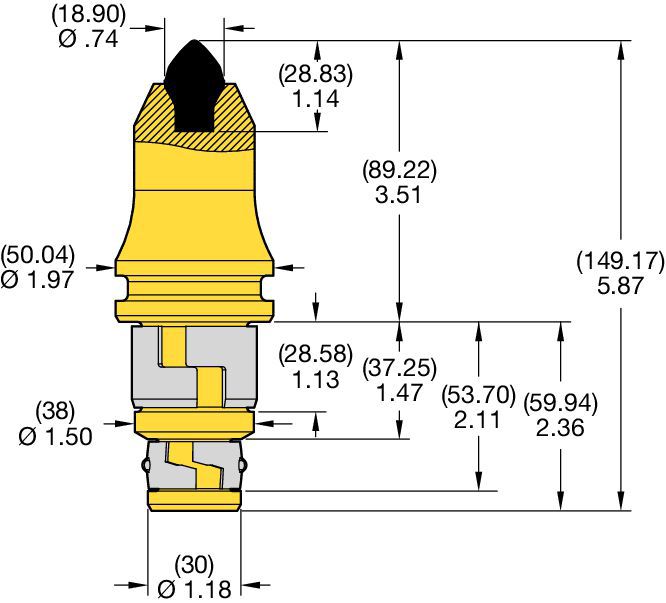

| Material Nummer | 5380221 |
| ISO Katalog Nummer | DS102DR X |
| ANSI Katalog Nummer | DS102DR X |
| Sorte | K3560 |
| [L1] Messlänge | 89.224 mm |
| [L1] Messlänge | 3.5127 in |
| [LS] Schaftlänge | 59.994 mm |
| [LS] Schaftlänge | 2.36 in |
| [LRO] Aufnahmelänge Offset | 28.575 mm |
| [LRO] Aufnahmelänge Offset | 1.125 in |
| [TL] Länge der Spitze | 28.829 mm |
| [TL] Länge der Spitze | 1.135 in |
| [TD] Durchmesser der Spitze | 18.898 mm |
| [TD] Durchmesser der Spitze | 0.744 in |
| [TDS] Durchmesser der Spitze Start | 25.806 mm |
| [TDS] Durchmesser der Spitze Start | 1.016 in |
| [D} Schaft-/Bohrdurchmesser | 37.719 mm |
| [D} Schaft-/Bohrdurchmesser | 1.485 in |
| [D2] Körperdurchmesser Werkstückseite | 50.038 mm |
| [D2] Körperdurchmesser Werkstückseite | 1.97 in |
| [DR] Durchmesser des Schafts reduziert | 29.515 mm |
| [DR] Durchmesser des Schafts reduziert | 1.162 in |
| [OAL] Gesamtlänge | 149.168 mm |
| [OAL] Gesamtlänge | 5.8728 in |
| Schnittbedingung | HEAVY |
| [Maschinenleistung | MEDIUM TO HIGH |
| [Aufnahme-Ausführung | FRICTION POSITIVE LOCK |
Internal Retainer100029112X TreatmentCutting Conditions: MediumTool with Puller GrooveCutting Conditions: AbrasiveI have read and accepted the Terms & Conditions of use
