    T682 • Machine Screw and Fractional • Form C Semi-Bottoming Chamfer • DIN Length ANSI Shank

    Beyond™ Spiral-Flute HSS-E Taps • Blind Holes

    Material Number5689867

    ISO Catalog IDT682NC08-32R2B-DAANSI Catalog IDT682NC08-32R2B-DA

    T682 RHSF DA Inch Threading - 5689867 - Kennametal
    T682 RHSF DA Inch Threading - 5689867 - Kennametal
    T682 RHSF DA Inch Threading - 5689867 - Kennametal
    Open expanded view
    T682 RHSF DA Inch Threading - 5689867 - Kennametal
    T682 RHSF DA Inch Threading - 5689867 - Kennametal

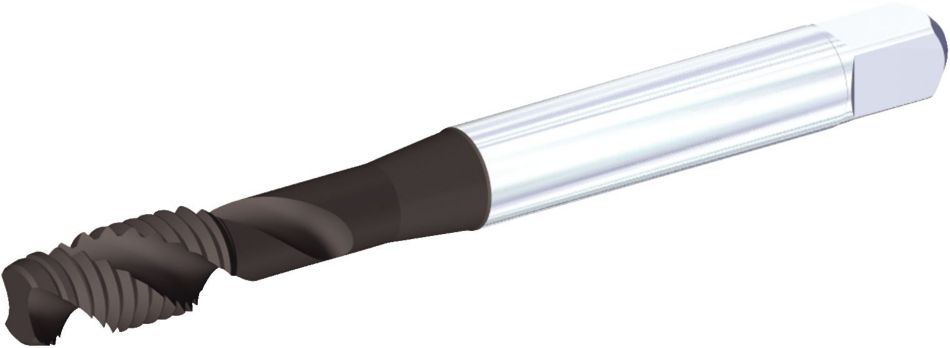

    Generic representation
    List Price
    $48.24/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • N Non-Ferrous
    • Tapping: Blind HoleTapping: Blind Hole
    • Class of Fit: 2BClass of Fit: 2B
    • Class of Fit: 3BClass of Fit: 3B
    • Chamfer Form C (2–3)Chamfer Form C (2–3)
    • 3861838618
    • Flood Coolant: TappingFlood Coolant: Tapping
    • Manufacturer’s Specs: UNFManufacturer’s Specs: UNF
    • Manufacturer’s Specs: UNCManufacturer’s Specs: UNC
    • Tapping Helix Angle: 45°Tapping Helix Angle: 45°
    • DIN Number ANSIDIN Number ANSI
    This export format is not yet supported for this category.

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 5689867
    Metric
    Inch
    Material Number5689867
    ISO Catalog IDT682NC08-32R2B-DA
    ANSI Catalog IDT682NC08-32R2B-DA
    GradeKSMN34
    [D1-TDZ] Thread Diameter Size#8 - 32
    [L] Overall Length 63 mm
    [L] Overall Length 2.48 in
    [L3] Thread Length 11 mm
    [L3] Thread Length 0.43 in
    [L2] Useable Length 21 mm
    [L2] Useable Length 0.83 in
    [D] Adapter / Shank / Bore Diameter4.267 mm
    [D] Adapter / Shank / Bore Diameter0.168 in
    [Z] Number of Flutes2
    Thread Tolerance Class ANSI2B
    See all Product Variants

    Workpiece Materials

    • Non-Ferrous

    Uses and application

    • Tapping: Blind HoleTapping: Blind Hole
    • Class of Fit: 2BClass of Fit: 2B
    • Class of Fit: 3BClass of Fit: 3B
    • Chamfer Form C (2–3)Chamfer Form C (2–3)
    • 3861838618
    • Flood Coolant: TappingFlood Coolant: Tapping
    • Manufacturer’s Specs: UNFManufacturer’s Specs: UNF
    • Manufacturer’s Specs: UNCManufacturer’s Specs: UNC
    • Tapping Helix Angle: 45°Tapping Helix Angle: 45°
    • DIN Number ANSIDIN Number ANSI

    Grades

    KSMN34

    KSMN34

    High-vanadium HSS-E substrate with a coating consists of low-friction CrC/C over wear-resistant TiN base layer. Use for tapping stainless steel and non-ferrous materials.

    Features and benefits

    • KSMN34 TiN + CrC/C for aluminum.

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    Application Data

    View MoreView Less

    Tolerance

    shank tolerance
    D inchtolerance h9
    .141–.635+0, -.0015
    .635–1.51+0, -.0020
    1.51–2.01+0, -.0030
    shank tolerance
    Dtolerance h9
    1 3+0, -0,025
    3,5 6+0, -0,030
    7 10+0, -0,036
    11 18+0, -0,043
    View MoreView Less

    Speeds & Feeds

    View MoreView Less

    I have read and accepted the Terms & Conditions of use

    CAD Drawings Models

    Can’t find the file type you’re looking for?

    Product data

    SDS

    Safety Data Sheets
    Create Solution to find the perfect compatible parts for your tool.
