Fresamento de face
Fresamento lateral/fresamento de canto: topo reto
Fresamento — Refrigeração interna
Fresamento — Lateral e de faceDownloaded file will be available after import in the {{cadTool}} tool library.
| Número de material | 2235057 |
| ID do catálogo ISO | 160B06RP90BG15CUM |
| ID do catálogo ANSI | 160B06RP90BG15CUM |

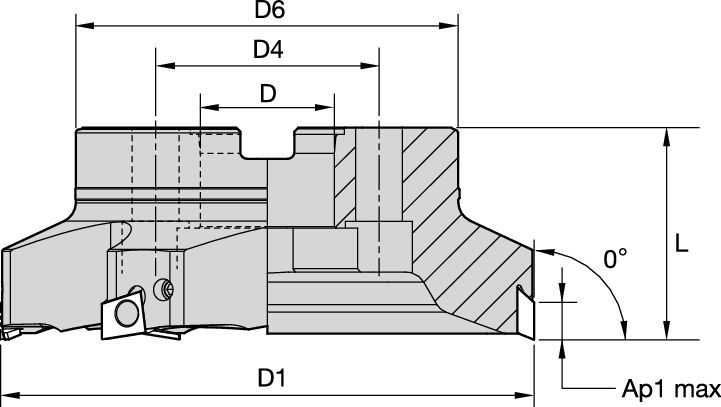

| [D1] Effective Cutting Diameter | 152.4 mm |
| [D1] Effective Cutting Diameter | 6 in |
| [D] Adapter / Shank / Bore Diameter | 50.8 mm |
| [D] Adapter / Shank / Bore Diameter | 2 in |
| [D6] Hub Diameter | 123.952 mm |
| [D6] Hub Diameter | 4.88 in |
| [L] Overall Length | 60.452 mm |
| [L] Overall Length | 2.38 in |
| [AP1MAX] 1st Maximum Cutting Depth | 9.5 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 0.374 in |
| Number of Inserts | 6 |
| Weight Pounds | 8.5 |
| Max RPM | 4180 |
Fresamento de faceFresamento lateral/fresamento de canto: topo retoFresamento — Refrigeração internaFresamento — Lateral e de faceCriar solução para calcular avanços e velocidade
Após criar uma solução basta escolher o ícone Avanços & Velocidades e o nosso sistema irá fornecer recomendações. Pode personalizar as informações adicionando a sua máquina e especificações ou fazer ajustes utilizando os controlos deslizantes.
| Geometria do Inserto | Avanço por faca inicial recomendado (fz = mm/faca) em relação à % de engajamento radial (ae) | Geometria do Inserto | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 | ||||||||||||
| BGHX… | .005 | .014 | .023 | .003 | .010 | .017 | .003 | .008 | .013 | .002 | .007 | .011 | .002 | .006 | .010 | BGHX… |
| Usinagem leve | Usinagem geral | Usinagem pesada |
| Grupo de material | K110M | KC510M | KD1410 | KD1415 | |||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| N | 1–2 | 1650 | 1550 | 1475 | 2100 | 1870 | 1720 | 13150 | 11500 | 9800 | 13150 | 11500 | 9800 |
| 3 | 1350 | 1200 | 1050 | 1900 | 1750 | 1600 | 5250 | 4900 | 4600 | 5250 | 4900 | 4600 | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| Grupo de material | Usinagem leve | Usinagem geral | Usinagem pesada | |||
| – | (Geometria leve) | (Geometria reforçada) | ||||
| – | resistência ao desgaste |  | tenacidade | |||
| – | Geometria | Classe | Geometria | Classe | Geometria | Classe |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | – | – | – | – | – | – |
| K3 | – | – | – | – | – | – |
| N1–N2 | BGHX… | K110M | BGHX… | KC510M | BGHX… | KD1415 |
| N3 | BGHX… | K110M | BGHX… | KD1410 | BGHX… | KD1410 |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
