DrillingDownloaded file will be available after import in the {{cadTool}} tool library.

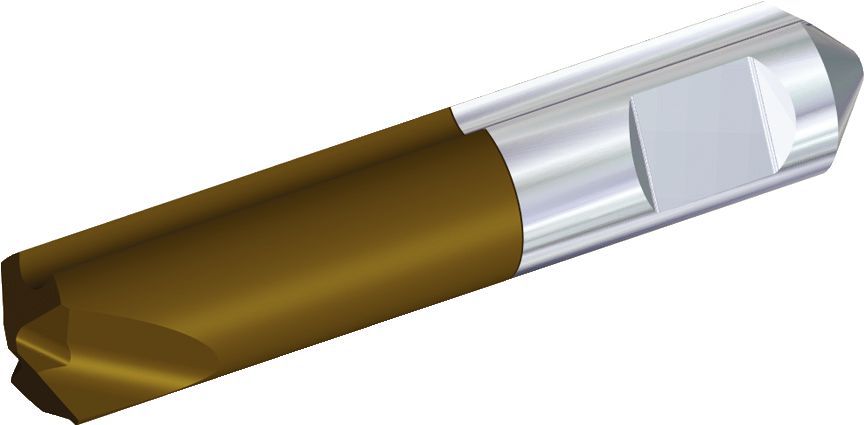

| Material Number | 1940740 |
| ISO Catalog ID | B513S10000 |
| ANSI Catalog ID | B513S10000 |
| Grade | A30 |
| [D1] Drill Diameter M | 10 mm |
| [D1] Drill Diameter M | .3937 in |
DrillingCreate Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
| D1 | 2 | 4 | |||||||||||
| L6 | L7 | L6 | L7 | L6 | L7 | ||||||||
| mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in |
| 8,00 | .315 | 3,00 | .118 | 0,80 | .032 | 3,40 | .134 | 1,20 | .047 | 3,80 | .150 | 1,60 | .063 |
| 10,00 | .394 | 4,00 | .158 | 1,30 | .051 | 4,30 | .169 | 1,60 | .063 | 4,60 | .181 | 1,90 | .075 |
| 15,00 | .591 | 6,20 | .244 | 2,10 | .083 | 6,50 | .256 | 2,40 | .095 | 6,80 | .268 | 2,70 | .106 |
| 20,00 | .787 | 8,10 | .319 | 2,60 | .102 | 8,40 | .331 | 2,90 | .114 | 8,70 | .343 | 3,20 | .126 |
| 25,00 | .984 | 10.50 | .413 | 3,50 | .138 | 10,90 | .429 | 3,90 | .154 | 11,30 | .445 | 4,30 | .169 |
| 30,00 | 1181 | 12,30 | .484 | 4,10 | .158 | 12,80 | .504 | 4,50 | .177 | 13,20 | .520 | 5,00 | .197 |
