    HARVI™ I • Radiused • 4 Flutes • Plain Shank • Inch

    HARVI™ I Solid Carbide End Mill for Roughing and Finishing of Multiple Materials

    Material Number4047705

    ISO Catalog IDHPHV188S4031LR015ANSI Catalog IDHPHV188S4031LR015

    HARVI™ I - Radiused - 4 Flutes - Plain Shank - Inch 4047705 - Kennametal
    HARVI™ I - Radiused - 4 Flutes - Plain Shank - Inch 4047705 - Kennametal
    HARVI™ I - Radiused - 4 Flutes - Plain Shank - Inch 4047705 - Kennametal
    Open expanded view
    HARVI™ I - Radiused - 4 Flutes - Plain Shank - Inch 4047705 - Kennametal
    HARVI™ I - Radiused - 4 Flutes - Plain Shank - Inch 4047705 - Kennametal
    Generic representation
    List Price
    $60.32/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • P Steel
    • M Stainless Steel
    • K Cast Iron
    • H Hardened Materials
    • Trochoidal MillingTrochoidal Milling
    • Plunge MillingPlunge Milling
    • Ramping: BlankRamping: Blank
    • Slotting: Square EndSlotting: Square End
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • Tool Dimensions: Flute Configuration: 4Tool Dimensions: Flute Configuration: 4
    • Helix Angle: 38°Helix Angle: 38°
    • Corner Style: Corner ChamferCorner Style: Corner Chamfer
    • Corner Style: Corner RadiusCorner Style: Corner Radius
    • Corner Style: Square EndCorner Style: Square End
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

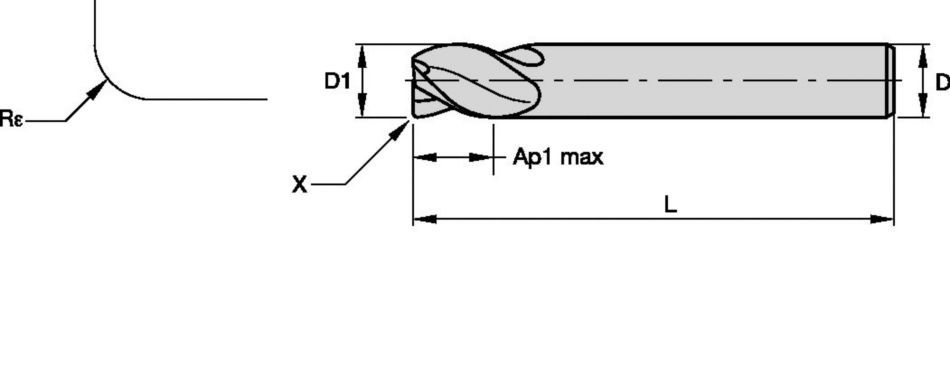

    Drawings for 4047705
    Metric
    Inch
    Material Number4047705
    ISO Catalog IDHPHV188S4031LR015
    ANSI Catalog IDHPHV188S4031LR015
    GradeKCPM15
    Adapter Style Machine SideStraight-Cylindrical
    [Re] Corner Radius 0.381 mm
    [Re] Corner Radius .015 in
    [Z] Number of Flutes4
    [D1] Effective Cutting Diameter4.763 mm
    [D1] Effective Cutting Diameter.1875 in
    [D] Adapter / Shank / Bore Diameter4.763 mm
    [D] Adapter / Shank / Bore Diameter.1875 in
    [AP1MAX] 1st Maximum Cutting Depth7.938 mm
    [AP1MAX] 1st Maximum Cutting Depth.3125 in
    [L3] Usable Length7.938 mm
    [L3] Usable Length.3125 in
    [L] Overall Length 63.5 mm
    [L] Overall Length 2.5 in
    See all Product Variants

    Workpiece Materials

    • Steel
    • Stainless Steel
    • Cast Iron
    • Hardened Materials

    Uses and application

    • Trochoidal MillingTrochoidal Milling
    • Plunge MillingPlunge Milling
    • Ramping: BlankRamping: Blank
    • Slotting: Square EndSlotting: Square End
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • Tool Dimensions: Flute Configuration: 4Tool Dimensions: Flute Configuration: 4
    • Helix Angle: 38°Helix Angle: 38°
    • Corner Style: Corner ChamferCorner Style: Corner Chamfer
    • Corner Style: Corner RadiusCorner Style: Corner Radius
    • Corner Style: Square EndCorner Style: Square End

    Features and benefits

    • Versatile solid carbide end mill for steels, stainless steel, cast iron and high temperature alloys
    • HARVI™ I solid carbide end mills cover a variety of operations, including dynamic milling
    • HARVI™ I solid carbide end mills features unequal flute spacing for chatter-free machining
    • Center cutting for plunging and ramping operations
