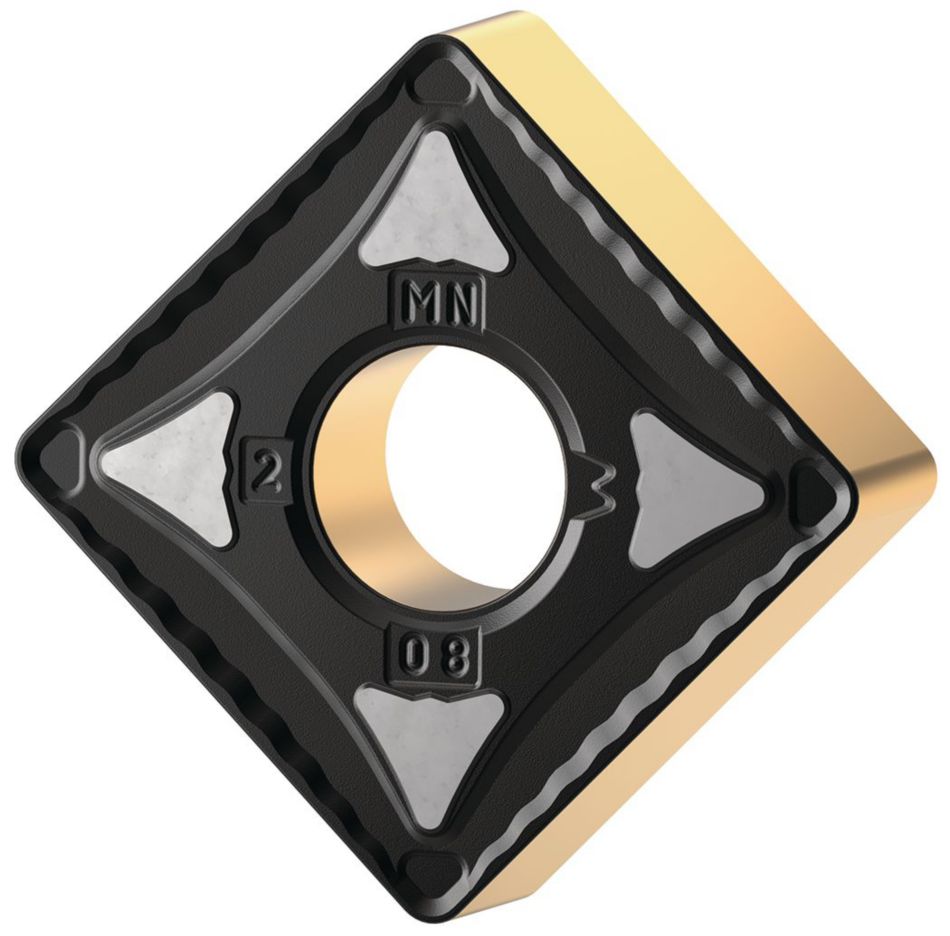

| Material Number | 7026437 |
| ISO Catalog ID | SNMG150616MN |
| ANSI Catalog ID | SNMG544MN |
| Grade | KCP25C |
| [D] Insert IC Size | 15.875 mm |
| [D] Insert IC Size | .625 in |
| [L10] Insert Cutting Edge Length | 15.875 mm |
| [L10] Insert Cutting Edge Length | .625 in |
| [S] Insert Thickness | 6.35 mm |
| [S] Insert Thickness | .25 in |
| [Rε] Corner Radius | 1.6 mm |
| [Rε] Corner Radius | .0625 in |
| [D1] Insert Hole Size | 6.35 mm |
| [D1] Insert Hole Size | .25 in |
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
