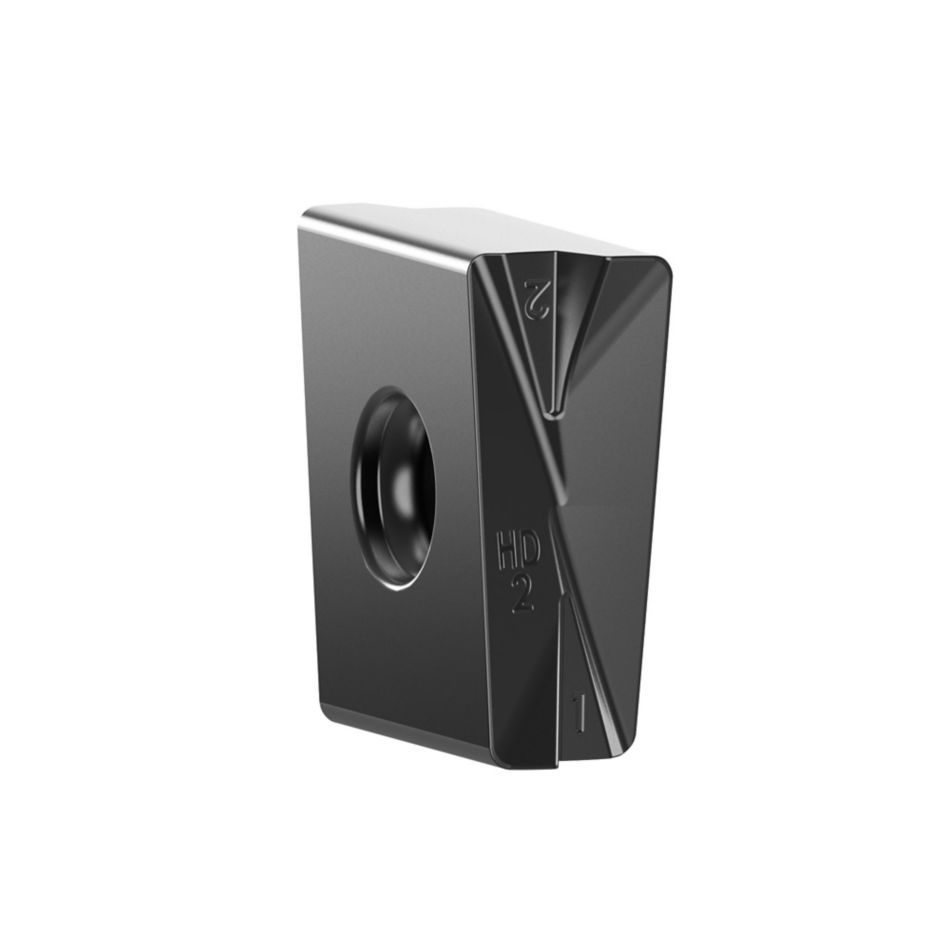

MEGA 15°/60°/90° • Heavy-Duty Face Milling Indexable Inserts
MEGA용 인서트 • 중황삭 • LNPU-HD
인서트
제품 번호5620157
ISO 카탈로그 IDLNPU221012PNSLHD2ANSI 카탈로그 IDLNPU763PNSLHD2
정가
$55.95/개당
할인
가격
/개당
재고 있음이 제품은 더 이상 사용할 수 없습니다.긴 배송기간
패키지로 판매 0최소 패키지 크기에 맞게 조정됩니다.
최소 수량: 0패키지 크기 요건을 충족하도록 조정됨.
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
MetricInch
| 제품 번호 | 5620157 |
| ISO 카탈로그 ID | LNPU221012PNSLHD2 |
| ANSI 카탈로그 ID | LNPU763PNSLHD2 |
| Grade | KCPK30 |

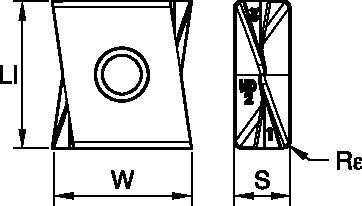

| [LI] Insert Length | 26.5 mm |
| [LI] Insert Length | 1.043 in |
| [BS] Corner Facet Length | 2.31 mm |
| [BS] Corner Facet Length | .091 in |
| [W] Insert Width | 25 mm |
| [W] Insert Width | .984 in |
| [Rε] Corner Radius | 1.2 mm |
| [Rε] Corner Radius | .047 in |
| [S] Insert Thickness | 10 mm |
| [S] Insert Thickness | .394 in |
| Average Chip Thickness [HM] | 0.229 mm |
| Average Chip Thickness [HM] | .009 in |
| Cutting Edges per Insert | 4 |
특징 및 장점
- Beyond™ KCPM40™ milling grade.
- Best-in-class solution for toughest steel milling jobs.
- Boosts your performance with a new PVD multilayer AlCrN-TiAlN coating.
이송 및 속도를 계산하려면 솔루션을 생성하세요.
솔루션 생성 후 이송 및 속도 아이콘을 선택하면 추천 값이 제공됩니다. 기계와 사양을 추가하여 사용자 정보를 지정하거나 슬라이더를 사용하여 조정할 수 있습니다.
인서트 선택
Insert Selection Guide
| Material Group | Light | General | Heavy | |||
| – | (Light geometry) | (Strong geometry) | ||||
| – | wear |  | toughness | |||
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .S..HD | KC725M | .S..HD | KCPM40 | .S..HD2 | KCPM40 |
| P3–P4 | .S..HD | KCPK30 | .S..HD2 | KCPK30 | .S..HD2 | KCPM40 |
| P5–P6 | .S..HD | KC725M | .S..HD2 | KCPK30 | .S..HD2 | KCPM40 |
| M1–M2 | .S..HD | KC725M | .S..HD2 | KCSM40 | .S..HD2 | KCPM40 |
| M3 | .S..HD | KCPM40 | .S..HD2 | KCSM40 | .S..HD2 | KCPM40 |
| K1–K2 | .S..HD | KC520M | .S..HD | KCK15 | .S..HD2 | KC520M |
| K3 | .S..HD | KC520M | .S..HD | KCK15 | .S..HD2 | KC520M |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | .S..HD | KC725M | .S..HD | KC725M | .S..HD2 | KCSM40 |
| S3 | .S..HD | KCPM40 | .S..HD2 | KCSM40 | .S..HD2 | KCPM40 |
| S4 | .S..HD | KC725M | .S..HD2 | KCSM40 | .S..HD2 | KCSM40 |
| H1 | – | – | – | – | – | – |
자세히 읽기View Less
이송량
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .S..HD | .009 | .023 | .037 | .007 | .017 | .026 | .005 | .013 | .020 | .004 | .011 | .017 | .004 | .010 | .016 | .S..HD |
| .S..HD2 | .009 | .023 | .041 | .007 | .017 | .029 | .005 | .013 | .022 | .004 | .011 | .019 | .004 | .010 | .018 | .S..HD2 |
| Light | General | Heavy |
자세히 읽기View Less
속도
| Material Group | KC520M | KC725M | KCK15 | KCPK30 | KCPM40 | |||||||||||
| P | 1 | – | – | – | 860 | 750 | 700 | – | – | – | 1485 | 1300 | 1210 | 980 | 850 | 820 |
| 2 | – | – | – | 720 | 630 | 530 | – | – | – | 920 | 830 | 750 | 820 | 720 | 590 | |
| 3 | – | – | – | 660 | 560 | 460 | – | – | – | 830 | 750 | 680 | 750 | 660 | 520 | |
| 4 | – | – | – | 590 | 490 | 390 | – | – | – | 620 | 575 | 520 | 690 | 560 | 460 | |
| 5 | – | – | – | 490 | 440 | 390 | – | – | – | 850 | 760 | 690 | 560 | 520 | 460 | |
| 6 | – | – | – | 430 | 330 | 260 | – | – | – | 520 | 450 | – | 490 | 390 | 300 | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 660 | 560 | 520 |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | 590 | 490 | 430 | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 430 | 390 | 300 | |
| K | 1 | 880 | 800 | 710 | – | – | – | 1380 | 1255 | 1115 | 965 | 875 | 780 | – | – | – |
| 2 | 690 | 620 | 580 | – | – | – | 1095 | 975 | 910 | 770 | 690 | 630 | – | – | – | |
| 3 | 580 | 520 | 470 | – | – | – | 920 | 815 | 750 | 645 | 575 | 530 | – | – | – | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | 130 | 130 | 100 |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | 130 | 130 | 100 | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 160 | 130 | 100 | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | 230 | 160 | 130 | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
자세히 읽기View Less
