    Chamfer Mill • End Mills 60° • Metric

    End Mills

    Material Number1024605

    ISO Catalog ID32C3R038B32SSP12ANSI Catalog ID32C3R038B32SSP12

    Chamfer Mill - End Mills 60° - Metric 1024605 - Kennametal
    Chamfer Mill - End Mills 60° - Metric 1024605 - Kennametal
    Chamfer Mill - End Mills 60° - Metric 1024605 - Kennametal
    Open expanded view
    Chamfer Mill - End Mills 60° - Metric 1024605 - Kennametal
    Chamfer Mill - End Mills 60° - Metric 1024605 - Kennametal
    Generic representation
    List Price
    $456.77/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • P Steel
    • M Stainless Steel
    • K Cast Iron
    • N Non-Ferrous
    • S High-Temp Alloys
    • Face MillingFace Milling
    • Side Milling/Shoulder Milling: Eased ChamferSide Milling/Shoulder Milling: Eased Chamfer
    • Shank - Cylindrical Weldon 2 FlatShank - Cylindrical Weldon 2 Flat
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

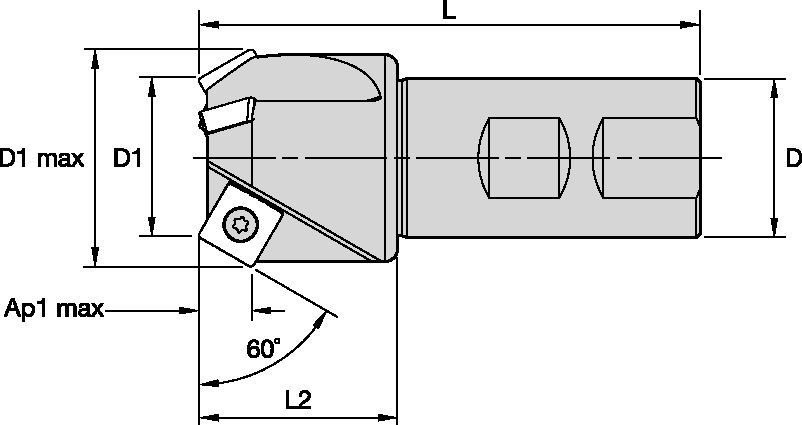

    Drawings for 1024605
    Metric
    Inch
    Material Number1024605
    ISO Catalog ID32C3R038B32SSP12
    ANSI Catalog ID32C3R038B32SSP12
    [D1] Effective Cutting Diameter32 mm
    [D1] Effective Cutting Diameter1.259 in
    [D1MAX] Maximum Cutting Diameter44 mm
    [D1MAX] Maximum Cutting Diameter1.732 in
    [D] Adapter / Shank / Bore Diameter32 mm
    [D] Adapter / Shank / Bore Diameter1.259 in
    [L] Overall Length 101 mm
    [L] Overall Length 3.976 in
    [L2] Head Length 40 mm
    [L2] Head Length 1.575 in
    [AP1MAX] 1st Maximum Cutting Depth10 mm
    [AP1MAX] 1st Maximum Cutting Depth.394 in
    Number of Inserts3
    Max RPM14670
    Gage InsertSP__1204___
    See all Product Variants

    Workpiece Materials

    • Steel
    • Stainless Steel
    • Cast Iron
    • Non-Ferrous
    • High-Temp Alloys

    Uses and application

    • Face MillingFace Milling
    • Side Milling/Shoulder Milling: Eased ChamferSide Milling/Shoulder Milling: Eased Chamfer
    • Shank - Cylindrical Weldon 2 FlatShank - Cylindrical Weldon 2 Flat

    Features and benefits

    • 60° countersinking and chamfering cutter.

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    Insert Selection

    View MoreView Less

    Feeds

    View MoreView Less

    Speeds

    View MoreView Less

    CAD Drawings Models

    Can’t find the file type you’re looking for?

    Product data

    SDS

    Safety Data Sheets

    I have read and accepted the Terms & Conditions of use

    Create Solution to find the perfect compatible parts for your tool.

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    TG150 Series • Metric
    TG150 Series • Metric
    1014945
    150TG320M
    150TG320M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    End Mill Adapter • HSKA63A • Metric
    End Mill Adapter • HSKA63A • Metric
    1126012
    HSK63AEM32110M
    HSK63AEM32110M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    End Mill Adapter • HSKA63A • Metric
    End Mill Adapter • HSKA63A • Metric
    1126304
    HSK100AEM32100M
    HSK100AEM32100M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    EM MM-BT Form AD
    EM MM-BT Form AD
    1156359
    BT40EM32110M
    BT40EM32110M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    EM MM-BT Form AD
    EM MM-BT Form AD
    1156369
    BT50EM32105M
    BT50EM32105M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    End Mill Adapter • DV40 • Metric
    End Mill Adapter • DV40 • Metric
    1156388
    DV50BEM32100M
    DV50BEM32100M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    End Mill Adapter • DV40 • Metric
    End Mill Adapter • DV40 • Metric
    1237816
    DV40BEM32100M
    DV40BEM32100M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    SEM MM-DV form B/AD
    SEM MM-DV form B/AD
    1263822
    DV40BSEM32070M
    DV40BSEM32070M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    EM • End Mill Adapters
    EM • End Mill Adapters
    1714890
    KM63XMZEM3290Y
    KM63XMZEM3290Y
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    End Mill Adapter • HSKA63A • Metric
    End Mill Adapter • HSKA63A • Metric
    1727209
    HSK80AEM32110M
    HSK80AEM32110M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Create Solution to find the perfect compatible parts for your tool.

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID
    Grade

    Inserts for Chamfer Mills • SP..12..
    Inserts for Chamfer Mills • SP..12..
    1157887
    SPMT120408
    SPMT432
    KC725M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Inserts for Chamfer Mills • SP..12..
    Inserts for Chamfer Mills • SP..12..
    1157942
    SPMT120408
    SPMT432
    K313
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Inserts for Chamfer Mills • SP..12..
    Inserts for Chamfer Mills • SP..12..
    1157953
    SPMT120408
    SPMT432
    KC850
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Inserts for Chamfer Mills • SPCW12..
    Inserts for Chamfer Mills • SPCW12..
    1180956
    SPCW120408
    SPCW432
    KC725M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Inserts for Chamfer Mills • SPCW12..-T
    Inserts for Chamfer Mills • SPCW12..-T
    1180957
    SPCW120408T
    SPCW432T
    KC725M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Inserts for Chamfer Mills • SPCW12..
    Inserts for Chamfer Mills • SPCW12..
    1181166
    SPCW120408
    SPCW432
    KC730
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Inserts for Chamfer Mills • SP..12..
    Inserts for Chamfer Mills • SP..12..
    1556758
    SPMT120408
    SPMT432
    KC715M
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Inserts for Chamfer Mills • SP..12..
    Inserts for Chamfer Mills • SP..12..
    2210037
    SPMT120408
    SPMT432
    KCPK30
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Inserts for Chamfer Mills • SPCW12..-T
    Inserts for Chamfer Mills • SPCW12..-T
    2210108
    SPCW120408T
    SPCW432T
    KCPK30
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Inserts for Chamfer Mills • SPCW12..
    Inserts for Chamfer Mills • SPCW12..
    2220326
    SPCW120408
    SPCW432
    KCK15
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    INSERT SCR M4.5-0.75 x 11.5 T15
    INSERT SCR M4.5-0.75 x 11.5 T15
    1021333
    MS1129
    MS1129
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    TORX-SCREWDRIVER DT15
    TORX-SCREWDRIVER DT15
    1022493
    DT15
    DT15
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    You are about to add to your My Solutions page. Do you want to proceed?
    Select the destination where you want to move to.
    New Folder
      • Applied Filters:
      • Clear All

    A folder with the name already exists.

    Please enter a valid name
    product-image
    Please adjust the following properties from

    ISO Catalog Number

    ANSI Catalog Number

    to find similar products.

    The following files are available

    Please select a file to download

    Models

    Product data

    I have read and accepted the Terms & Conditions of use

    Can’t find the file type you’re looking for?

    You should be logged to see your dashboard information
    Session expired due to inactivity, please login again
    The product/s () you were trying to add to the cart is/are not available, please contact customer service
    item(s) successfully added to the cart
    View Cart

    . Please enter the desired qty for the material(s) you want to include in your promotion or Proceed Without Promotion and only your base materials will be added to the cart.

    Minimum quantity should be

    SAP Material NumberISO Catalog NumberGrade

    You are about to leave the Solution building process.

    Are you sure you want to leave?
