Arrosage interne : Admission de lubrifiant, AD & B mixtesDownloaded file will be available after import in the {{cadTool}} tool library.
| Numéro de matériel | 1749286 |
| Ref. ISO Catalogue | BT50BHTS40080M |
| Ref. ANSI Catalogue | BT50BHTS40080M |

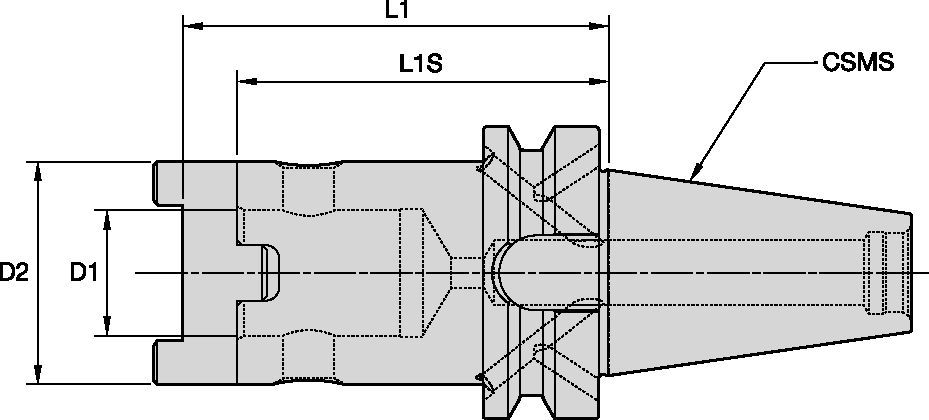

| [CSMS] Dimension du système Côté machine | BT50 |
| Taille de l’accouplement côté pièce à usiner | 40 |
| [D2] Diamètre du corps 1 Côté pièce à usiner | 70 mm |
| [D2] Diamètre du corps 1 Côté pièce à usiner | 2.755 in |
| [L1] Longueur de référence | 94 mm |
| [L1] Longueur de référence | 3.7 in |
| [L1S] Longueur de l’outil secondaire | 80 mm |
| [L1S] Longueur de l’outil secondaire | 3.149 in |
| Couple Newton mètres | 34 |
| Couple Livres Pied | 26 |
Arrosage interne : Admission de lubrifiant, AD & B mixtesCréez une Solution pour calculer les avances et vitesses
Après avoir créé une Solution, choisissez simplement l'icône "Avances et Vitesses" et notre système vous fournira ses recommandations. Vous pouvez les personnaliser en ajoutant votre machine et vos spécifications techniques, ou en ajustant votre demande à l'aide des curseurs.
| d3 | d4 | d5 | d6 | l1 | l2 | l3 | t1 | t2 | b | r | f1 | f2 |
| 25 | 13 | 8,50 | 6,5 | 35 | 22,0 | 7,00 | 6,7 | 6,50 | 8,0 | 3 | 0,5 | 0,5 |
| 28 | 13 | 8,50 | 6,5 | 35 | 22,0 | 7,00 | 7,0 | 6,50 | 8,0 | 3 | 0,5 | 0,5 |
| 32 | 16 | 8,30 | 6,5 | 40 | 24,0 | 7,50 | 8,5 | 7,50 | 8,0 | 3 | 0,5 | 0,5 |
| 40 | 22 | 10,50 | 7,0 | 45 | 25,0 | 8,50 | 11,5 | 10,00 | 10,0 | 3 | 0,5 | 0,5 |
| 48 | 27 | 12,75 | 9,0 | 50 | 27,0 | 9,00 | 14,0 | 12,00 | 12,0 | 3 | 1,0 | 1,0 |
| 58 | 32 | 11,50 | 9,0 | 50 | 29,0 | 10,00 | 16,5 | 7,25 | 14,0 | 3 | 1,0 | 1,0 |
| 70 | 40 | 15,25 | 12,2 | 55 | 30,0 | 10,50 | 20,5 | 10,00 | 16,0 | 3 | 1,0 | 1,0 |
| 80 | 50 | 15,25 | 12,2 | 60 | 36,0 | 12,50 | 25,5 | 12,50 | 18,0 | 4 | 1,0 | 1,0 |
| 90 | 50 | 16,50 | 12,2 | 60 | 36,0 | 12,50 | 25,5 | 12,50 | 18,0 | 4 | 1,0 | 1,0 |
| 110 | 60 | 14,50 | 12,2 | 60 | 36,0 | 13,65 | 30,5 | 10,00 | 20,0 | 4 | 1,0 | 1,0 |
| 125 1) | 60 | 25,00 | 18,0 | 75 | 39,5 | 17,00 | 35,0 | 20,25 | 25,5 | 6 | 1,0 | 1,0 |
| 140 1) | 70 | 25,00 | 18,0 | 80 | 39,5 | 17,00 | 42,0 | 20,25 | 25,5 | 6 | 1,0 | 1,0 |
| 160 1) | 80 | 25,00 | 18,0 | 80 | 39,5 | 17,00 | 42,0 | 20,25 | 25,5 | 6 | 1,0 | 1,0 |
 |  |  |  |  | |||||||||||
| d3 | d4 | l1 | l2 | l3 | M | b | r | f1 | f2 | entraineur | vis de serrage | filetage | MAn* Nm | patin | vis de serrage M 12 x 25 pour patin |
| 25 | 13 | 28 | 12,4 | 7,0 | M8 x 1,0 | 8,0 | 3 | 0,5 | 0,5 | 193.371 | 193.372 | M8 x 1,0 | 10 | – | – |
| 28 | 13 | 28 | 12,4 | 7,0 | M8 x 1,0 | 8,0 | 3 | 0,5 | 0,5 | 192,419 | 193,372 | M8 x 1,0 | 10 | – | – |
| 32 | 16 | 32 | 14,4 | 7,5 | M8 x 1,0 | 8,0 | 3 | 0,5 | 0,5 | 192,420 | 192,156 | M8 x 1,0 | 10 | – | – |
| 40 | 22 | 35 | 13,4 | 8,5 | M10 x 1,0 | 10,0 | 3 | 0,5 | 0,5 | 192.421 | 192.157 | M10 x 1,0 | 16 | – | – |
| 48 | 27 | 40 | 15,4 | 9,0 | M12 x 1,0 | 12,0 | 3 | 1,0 | 1,0 | 192.422 | 191.727 | M12 x 1,0 | 16 | – | – |
| 58 | 32 | 38 | 15,4 | 10,0 | M12 x 1,0 | 14,0 | 3 | 1,0 | 1,0 | 192.423 | 191.727 | M12 x 1,0 | 20 | – | – |
| 70 | 40 | 43 | 16,4 | 10,0 | M16 x 1,5 | 16,0 | 3 | 1,0 | 1,0 | 192.424 | 191.728 | M16 x 1,5 | 34 | – | – |
| 80 | 50 | 46 | 20,4 | 12,5 | M16 x 1,5 | 18,0 | 4 | 1,0 | 1,0 | 192.425 | 191.728 | M16 x 1,5 | 34 | – | – |
| 90 | 50 | 46 | 20,4 | 12,5 | M16 x 1,5 | 18,0 | 4 | 1,0 | 1,0 | 192.426 | 191.729 | M16 x 1,5 | 34 | – | – |
| 110 | 60 | 46 | 20,4 | 12,5 | M16 x 1,5 | 20,0 | 4 | 1,0 | 1,0 | 192.427 | 191.729 | M16 x 1,5 | 34 | – | – |
| 125 1) | 60 | 77 | 40,0 | 12,5 | M24 x 2,0 | 25,5 | 4 | 1,0 | 1,0 | – | 193.107 | M24 x 2,0 | 120 | 191.019 | 125.225 |
| 140 1) | 70 | 82 | 40,0 | 12,5 | M24 x 2,0 | 25,5 | 4 | 1,0 | 1,0 | – | 193.107 | M24 x 2,0 | 120 | 191.019 | 125.225 |
| 160 1) | 80 | 82 | 40,0 | 12,5 | M24 x 2,0 | 25,5 | 4 | 1,0 | 1,0 | – | 193.107 | M24 x 2,0 | 120 | 191.019 | 125.225 |
