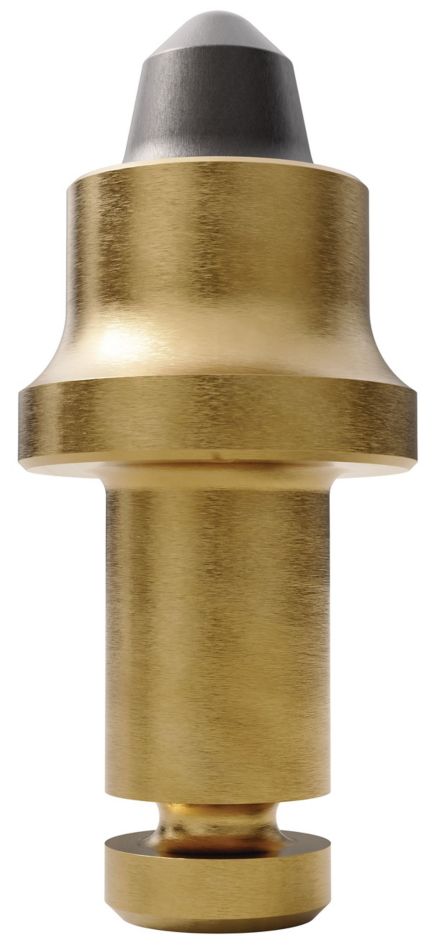

    Rotating Tungsten Carbide Pick • 14mm (.55 in) Shank

    External Retainer for Maximum Attachment • Cap Tip for Abrasive Conditions

    Material Number1795208

    ISO Catalog IDCM63ANSI Catalog IDCM63

    Small-Conical-CM63 Trenching - 1795208 - Kennametal
    Small-Conical-CM63 Trenching - 1795208 - Kennametal
    Small-Conical-CM63 Trenching - 1795208 - Kennametal
    Open expanded view
    Small-Conical-CM63 Trenching - 1795208 - Kennametal
    Small-Conical-CM63 Trenching - 1795208 - Kennametal
    Generic representation
    List Price
    $14.49/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
      This export format is not yet supported for this category.

      Sending to {{cadTool}} in progress...

      Downloaded file will be available after import in the {{cadTool}} tool library.

      Drawings for 1795208
      Metric
      Inch
      Material Number1795208
      ISO Catalog IDCM63
      ANSI Catalog IDCM63
      GradeK706
      Point Included Angle [SIGMA]90
      [SIGMAb] Second Point Includ Angle22
      [TD] Tip Diameter15.875 mm
      [TD] Tip Diameter0.625 in
      [TL] Tip Length13.716 mm
      [TL] Tip Length0.54 in
      [L1] Gage Length29.21 mm
      [L1] Gage Length1.15 in
      [D2] Body Diameter Workpiece Side24.892 mm
      [D2] Body Diameter Workpiece Side0.98 in
      [D] Shank/Bore Diameter13.97 mm
      [D] Shank/Bore Diameter0.55 in
      [LRO] Retainer Offset Length19.812 mm
      [LRO] Retainer Offset Length0.78 in
      [LS] Shank Length 27.432 mm
      [LS] Shank Length 1.08 in
      [OAL] Overall Length56.642 mm
      [OAL] Overall Length2.23 in
      See all Product Variants

      I have read and accepted the Terms & Conditions of use

      CAD Drawings Models

      Can’t find the file type you’re looking for?

      Product data

      SDS

      Safety Data Sheets
      Create Solution to find the perfect compatible parts for your tool.

      Product Name
      Material Number
      ISO Catalog ID
      ANSI Catalog ID

      CMB6
      CMB6
      1321008
      CMB6
      CMB6
