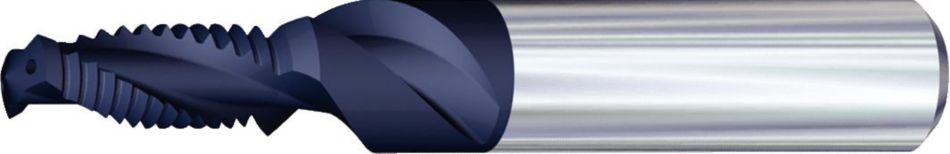

    TM731 • Thread Mill, Chamfer and Drill • ISO Coarse and Fine • Plain Shank • Through Coolant

    Solid carbide thread mill, chamfer and drill for multiple materials

    Material Number100004665

    TM731 • Thread Mill, Chamfer and Drill • ISO Coarse and Fine • Plain Shank • Through Coolant
    TM731 • Thread Mill, Chamfer and Drill • ISO Coarse and Fine • Plain Shank • Through Coolant
    TM731 • Thread Mill, Chamfer and Drill • ISO Coarse and Fine • Plain Shank • Through Coolant
    Open expanded view
    TM731 • Thread Mill, Chamfer and Drill • ISO Coarse and Fine • Plain Shank • Through Coolant
    TM731 • Thread Mill, Chamfer and Drill • ISO Coarse and Fine • Plain Shank • Through Coolant

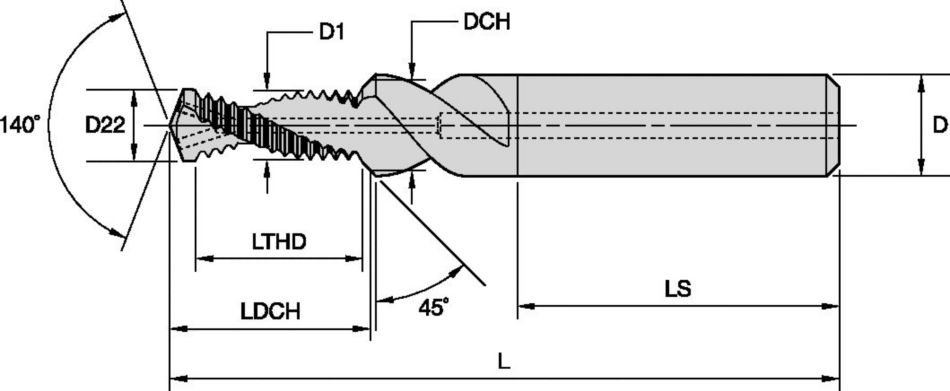

    Generic representation
    Contact our sales team to discover all of your pricing options

    Features and benefits

    • Drill, thread and chamfer.
    • Interrupted cut.
    • Short chips.
    • Optimized carbide grades.
    • Versatile.
    • Better surface quality.
    • No need to reverse the spindle.
    • More production safety.
    • Threading: Through HoleThreading: Through Hole
    • Threading: Blind HoleThreading: Blind Hole
    • Counter Sinking/ Stroke ChamferingCounter Sinking/ Stroke Chamfering
    • Through Coolant: Axial: TappingThrough Coolant: Axial: Tapping
    • HMHM
    • Drilling Depth: 2xDrilling Depth: 2x
    • Manufacturer’s Specs: MManufacturer’s Specs: M
    • Manufacturer’s Specs: MFManufacturer’s Specs: MF
    • Drilling: BlindDrilling: Blind
    shank tolerance
    Dtolerance h6 + / -
    6+0, -0,008
    8 10+0, -0,009
    12 18+0, -0,011
    20 30+0, -0,013

    Application Data

    Material Groupproduct data image 45352
    Drill, Chamfer, and Thread Mill TM731
    Cutting Speed vcDrillingMilling
    Recommended Feed by DiameterFeed/Tooth by Diameter
    Range m/min
    MinStarting ValueMax– 6mm6 10mm10 16mm– 6mm6 10mm10 16mm
    K1130175230mm/r0,100,160,30mm/r0,050,070,10
    N2270300330mm/r0,150,250,34mm/r0,060,080,12
    3140150170mm/r0,150,250,34mm/r0,060,080,12
    4270300330mm/r0,150,250,34mm/r0,060,080,12
    5110120130mm/r0,120,200,32mm/r0,060,080,12
    product data image 45352
    Drill, Chamfer, and Thread Mill TM731
    DrillingMilling
    Cutting Speed vc
    Range m/minRecommended Feed by DiameterFeed/Tooth by Diameter
    Material GroupMinStarting ValueMax– 6 mm6-10 mm10-16 mm– 6 mm6-10 mm10-16 mm
    K1130175230mm/dev0,100,160,30mm/dev0,050,070,10
    2270300330mm/dev0,150,250,34mm/dev0,060,080,12
    N3140150170mm/dev0,150,250,34mm/dev0,060,080,12
    4270300330mm/dev0,150,250,34mm/dev0,060,080,12
    5110120130mm/dev0,120,200,32mm/dev0,060,080,12
