    Mill 1-10™ • Carbide Insert • EDCT-LD • Light Machining

    Shoulder milling insert with two cutting edges per insert, precision ground

    Material Number3684828

    ISO Catalog IDEDCT10T331PDERLDANSI Catalog IDEC1031ELD

    Inserts for Mill 1-10™ - EDCT-LD 3684828 - Kennametal
    Inserts for Mill 1-10™ - EDCT-LD 3684828 - Kennametal
    Inserts for Mill 1-10™ - EDCT-LD 3684828 - Kennametal
    Inserts for Mill 1-10™ - EDCT-LD 3684828 - Kennametal
    Inserts for Mill 1-10™ - EDCT-LD 3684828 - Kennametal
    Open expanded view
    Inserts for Mill 1-10™ - EDCT-LD 3684828 - Kennametal
    Inserts for Mill 1-10™ - EDCT-LD 3684828 - Kennametal
    Inserts for Mill 1-10™ - EDCT-LD 3684828 - Kennametal+0
    Inserts for Mill 1-10™ - EDCT-LD 3684828 - Kennametal
    Generic representation
    List Price
    $25.64/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • P Steel
    • M Stainless Steel
    • S High-Temp Alloys
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

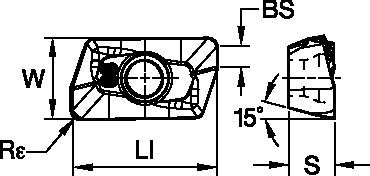

    Drawings for 3684828
    Metric
    Inch
    Material Number3684828
    ISO Catalog IDEDCT10T331PDERLD
    ANSI Catalog IDEC1031ELD
    GradeKC725M
    [LI] Insert Length 11.516 mm
    [LI] Insert Length .4534 in
    [S] Insert Thickness3.75 mm
    [S] Insert Thickness.148 in
    [W] Insert Width 6.714 mm
    [W] Insert Width .2643 in
    [Rε] Corner Radius 3.1 mm
    [Rε] Corner Radius .122 in
    Average Chip Thickness [HM]0.038 mm
    Average Chip Thickness [HM].0015 in
    Cutting Edges per Insert2
    See all Product Variants

    Workpiece Materials

    • Steel
    • Stainless Steel
    • High-Temp Alloys

    Grades

    KC725M

    KC725M

    Coated carbide grade with an advanced PVD TiAlN coating. KC725M is a high-performance grade for milling steel, stainless steel, and high-temperature alloys. The good thermal shock resistance of the substrate makes this grade ideal for both wet and dry machining. Primarily for use in general and heavy machining.

    Features and benefits

    • Precision ground insert for best surface finish

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    Insert Selection

    View MoreView Less

    CAD Drawings Models

    Can’t find the file type you’re looking for?

    Product data

    SDS

    Safety Data Sheets
