PCD Tool
Face MillingDownloaded file will be available after import in the {{cadTool}} tool library.
| Ürün Numarası | 6044712 |
| ISO Katalog No | KBDM500SD16 |
| ANSI Catalog No | KBDM500SD16 |

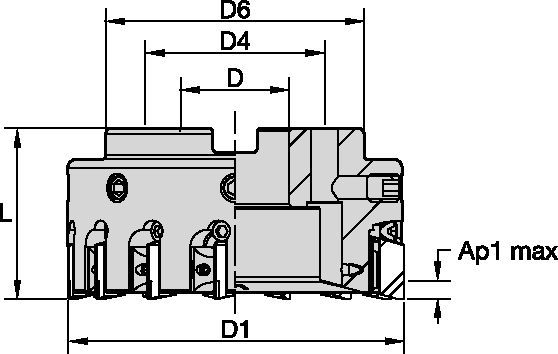

| [D1] Effective Cutting Diameter | 127 mm |
| [D1] Effective Cutting Diameter | 5 in |
| [D] Adapter / Shank / Bore Diameter | 38.1 mm |
| [D] Adapter / Shank / Bore Diameter | 1.5 in |
| [D6] Hub Diameter | 96.825 mm |
| [D6] Hub Diameter | 3.812 in |
| [L] Overall Length | 60.325 mm |
| [L] Overall Length | 2.375 in |
| Number of Inserts | 16 |
| Number of Adjustable Inserts | 16 |
| Weight Pounds | 4.4 |
| Max RPM | 15500 |
PCD ToolFace Millingİlerleme ve Devir hesaplamak için Çözüm Oluşturun
Bir çözüm oluşturduktan sonra, sadece İlerleme ve Devir simgesini seçin ve sistemimiz öneriler sunacaktır. Makinenizi ve teknik özelliklerinizi ekleyerek bilgileri özelleştirebilir veya kaydırıcıları kullanarak ayarlamalar yapabilirsiniz.

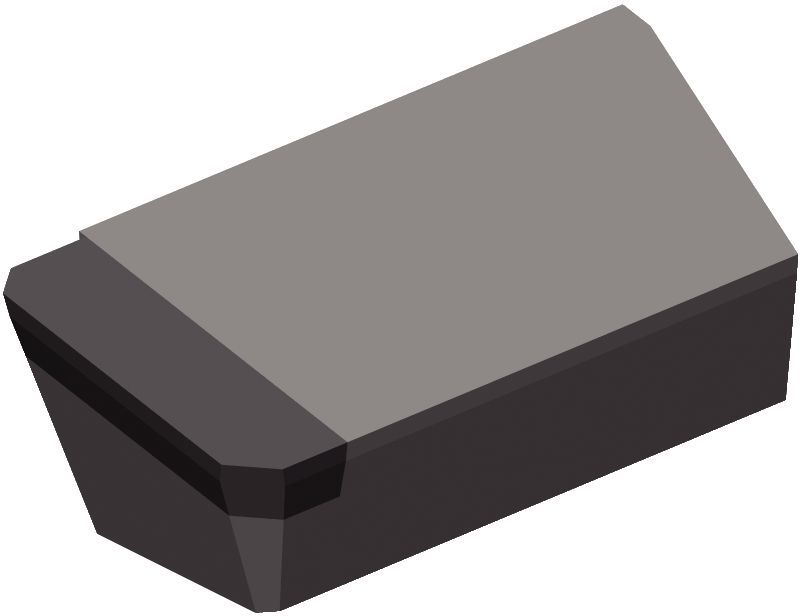

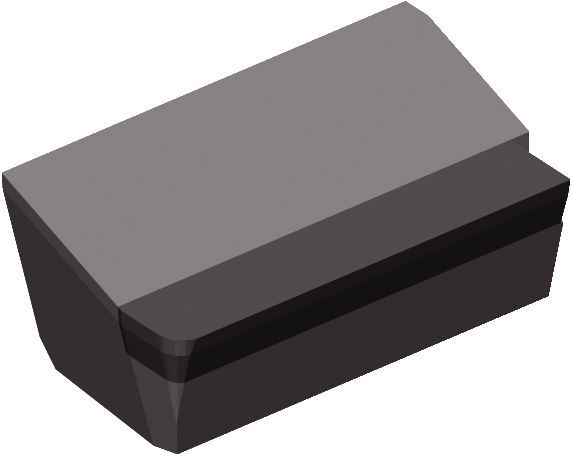

| Malzeme grubu | KD1400 | KD1425 | |||||
| P | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| K | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| N | 1–2 | 910 | 1980 | 4880 | 910 | 1980 | 4880 |
| 3 | 460 | 610 | 760 | 460 | 610 | 760 | |
| S | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – |
| Malzeme grubu | KD1400 | KD1425 | |||||
| P | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| K | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| N | 1–2 | 3000 | 6500 | 16000 | 3000 | 6500 | 16000 |
| 3 | 1500 | 2000 | 2500 | 1500 | 2000 | 2500 | |
| S | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – |
| Malzeme grubu | Hafif işleme | Genel amaçlı kullanım | Ağır işleme | |||
| (Hafif geometri) | (Sert geometri) | |||||
| Aşınma direnci |  | Tokluk | ||||
| Geometri | Kalite | Geometri | Kalite | Geometri | Kalite | |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | – | – | – | – | – | – |
| K3 | – | – | – | – | – | – |
| N1–N2 | .KSDR….. | KD1400 | .KSDR….. | KD1400 | .KSDR….. | KD1400 |
| N3 | .KSDR….. | KD1400 | .KSDR….. | KD1425 | .KSDR….. | KD1425 |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
