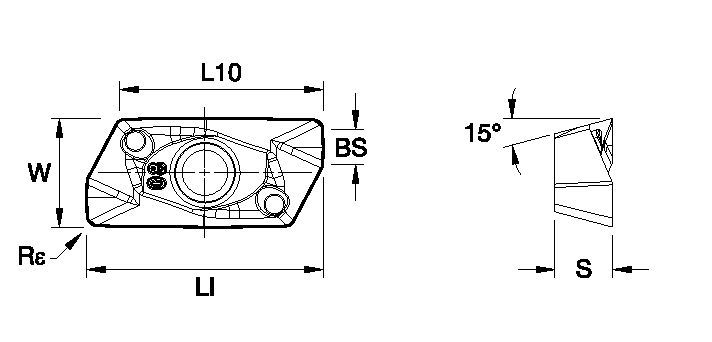

Mill 1-14™ • Carbide Insert • EDCT-E.LDJ • Light Machining of Aluminum
Shoulder milling insert with two cutting edges per insert, precision ground
Features and benefits
- Precision ground insert with polished rake face.
Insert Selection Guide
Material | Light | Medium | Heavy | |||
P1–P2 | .E..GD | KCPM40 | .S..GD2 | KCPM40 | .E..HD2 | KCPM40 |
P3–P4 | .E..GD | KCPM40 | .S..GD2 | KCPK30 | .E..HD2 | KCPK30 |
P5–P6 | .E..GD | KC725M | .S..GD2 | KC725M | .E..HD2 | KC725M |
M1–M2 | .E..LD | KC522M | .E..GD | KCSM40 | .E..HD2 | KC522M |
M3 | .E..GD | KCSM40 | .S..GD2 | KCPM40 | .E..HD2 | KCPM40 |
K1–K2 | .S..GD2 | KCK20B | .E..HD2 | KCK20B | .E..HD2 | KCK15 |
K3 | .S..GD2 | KCK20B | .E..HD2 | KCK20B | .E..HD2 | KCK15 |
N1–N2 | .F..LDJ | KC410M | .F..LDJ | KC410M | .E..LDJ | KC422M |
N3 | .F..LDJ | KC410M | .F..LDJ | KC410M | .E..LDJ | KC422M |
S1–S2 | .E..GD | KC725M | .S..GD2 | KC725M | .E..HD2 | KC725M |
S3 | .E..GD | KCSM40 | .S..GD2 | KC725M | .E..HD2 | KC725M |
S4 | .E..GD | KCSM40 | .S..GD2 | KC725M | .E..HD2 | KC522M |
H1 | – | – | – | – | – | – |
