Spiral Circular
Slotting: Shoulder
Planeado
Fresado helicoidal
Rectificado en rampa: Material en bruto
Mecanizado de alojamientos
Avellanado
Vaciado: Nariz de bola

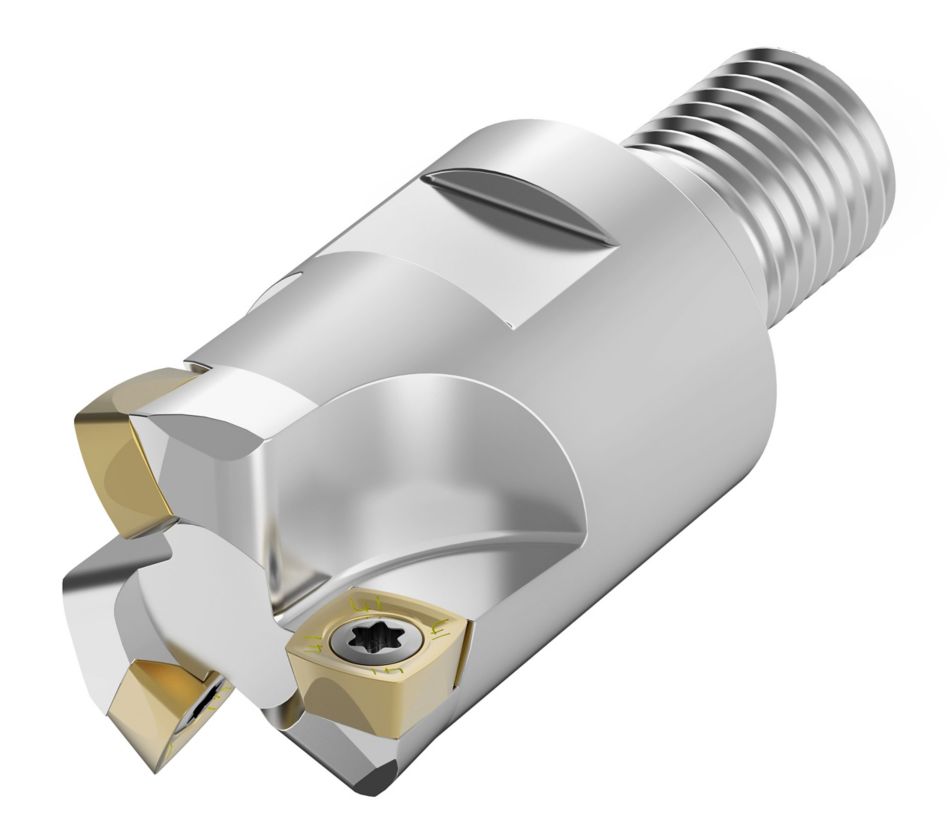

Inclined Square End MillDownloaded file will be available after import in the {{cadTool}} tool library.
| Número de material | 5659840 |
| Referencia ISO | A7792VXD09SA1.0Z2R1.4 |
| Referencia ANSI | A7792VXD09SA1.0Z2R1.4 |
| Calidad | S |
| Diámetro de corte máximo [D1MAX] | 25.2 mm |
| Diámetro de corte máximo [D1MAX] | .9921 in |
| Diámetro de corte efectivo [D1] | 12.379 mm |
| Diámetro de corte efectivo [D1] | .4874 in |
| Longitud de cabeza [L2] | 35 mm |
| Longitud de cabeza [L2] | 1.378 in |
| Tamaño de rosca de conexión externo [G3X] | M12 |
| Diámetro piloto Lateral de la máquina [DPM] | 12.488 mm |
| Diámetro piloto Lateral de la máquina [DPM] | .4917 in |
| 1.ª profundidad de corte máxima [AP1MAX] | 1.5 mm |
| 1.ª profundidad de corte máxima [AP1MAX] | .0591 in |
| Número de canales [Z] | 2 |
Spiral CircularSlotting: ShoulderPlaneadoFresado helicoidalRectificado en rampa: Material en brutoMecanizado de alojamientosAvellanadoVaciado: Nariz de bolaInclined Square End MillCrear una solución para calcular la velocidad y el avance
Después de crear una solución, sólo tiene que elegir el icono Avance y Velocidad y nuestro sistema le ofrecerá recomendaciones. Puede personalizar la información añadiendo su máquina y especificaciones o realizar ajustes utilizando los controles deslizantes.
| 7792 Series • IC09 • Insert Selection Guide | ||||||
| Grupo de materiales | Mecanizado ligero | Aplicaciones generales | Mecanizado intensivo | |||
| – | (Geometría ligera) | – | (Geometría fuerte) | |||
| – | resistencia |  | tenacidad | |||
| – | Geometría | Calidad | Geometría | Calidad | Geometría | Calidad |
| P1-P2 | ...M41 | KCPM40 | …M41 | KCPM40 | …GP | KCPM40 |
| P3-P4 | ...M41 | KCPM40 | …D411 | SP6519 | …D41 | KCPM40 |
| P5-P6 | ...M41 | KCPM40 | ...D41 | SP6519 | ...D41 | X500 |
| M1-M2 | ...M41 | KCSM40 | ...D411 | KCSM40 | ...D41 | KCSM40 |
| M3 | ...M41 | KCSM40 | ...D41 | KCSM40 | ...D41 | KCSM40 |
| K1-K2 | …M | KCK20B | …M | KCK20B | …D | KCPK30 |
| K3 | …M | KCK20B | …M | KCK20B | …D | KCPK30 |
| N1-N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1-S2 | ...M41 | X500 | ...D411 | KCSM40 | ...D41 | KCSM40 |
| S3 | ...M41 | X500 | ...D411 | KCSM40 | ...D41 | KCSM40 |
| S4 | ...M41 | X500 | ...D411 | KCSM40 | ...D41 | KCSM40 |
| H1 | …M | KCKP10 | …M | KCKP10 | …D | KCPM40 |
| 7792 Series • IC09 • Recommended Starting Feeds [mm/th] | |||||||
| Geometría de plaquita | Avance inicial recomendado por diente (Fz) en relación con % de contacto radial (ae) | ||||||
| DOC | 30% | 40–100% | |||||
| (mm) | L | M | H | L | M | H | |
| .S..D | 1,5 | 0,25 | 0,55 | 0,88 | 0,23 | 0,50 | 0,80 |
| .S..D | 1,1 | 0,30 | 0,64 | 1,02 | 0,27 | 0,59 | 0,93 |
| .S..D | 0,9 | 0,33 | 0,71 | 1,12 | 0,30 | 0,64 | 1,03 |
| .E..D41 | 1,5 | 0,18 | 0,50 | 0,75 | 0,16 | 0,46 | 0,69 |
| .E..D41 | 1,1 | 0,21 | 0,58 | 0,87 | 0,19 | 0,53 | 0,80 |
| .E..D41 | 0,9 | 0,23 | 0,64 | 0,96 | 0,21 | 0,59 | 0,88 |
| .E..D411 | 1,5 | 0,18 | 0,50 | 0,75 | 0,16 | 0,46 | 0,69 |
| .E..D411 | 1,1 | 0,21 | 0,58 | 0,87 | 0,19 | 0,53 | 0,80 |
| .E..D411 | 0,9 | 0,23 | 0,64 | 0,96 | 0,21 | 0,59 | 0,88 |
| .S..GP | 1,5 | 0,25 | 0,55 | 0,89 | 0,23 | 0,51 | 0,81 |
| .S..GP | 1,1 | 0,30 | 0,64 | 1,03 | 0,27 | 0,59 | 0,94 |
| .S..GP | 0,9 | 0,33 | 0,71 | 1,14 | 0,30 | 0,65 | 1,04 |
| .S...M | 1,5 | 0,25 | 0,55 | 0,88 | 0,23 | 0,50 | 0,80 |
| .S...M | 1,1 | 0,30 | 0,64 | 1,02 | 0,27 | 0,59 | 0,93 |
| .S..M | 0,9 | 0,33 | 0,71 | 1,12 | 0,30 | 0,64 | 1,03 |
| .E..M41 | 1,5 | 0,18 | 0,50 | 0,75 | 0,16 | 0,46 | 0,69 |
| .E...M41 | 1,1 | 0,21 | 0,58 | 0,87 | 0,19 | 0,53 | 0,80 |
| .E..M41 | 0,9 | 0,23 | 0,64 | 0,96 | 0,21 | 0,59 | 0,88 |
| L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use Light Machining values as starting feed rate. | |||||||
| 7792 Series • IC09 • Recommended Starting Feeds [IPT] | |||||||
| Geometría de plaquita | Avance inicial recomendado por diente (Fz) en relación con % de contacto radial (ae) | ||||||
| DOC | 30% | 40–100% | |||||
| (Inch) | L | M | H | L | M | H | |
| .S..D | 0.06 | 0.010 | 0.022 | 0.035 | 0.009 | 0.020 | 0.032 |
| .S..D | 0.04 | 0.012 | 0.027 | 0.042 | 0.011 | 0.024 | 0.039 |
| .S..D | 0.03 | 0.014 | 0.031 | 0.049 | 0.013 | 0.028 | 0.044 |
| .E..D41 | 0.06 | 0.007 | 0.020 | 0.030 | 0.006 | 0.018 | 0.027 |
| .E..D41 | 0.04 | 0.009 | 0.024 | 0.036 | 0.008 | 0.022 | 0.033 |
| .E..D41 | 0.03 | 0.010 | 0.028 | 0.042 | 0.009 | 0.025 | 0.038 |
| .E..D411 | 0.06 | 0.007 | 0.020 | 0.030 | 0.006 | 0.018 | 0.027 |
| .E..D411 | 0.04 | 0.009 | 0.024 | 0.036 | 0.008 | 0.022 | 0.033 |
| .E..D411 | 0.03 | 0.010 | 0.028 | 0.042 | 0.009 | 0.025 | 0.038 |
| .S..GP | 0.06 | 0.010 | 0.022 | 0.035 | 0.009 | 0.020 | 0.032 |
| .S..GP | 0.04 | 0.012 | 0.026 | 0.042 | 0.011 | 0.024 | 0.038 |
| .S..GP | 0.03 | 0.014 | 0.030 | 0.048 | 0.013 | 0.028 | 0.044 |
| .S...M | 0.06 | 0.010 | 0.022 | 0.035 | 0.009 | 0.020 | 0.032 |
| .S...M | 0.04 | 0.012 | 0.027 | 0.042 | 0.011 | 0.024 | 0.039 |
| .S..M | 0.03 | 0.014 | 0.031 | 0.049 | 0.013 | 0.028 | 0.044 |
| .E..M41 | 0.06 | 0.007 | 0.020 | 0.030 | 0.006 | 0.018 | 0.027 |
| .E...M41 | 0.04 | 0.009 | 0.024 | 0.036 | 0.008 | 0.022 | 0.033 |
| .E..M41 | 0.03 | 0.010 | 0.028 | 0.042 | 0.009 | 0.025 | 0.038 |
| L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use Light Machining values as starting feed rate. | |||||||
| Mecanizado ligero | Aplicaciones generales | Mecanizado intensivo |
| 7792 Series • IC09 • Recommended Starting Feeds for Plunging [mm/th] | ||||
| Geometría de plaquita |  | Avance por diente programado (fz) | ||
| L | M | H | ||
| .S..D | 0,10 | 0,22 | 0,35 | |
| .E..D41 | 0,07 | 0,20 | 0,30 | |
| .E..D411 | 0,07 | 0,20 | 0,30 | |
| .S..GP | 0,10 | 0,22 | 0,35 | |
| .S..M | 0,10 | 0,22 | 0,35 | |
| .E..M41 | 0,07 | 0,20 | 0,30 | |
| L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use Light Machining values as starting feed rate. | ||||
| Mecanizado ligero | Aplicaciones generales | Mecanizado intensivo |
| 7792 Series • IC09 • Recommended Starting Feeds for Plunging [IPT] | ||||
| Geometría de plaquita | | Avance por diente programado (fz) | ||
| L | M | H | ||
| .S..D | 0.004 | 0.009 | 0.014 | |
| .E..D41 | 0.003 | 0.008 | 0.012 | |
| .E..D411 | 0.003 | 0.008 | 0.012 | |
| .S..GP | 0.004 | 0.009 | 0.014 | |
| .S..M | 0.004 | 0.009 | 0.014 | |
| .E..M41 | 0.003 | 0.008 | 0.012 | |
| L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use Light Machining values as starting feed rate. | ||||
| 7792 Series IC09 • Recommended Starting Speed [m/min] | ||||||||||||||||||||||||||||||||||
| Calidad | KC522M | KC725M | KCK15 | KCPK30 | KCKP10 | KCK20B | KCPM40 | KCSM40 | SP6519 | X400 | X500 | |||||||||||||||||||||||
| Grosor de viruta hex mm | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | ||||||||||||
| Grupo de materiales | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | |
| P | 1 | 330 | 285 | 270 | 260 | 230 | 215 | – | – | – | 455 | 395 | 370 | 300 | 295 | 260 | – | – | – | 295 | 260 | 245 | 350 | 320 | 300 | 295 | 215 | 130 | 260 | 190 | 120 | 270 | 200 | 130 |
| 2 | 275 | 240 | 200 | 220 | 190 | 160 | – | – | – | 280 | 255 | 230 | 310 | 275 | 240 | – | – | – | 250 | 215 | 180 | 300 | 270 | 220 | 260 | 190 | 115 | 230 | 170 | 105 | 240 | 280 | 115 | |
| 3 | 255 | 215 | 175 | 200 | 170 | 140 | – | – | – | 255 | 230 | 205 | 275 | 240 | 205 | – | – | – | 230 | 195 | 160 | 280 | 240 | 195 | 230 | 165 | 100 | 200 | 150 | 95 | 210 | 155 | 100 | |
| 4 | 225 | 185 | 150 | 180 | 150 | 120 | – | – | – | 225 | 185 | 160 | 240 | 205 | 160 | – | – | – | 205 | 170 | 135 | 240 | 205 | 165 | 175 | 125 | 75 | 150 | 110 | 70 | 160 | 120 | 75 | |
| 5 | 185 | 170 | 150 | 150 | 135 | 120 | – | – | – | 190 | 170 | 150 | 205 | 160 | 125 | – | – | – | 170 | 155 | 135 | 200 | 180 | 160 | 140 | 105 | 70 | – | – | – | 130 | 100 | 70 | |
| 6 | 165 | 125 | 100 | 130 | 100 | 80 | – | – | – | 160 | 135 | 110 | 160 | 125 | 110 | – | – | – | 150 | 115 | 90 | 180 | 140 | 100 | 120 | 85 | 50 | – | – | – | 110 | 80 | 50 | |
| M | 1 | 205 | 180 | 165 | 170 | 150 | 135 | – | – | – | 205 | 185 | 155 | – | – | – | – | – | – | 195 | 170 | 155 | 260 | 210 | 185 | 270 | 195 | 115 | – | – | – | 250 | 185 | 115 |
| 2 | 185 | 160 | 130 | 155 | 130 | 110 | – | – | – | 185 | 160 | 140 | – | – | – | – | – | – | 175 | 150 | 125 | 235 | 180 | 145 | 235 | 170 | 105 | – | – | – | 220 | 160 | 100 | |
| 3 | 140 | 120 | 95 | 115 | 100 | 80 | – | – | – | 145 | 130 | 115 | – | – | – | – | – | – | 130 | 115 | 90 | 175 | 145 | 110 | 195 | 140 | 85 | – | – | – | 180 | 130 | 80 | |
| K | 1 | 230 | 205 | 185 | – | – | – | 420 | 385 | 340 | 295 | 265 | 240 | 410 | 330 | 240 | 360 | 290 | 245 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | 180 | 160 | 150 | – | – | – | 335 | 295 | 275 | 235 | 210 | 190 | 280 | 245 | 190 | 280 | 230 | 195 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | 150 | 135 | 120 | – | – | – | 280 | 250 | 230 | 195 | 175 | 160 | 240 | 195 | 160 | 210 | 175 | 140 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| N | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | 40 | 35 | 25 | 35 | 30 | 25 | – | – | – | – | – | – | – | – | – | – | – | – | 40 | 35 | 30 | 50 | 40 | 25 | 55 | 40 | 20 | – | – | – | 45 | 35 | 25 |
| 2 | 40 | 35 | 25 | 35 | 30 | 25 | – | – | – | – | – | – | – | – | – | – | – | – | 40 | 35 | 30 | 55 | 40 | 25 | 45 | 35 | 20 | – | – | – | 45 | 30 | 20 | |
| 3 | 50 | 40 | 25 | 45 | 35 | 25 | – | – | – | – | – | – | – | – | – | – | – | – | 50 | 40 | 30 | 65 | 45 | 30 | 55 | 40 | 25 | – | – | – | 50 | 40 | 25 | |
| 4 | 50 | 45 | 35 | 50 | 45 | 30 | – | – | – | 50 | 45 | 35 | – | – | – | – | – | – | 55 | 50 | 35 | 75 | 60 | 40 | 80 | 55 | 35 | – | – | – | 60 | 50 | 35 | |
| H | 1 | 120 | 90 | 70 | – | – | – | – | – | – | – | – | – | 140 | 110 | 90 | – | – | – | – | – | – | – | – | – | – | – | – | 95 | 70 | 45 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 80 | 60 | 35 | – | – | – | |
| Recommended Starting Speed are pointing to 90° Shoulder Milling . Starting Speed for Face and Copy Milling can be Increased by 20 %. As the average chip thickness increases, speed should be decreased. Material groups P, M, K and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining. | ||||||||||||||||||||||||||||||||||
| 7792 Series IC09 • Recommended Starting Speed [SFM] | ||||||||||||||||||||||||||||||||||
| Calidad | KC522M | KC725M | KCK15 | KCPK30 | KCKP10 | KCK20B | KCPM40 | KCSM40 | SP6519 | X400 | X500 | |||||||||||||||||||||||
| Chip Thickness hex Inch | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | ||||||||||||
| Grupo de materiales | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Máx. | Inicio | Mín | |
| P | 1 | 1085 | 935 | 885 | 855 | 755 | 705 | – | – | – | 1495 | 1295 | 1215 | 985 | 970 | 855 | – | – | – | 970 | 855 | 805 | 1150 | 1050 | 985 | 970 | 705 | 425 | 855 | 625 | 395 | 885 | 655 | 425 |
| 2 | 900 | 785 | 655 | 720 | 625 | 525 | – | – | – | 920 | 835 | 755 | 1015 | 900 | 785 | – | – | – | 820 | 705 | 590 | 985 | 885 | 720 | 855 | 625 | 375 | 755 | 560 | 345 | 785 | 920 | 375 | |
| 3 | 835 | 705 | 575 | 655 | 560 | 460 | – | – | – | 835 | 755 | 675 | 900 | 785 | 675 | – | – | – | 755 | 640 | 525 | 920 | 785 | 640 | 755 | 540 | 330 | 655 | 490 | 310 | 690 | 510 | 330 | |
| 4 | 740 | 605 | 490 | 590 | 490 | 395 | – | – | – | 740 | 605 | 525 | 785 | 675 | 525 | – | – | – | 675 | 560 | 445 | 785 | 675 | 540 | 575 | 410 | 245 | 490 | 360 | 230 | 525 | 395 | 245 | |
| 5 | 605 | 560 | 490 | 490 | 445 | 395 | – | – | – | 625 | 560 | 490 | 675 | 525 | 410 | – | – | – | 560 | 510 | 445 | 655 | 590 | 525 | 460 | 345 | 230 | – | – | – | 425 | 330 | 230 | |
| 6 | 540 | 410 | 330 | 425 | 330 | 260 | – | – | – | 525 | 445 | 360 | 525 | 410 | 360 | – | – | – | 490 | 375 | 295 | 590 | 460 | 330 | 395 | 280 | 165 | – | – | – | 360 | 260 | 165 | |
| M | 1 | 675 | 590 | 540 | 560 | 490 | 445 | – | – | – | 675 | 605 | 510 | – | – | – | – | – | – | 640 | 560 | 510 | 855 | 690 | 605 | 885 | 640 | 375 | – | – | – | 820 | 605 | 375 |
| 2 | 605 | 525 | 425 | 510 | 425 | 360 | – | – | – | 605 | 525 | 460 | – | – | – | – | – | – | 575 | 490 | 410 | 770 | 590 | 475 | 770 | 560 | 345 | – | – | – | 720 | 525 | 330 | |
| 3 | 460 | 395 | 310 | 375 | 330 | 260 | – | – | – | 475 | 425 | 375 | – | – | – | – | – | – | 425 | 375 | 295 | 575 | 475 | 360 | 640 | 460 | 280 | – | – | – | 590 | 425 | 260 | |
| K | 1 | 755 | 675 | 605 | – | – | – | 1380 | 1265 | 1115 | 970 | 870 | 785 | 1345 | 1085 | 785 | 1180 | 950 | 805 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | 590 | 525 | 490 | – | – | – | 1100 | 970 | 900 | 770 | 690 | 625 | 920 | 805 | 625 | 920 | 755 | 640 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | 490 | 445 | 395 | – | – | – | 920 | 820 | 755 | 640 | 575 | 525 | 785 | 640 | 525 | 690 | 575 | 460 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| N | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | 130 | 115 | 80 | 115 | 100 | 80 | – | – | – | – | – | – | – | – | – | – | – | – | 130 | 115 | 100 | 165 | 130 | 80 | 180 | 130 | 65 | – | – | – | 150 | 115 | 80 |
| 2 | 130 | 115 | 80 | 115 | 100 | 80 | – | – | – | – | – | – | – | – | – | – | – | – | 130 | 115 | 100 | 180 | 130 | 80 | 150 | 115 | 65 | – | – | – | 150 | 100 | 65 | |
| 3 | 165 | 130 | 80 | 150 | 115 | 80 | – | – | – | – | – | – | – | – | – | – | – | – | 165 | 130 | 100 | 215 | 150 | 100 | 180 | 130 | 80 | – | – | – | 165 | 130 | 80 | |
| 4 | 165 | 150 | 115 | 165 | 150 | 100 | – | – | – | 165 | 150 | 115 | – | – | – | – | – | – | 180 | 165 | 115 | 245 | 195 | 130 | 260 | 180 | 115 | – | – | – | 195 | 165 | 115 | |
| H | 1 | 395 | 295 | 230 | – | – | – | – | – | – | – | – | – | 460 | 360 | 295 | – | – | – | – | – | – | – | – | – | – | – | – | 310 | 230 | 150 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 260 | 195 | 115 | – | – | – | |
| Recommended Starting Speed are pointing to 90° Shoulder Milling . Starting Speed for Face and Copy Milling can be Increased by 20 %. As the average chip thickness increases, speed should be decreased. Material groups P, M, K and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining. | ||||||||||||||||||||||||||||||||||
| 7792 Series IC09 • Ramping Application Data • Straight-Edged Inserts • Metric | |||||
| D1 máx | Ángulo de fresado descendente(°) | ae máx | Paso de planeado | DH min [mm] - (min hole diameter) | DH mín (diámetro de agujero mín.) |
| 25 | 3.6° | 6 | 12,85 | 34 | 48 |
| 32 | 1.95° | 6 | 19,85 | 48 | 62 |
| 35 | 1.65° | 6 | 22,85 | 54 | 68 |
| 40 | 1.3° | 6 | 27,85 | 64 | 78 |
| 42 | 1.2° | 6 | 29,85 | 68 | 82 |
| 50 | 0.9° | 6 | 37,85 | 84 | 98 |
| 52 | 0.85° | 6 | 39,85 | 88 | 102 |
| 63 | 0.6° | 6 | 50,85 | 110 | 124 |
| 66 | 0.6° | 6 | 53,85 | 116 | 130 |
| NOTE: Maximum ramp angle decreases as nose radius increases. | |||||
| 7792 Series IC09 • Ramping Application Data • Curved Edges • Metric | |||||
| D1 máx | Ángulo de fresado descendente(°) | ae máx | Paso de planeado | DH min [mm] - (min hole diameter) | DH mín (diámetro de agujero mín.) |
| 25 | 2.8° | 6 | 11,75 | 34 | 48 |
| 32 | 1.5° | 6 | 18,75 | 48 | 62 |
| 35 | 1.3° | 6 | 21,75 | 54 | 68 |
| 40 | 0.8° | 6 | 26,75 | 64 | 78 |
| 42 | 1° | 6 | 28,75 | 68 | 82 |
| 50 | 0.7° | 6 | 36,75 | 84 | 98 |
| 52 | 0.7° | 6 | 38,75 | 88 | 102 |
| 63 | 0.5° | 6 | 49,75 | 110 | 124 |
| 66 | 0.5° | 6 | 52,75 | 116 | 130 |
| NOTE: Maximum ramp angle decreases as nose radius increases. | |||||
| 7792 Series IC09 • Ramping Application Data • Curved Edges • Inch | |||||
| D1 máx | Ángulo de fresado descendente(°) | ae máx | Paso de planeado | DH min [Inch] - (min hole diameter) | DH mín (diámetro de agujero mín.) |
| 1.00 | 2.7° | 0.236 | 0.478 | 1.369 | 1.921 |
| 1.25 | 1.5° | 0.236 | 0.728 | 1.869 | 2.421 |
| 1.50 | 1.1° | 0.236 | 0.98 | 2.369 | 2.921 |
| 2.00 | 0.7° | 0.236 | 1.478 | 3.369 | 3.921 |
| NOTE: Maximum ramp angle decreases as nose radius increases. | |||||
| 7792 Series IC09 • Ramping Application Data • Straight-Edged Inserts • Inch | |||||
| D1 máx | Ángulo de fresado descendente(°) | ae máx | Paso de planeado | DH min [Inch] - (min hole diameter) | DH mín (diámetro de agujero mín.) |
| 1.00 | 3.45° | 0.236 | 0.522 | 1.369 | 1.921 |
| 1.25 | 2° | 0.236 | 0.773 | 1.869 | 2.421 |
| 1.50 | 1.4° | 0.236 | 1.021 | 2.369 | 2.921 |
| 2.00 | 0.9° | 0.236 | 1.521 | 3.369 | 3.921 |
| NOTE: Maximum ramp angle decreases as nose radius increases. | |||||
| 7792 Series IC09 • Programing Data • Curved Edges • Metric [mm] | |||
| IC | Radio de esquina | R | L |
| 06 | 0,8 | 1,37 | 0,4 |
| 09 | 0,8 | 2,01 | 0,73 |
| 1,2 | 2,27 | 0,67 | |
| 12 | 0,8 | 2,5 | 1,02 |
| 1,2 | 2,73 | 0,97 | |
| 16 | 1,2 | 4,18 | 1,46 |
| 7792 Series IC09 • Programing Data • Straight-Edged Inserts • Metric [mm] | |||
| IC | Radio de esquina | R | L |
| 06 | 0,8 | 1,46 | 0,529 |
| 09 | 0,8 | 2,13 | 1,025 |
| 1,2 | 2,25 | 0,95 | |
| 12 | 0,8 | 2,46 | 1,33 |
| 1,2 | 2,79 | 1,27 | |
| 2 | 3,42 | 1,13 | |
| 16 | 1,2 | 3,56 | 1,82 |
| CNC Program • Corner Radius Definition The use of common CAD/CAM systems requires a round insert dimension to be known for cavity machining. For finish pass applications: Wiper facet for finishing use max. feed 0,8mm. | |||
| 7792 Series IC09 • Programing Data • Curved Edges • Inch [inch] | |||
| IC | Radio de esquina | R | L |
| 06 | 0.031 | 0.057 | 0.016 |
| 09 | 0.031 | 0.079 | 0.028 |
| 0.047 | 0.089 | 0.026 | |
| 12 | 0.031 | 0.098 | 0.040 |
| 0.047 | 0.107 | 0.038 | |
| 16 | 0.047 | 0.164 | 0.057 |
| 7792 Series IC09 • Programing Data • Straight-Edged Inserts • Inch [inch] | |||
| IC | Radio de esquina | R | L |
| 06 | 0.031 | 0.057 | 0.021 |
| 09 | 0.031 | 0.084 | 0.040 |
| 0.047 | 0.088 | 0.037 | |
| 12 | 0.031 | 0.097 | 0.052 |
| 0.047 | 0.109 | 0.050 | |
| 0.079 | 0.134 | 0.044 | |
| 16 | 0.047 | 0.140 | 0.072 |
| CNC Program • Corner Radius Definition The use of common CAD/CAM systems requires a round insert dimension to be known for cavity machining. For finish pass applications: Wiper facet for finishing use max. feed 0.031". | |||
CAD Drawings Models
Can’t find the file type you’re looking for?
Product data
I have read and accepted the Terms & Conditions of use
ISO catálogo
ANSI catálogo
to find similar products.Please select a file to download
Models
. Please enter the desired qty for the material(s) you want to include in your promotion or Proceed Without Promotion and only your base materials will be added to the cart.
Minimum quantity should be
| SAP Material Number | ISO catálogo | Grade |
|---|
You are about to leave the Solution building process.
Are you sure you want to leave?
