Milling - Pressurized Air Coolant
Planeado
Fresado lateral/Fresado en escuadra: Nariz de bola
Mango — Liso cilíndricoDownloaded file will be available after import in the {{cadTool}} tool library.
| Número de material | 5703935 |
| Referencia ISO | KCRA150RN4303C125L400 |
| Referencia ANSI | KCRA150RN4303C125L400 |

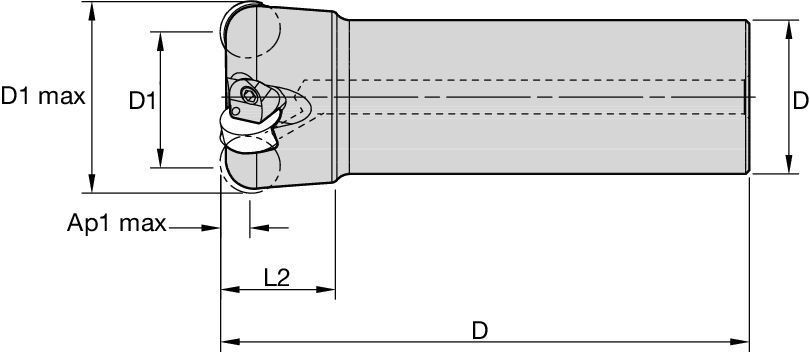

| Diámetro de corte máximo [D1MAX] | 38.1 mm |
| Diámetro de corte máximo [D1MAX] | 1.5 in |
| Diámetro de corte efectivo [D1] | 25.4 mm |
| Diámetro de corte efectivo [D1] | 1 in |
| Adaptador/Mango/Diá int [D] | 31.74 mm |
| Adaptador/Mango/Diá int [D] | 1.25 in |
| Longitud total [L] | 101.6 mm |
| Longitud total [L] | 4 in |
| Longitud de cabeza [L2] | 23.711 mm |
| Longitud de cabeza [L2] | 0.9335 in |
| 1.ª profundidad de corte máxima [AP1MAX] | 6.35 mm |
| 1.ª profundidad de corte máxima [AP1MAX] | 0.25 in |
| Número de plaquitas | 3 |
| RPM máx. | 28700 |
| Peso en libras | 1.3 |
| Calibre de plaquita | RNGN120400 |
Milling - Pressurized Air CoolantPlaneadoFresado lateral/Fresado en escuadra: Nariz de bolaMango — Liso cilíndricoCrear una solución para calcular la velocidad y el avance
Después de crear una solución, sólo tiene que elegir el icono Avance y Velocidad y nuestro sistema le ofrecerá recomendaciones. Puede personalizar la información añadiendo su máquina y especificaciones o realizar ajustes utilizando los controles deslizantes.
| Geometría de plaquita | Avance inicial recomendado por diente (Fz) en relación con % de contacto radial (ae) | Geometría de plaquita | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| .EGN | .003 | .004 | .005 | .003 | .003 | .003 | .002 | .002 | .003 | .002 | .002 | .003 | .002 | .002 | .003 | .EGN |
| .TGN | .005 | .007 | .008 | .004 | .005 | .006 | .003 | .004 | .005 | .003 | .004 | .005 | .003 | .004 | .005 | .TGN |
| Mecanizado ligero | Aplicaciones generales | Mecanizado intensivo |
| Geometría de plaquita | Avance inicial recomendado por diente (Fz) en relación con % de contacto radial (ae) | Geometría de plaquita | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| .EGN | .004 | .004 | .005 | .003 | .003 | .004 | .003 | .003 | .003 | .002 | .003 | .003 | .002 | .003 | .003 | .EGN |
| .TGN | .006 | .008 | .009 | .004 | .006 | .007 | .004 | .005 | .006 | .004 | .005 | .005 | .003 | .005 | .005 | .TGN |
| Geometría de plaquita | Avance inicial recomendado por diente (Fz) en relación con % de contacto radial (ae) | Geometría de plaquita | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| .EGN | .007 | .008 | .009 | .005 | .006 | .007 | .005 | .005 | .006 | .004 | .005 | .006 | .004 | .005 | .006 | .EGN |
| .TGN | .010 | .014 | .016 | .008 | .010 | .012 | .007 | .009 | .010 | .006 | .008 | .010 | .006 | .008 | .010 | .TGN |
| Geometría de plaquita | Avance inicial recomendado por diente (Fz) en relación con % de contacto radial (ae) | Geometría de plaquita | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| .EGN | .005 | .006 | .007 | .004 | .004 | .005 | .003 | .004 | .004 | .003 | .003 | .004 | .003 | .003 | .004 | .EGN |
| .TGN | .008 | .010 | .012 | .006 | .008 | .009 | .005 | .007 | .008 | .005 | .006 | .007 | .005 | .006 | .007 | .TGN |
| Grupo de materiales | KYS30 | KYSP30 | |||||
| P | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| K | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| N | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| S | 1 | 2640 | 2160 | 1680 | 2640 | 2160 | 1680 |
| 2 | 2640 | 2160 | 1680 | 2640 | 2160 | 1680 | |
| 3 | 3840 | 3120 | 2400 | 3840 | 3120 | 2400 | |
| 4 | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| Grupo de materiales | Mecanizado ligero | Aplicaciones generales | Mecanizado intensivo | |||
| – | (Geometría ligera) | – | (Geometría fuerte) | |||
| – | resistencia |  | tenacidad | |||
| – | Geometría | Calidad | Geometría | Calidad | Geometría | Calidad |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | – | – | – | – | – | – |
| K3 | – | – | – | – | – | – |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | .EGN | KYS30 | .EGN | KYS30 | .TGN | KYS30 |
| S3 | .EGN | KYSP30 | .EGN | KYSP30 | .TGN | KYSP30 |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
| Notas de seguridad | |||||
 |  |  |  |  |  |
| Lea todas las instrucciones atentamente | Lleve protección ocular | Inspeccione y apriete las fijaciones con regularidad | Advertencia: Riesgo de corte | Advertencia: Superficies calientes | No supere el máximo de RPM |
| Instrucciones de montaje | |

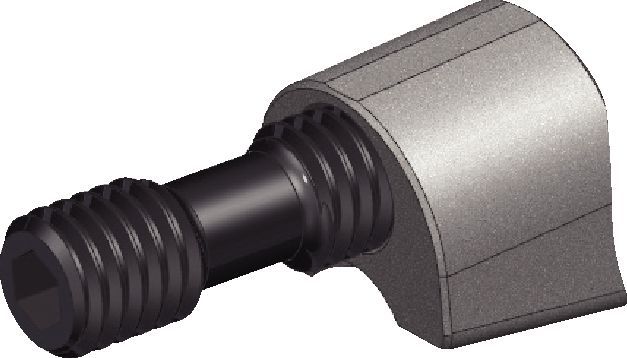

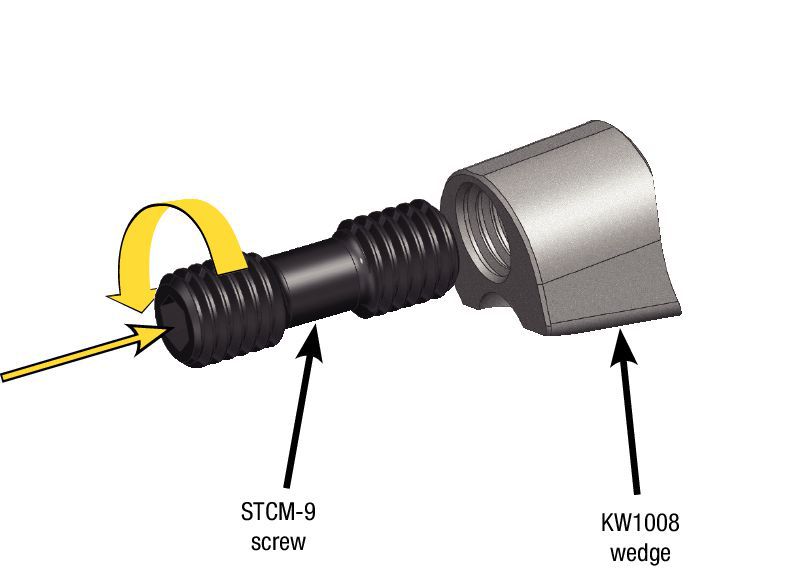

| Monte el tornillo STCM-25 en la cuña KW1008, 1 a 1 1/2 giros. | Conjunto de cuña/tornillo. |
 |  |

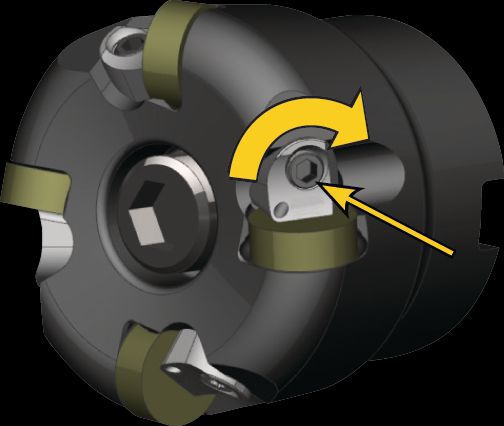

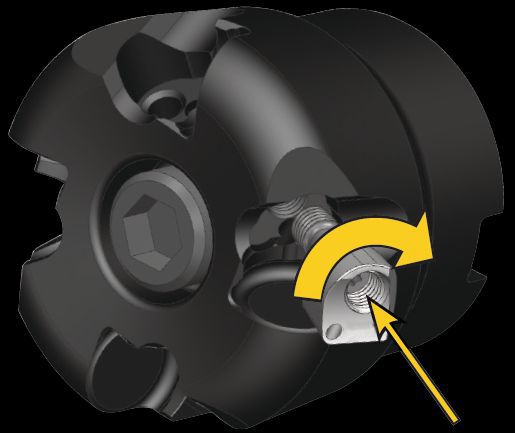

| Instale el conjunto de cuña/tornillo en el cuerpo de la fresa, pero mantenga el hueco del conjunto para instalar la plaquita. | Deslice la plaquita, RNGN12... en la cajera y apriete el conjunto de plaquita/cuña a 3,5 Nm (31 pulg./lbs). Repita con cada alojamiento. |
 |  |
