Planeado
Fresado helicoidal
Rectificado en rampa: Material en bruto
Ranurado: Placa cuadrada
Fresado lateral/Fresado en escuadra: Placa cuadrada
Fresado — Con refrigeración interna
Mango — Weldon cilíndrico 2 plano
Mecanizado de alojamientosDownloaded file will be available after import in the {{cadTool}} tool library.

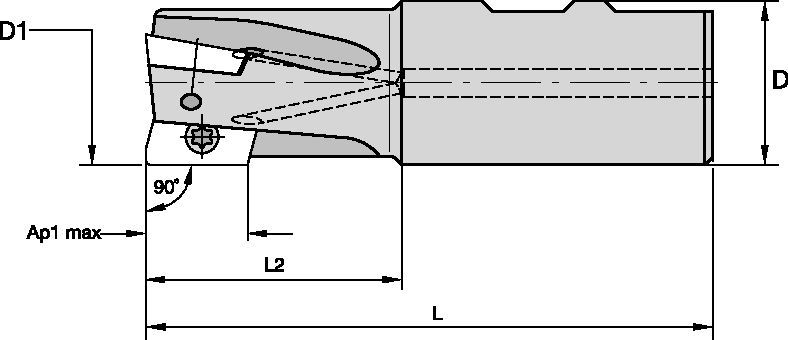

| Número de material | 2478642 |
| Referencia ISO | 32A04R050B32SED14 |
| Referencia ANSI | M1D032ME1404W032L110 |
| Diámetro de corte efectivo [D1] | 32 mm |
| Diámetro de corte efectivo [D1] | 1.26 in |
| Adaptador/Mango/Diá int [D] | 32 mm |
| Adaptador/Mango/Diá int [D] | 1.26 in |
| Longitud total [L] | 111 mm |
| Longitud total [L] | 4.37 in |
| Longitud de cabeza [L2] | 50 mm |
| Longitud de cabeza [L2] | 1.969 in |
| 1.ª profundidad de corte máxima [AP1MAX] | 14.5 mm |
| 1.ª profundidad de corte máxima [AP1MAX] | .57 in |
| Número de plaquitas | 4 |
| Ángulo de vaciado máximo | 6.8 |
| Peso en kilogramos | 0.56 |
| RPM máx. | 33300 |
PlaneadoFresado helicoidalRectificado en rampa: Material en brutoRanurado: Placa cuadradaFresado lateral/Fresado en escuadra: Placa cuadradaFresado — Con refrigeración internaMango — Weldon cilíndrico 2 planoMecanizado de alojamientosCrear una solución para calcular la velocidad y el avance
Después de crear una solución, sólo tiene que elegir el icono Avance y Velocidad y nuestro sistema le ofrecerá recomendaciones. Puede personalizar la información añadiendo su máquina y especificaciones o realizar ajustes utilizando los controles deslizantes.
| Grupo de materiales | Mecanizado ligero | Mecanizado | Mecanizado intensivo | |||
| P1–P2 | .E..GD | KCPM40 | .S..GD2 | KCPM40 | .E..HD2 | KCPM40 |
| P3–P4 | .E..GD | KCPM40 | .S..GD2 | KCPK30 | .E..HD2 | KCPK30 |
| P5–P6 | .E..GD | KC725M | .S..GD2 | KC725M | .E..HD2 | KC725M |
| M1–M2 | .E..LD | KC522M | .E..GD | KCSM40 | .E..HD2 | KC522M |
| M3 | .E..GD | KCSM40 | .S..GD2 | KCPM40 | .E..HD2 | KCPM40 |
| K1–K2 | .S..GD2 | KCK20B | .E..HD2 | KCK20B | .E..HD2 | KCK15 |
| K3 | .S..GD2 | KCK20B | .E..HD2 | KCK20B | .E..HD2 | KCK15 |
| N1–N2 | .F..LDJ | KC410M | .F..LDJ | KC410M | .E..LDJ | KC422M |
| N3 | .F..LDJ | KC410M | .F..LDJ | KC410M | .E..LDJ | KC422M |
| S1–S2 | .E..GD | KC725M | .S..GD2 | KC725M | .E..HD2 | KC725M |
| S3 | .E..GD | KCSM40 | .S..GD2 | KC725M | .E..HD2 | KC725M |
| S4 | .E..GD | KCSM40 | .S..GD2 | KC725M | .E..HD2 | KC522M |
| H1 | – | – | – | – | – | – |
| Mill 1-14™ • Recommended Starting Feeds [mm] | |||||||||||||||
| Geometría de plaquita | Avance inicial recomendado por diente (Fz) en relación con % de contacto radial (ae) | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | |||||||||||
| L | M | H | L | M | H | L | M | H | L | M | H | L | M | H | |
| .F..LDJ | 0,12 | 0,46 | 0,82 | 0,08 | 0,33 | 0,59 | 0,06 | 0,25 | 0,44 | 0,06 | 0,22 | 0,38 | 0,05 | 0,20 | 0,35 |
| .E..LDJ | 0,12 | 0,47 | 0,82 | 0,08 | 0,34 | 0,59 | 0,06 | 0,26 | 0,44 | 0,06 | 0,22 | 0,39 | 0,05 | 0,20 | 0,35 |
| .E..LD | 0,12 | 0,46 | 0,81 | 0,09 | 0,33 | 0,58 | 0,07 | 0,25 | 0,43 | 0,06 | 0,22 | 0,38 | 0,05 | 0,20 | 0,35 |
| .E..GD | 0,17 | 0,52 | 0,89 | 0,12 | 0,38 | 0,64 | 0,09 | 0,28 | 0,48 | 0,08 | 0,24 | 0,42 | 0,07 | 0,22 | 0,38 |
| .S..GE | 0,23 | 0,51 | 0,89 | 0,17 | 0,37 | 0,64 | 0,13 | 0,27 | 0,48 | 0,11 | 0,24 | 0,42 | 0,10 | 0,22 | 0,38 |
| .S..GD | 0,23 | 0,50 | 0,88 | 0,17 | 0,36 | 0,63 | 0,13 | 0,27 | 0,47 | 0,11 | 0,24 | 0,41 | 0,10 | 0,22 | 0,38 |
| .S..GD2 | 0,23 | 0,50 | 0,88 | 0,17 | 0,36 | 0,63 | 0,13 | 0,27 | 0,47 | 0,11 | 0,24 | 0,41 | 0,10 | 0,22 | 0,38 |
| .E..HD | 0,23 | 0,59 | 0,95 | 0,17 | 0,43 | 0,68 | 0,13 | 0,32 | 0,51 | 0,11 | 0,28 | 0,44 | 0,10 | 0,25 | 0,41 |
| .E..HD2 | 0,21 | 0,59 | 0,95 | 0,15 | 0,43 | 0,68 | 0,11 | 0,32 | 0,51 | 0,10 | 0,28 | 0,44 | 0,09 | 0,25 | 0,41 |
| L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use Light Machining values as starting feed rate. | |||||||||||||||
| Mill 1-14™ • Recommended Starting Feeds [Inch] | |||||||||||||||
| Geometría de plaquita | Avance inicial recomendado por diente (Fz) en relación con % de contacto radial (ae) | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | |||||||||||
| L | M | H | L | M | H | L | M | H | L | M | H | L | M | H | |
| .F..LDJ | .005 | .013 | .023 | .003 | .009 | .017 | .003 | .007 | .013 | .002 | .006 | .011 | .002 | .006 | .010 |
| .E..LDJ | .005 | .017 | .028 | .003 | .012 | .020 | .003 | .009 | .015 | .002 | .008 | .013 | .002 | .007 | .012 |
| .E..LD | .005 | .016 | .028 | .004 | .012 | .020 | .003 | .009 | .015 | .002 | .008 | .013 | .002 | .007 | .012 |
| .E..GD | .007 | .019 | .032 | .005 | .013 | .023 | .004 | .010 | .017 | .003 | .009 | .015 | .003 | .008 | .014 |
| .S..GE | .009 | .020 | .032 | .007 | .014 | .023 | .005 | .011 | .017 | .004 | .009 | .015 | .004 | .009 | .014 |
| .S..GD | .009 | .020 | .032 | .007 | .014 | .023 | .005 | .011 | .017 | .004 | .009 | .015 | .004 | .009 | .014 |
| .S..GD2 | .009 | .020 | .032 | .007 | .014 | .023 | .005 | .011 | .017 | .004 | .009 | .015 | .004 | .009 | .014 |
| .E..HD | .009 | .023 | .037 | .007 | .017 | .027 | .005 | .013 | .020 | .004 | .011 | .017 | .004 | .010 | .016 |
| .E..HD2 | .008 | .023 | .037 | .006 | .017 | .027 | .004 | .013 | .020 | .004 | .011 | .017 | .004 | .010 | .016 |
| L = Light Machining; M = Medium Machining; H = Heavy Machining NOTE: Use Light Machining values as starting feed rate. | |||||||||||||||
| Mill 1-14™ • Recommended Starting Speed [m/min] | ||||||||||||||||||||||||||||||||
| D = Dry Machining W = Wet Machining Y = Yes N = No Y, -20% = Yes, but reduce speed by 20% | KC410M | KC422M | KC522M | KC725M | KCK15 | KCK20B | KCPK30 | KCPM40 | KCSM30 | KCSM40 | ||||||||||||||||||||||
| Grosor de viruta hex mm | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | ||||||||||||
| D | W | Velocidad de corte (m/min) | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín |
| P | ||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | 330 | 285 | 270 | 260 | 230 | 215 | – | – | – | – | – | – | 455 | 395 | 370 | 295 | 260 | 245 | 370 | 320 | 300 | 350 | 320 | 300 |
| Y | Y, -20% | 2 | – | – | – | – | – | – | 275 | 240 | 200 | 220 | 190 | 160 | – | – | – | – | – | – | 280 | 255 | 230 | 250 | 215 | 180 | 305 | 270 | 220 | 300 | 270 | 220 |
| Y | Y, -20% | 3 | – | – | – | – | – | – | 255 | 215 | 175 | 200 | 170 | 140 | – | – | – | – | – | – | 255 | 230 | 205 | 230 | 195 | 160 | 285 | 240 | 195 | 280 | 240 | 195 |
| Y | Y, -20% | 4 | – | – | – | – | – | – | 225 | 185 | 150 | 180 | 150 | 120 | – | – | – | – | – | – | 225 | 185 | 160 | 205 | 170 | 135 | 250 | 205 | 165 | 240 | 205 | 165 |
| Y | Y, -20% | 5 | – | – | – | – | – | – | 185 | 170 | 150 | 150 | 135 | 120 | – | – | – | – | – | – | 190 | 170 | 150 | 170 | 155 | 135 | 205 | 190 | 165 | 200 | 180 | 160 |
| Y | Y, -20% | 6 | – | – | – | – | – | – | 165 | 125 | 100 | 130 | 100 | 80 | – | – | – | – | – | – | 160 | 135 | 110 | 150 | 115 | 90 | 185 | 140 | 110 | 180 | 140 | 100 |
| M | ||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | 205 | 180 | 165 | 170 | 150 | 135 | – | – | – | – | – | – | 205 | 185 | 155 | 195 | 170 | 155 | 225 | 180 | 170 | 260 | 210 | 185 |
| Y | Y, -20% | 2 | – | – | – | – | – | – | 185 | 160 | 130 | 155 | 130 | 110 | – | – | – | – | – | – | 185 | 160 | 140 | 175 | 150 | 125 | 205 | 160 | 135 | 235 | 180 | 145 |
| Y | Y, -20% | 3 | – | – | – | – | – | – | 140 | 120 | 95 | 115 | 100 | 80 | – | – | – | – | – | – | 145 | 130 | 115 | 130 | 115 | 90 | 155 | 125 | 95 | 175 | 145 | 110 |
| K | ||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | 230 | 205 | 185 | – | – | – | 420 | 385 | 340 | 360 | 290 | 245 | 295 | 265 | 240 | – | – | – | – | – | – | – | – | – |
| Y | Y, -20% | 2 | – | – | – | – | – | – | 180 | 160 | 150 | – | – | – | 335 | 295 | 275 | 280 | 230 | 195 | 235 | 210 | 190 | – | – | – | – | – | – | – | – | – |
| Y | Y, -20% | 3 | – | – | – | – | – | – | 150 | 135 | 120 | – | – | – | 280 | 250 | 230 | 210 | 175 | 140 | 195 | 175 | 160 | – | – | – | – | – | – | – | – | – |
| N | ||||||||||||||||||||||||||||||||
| N | Y | 1 | 1215 | 1080 | 995 | 1075 | 945 | 875 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| N | Y | 2 | 1080 | 995 | 915 | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| N | Y | 3 | 1080 | 995 | 915 | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| S | ||||||||||||||||||||||||||||||||
| N | Y | 1 | – | – | – | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 | – | – | – | – | – | – | – | – | – | 40 | 35 | 30 | 45 | 40 | 30 | 50 | 40 | 25 |
| N | Y | 2 | – | – | – | – | – | – | 40 | 35 | 25 | 35 | 30 | 25 | – | – | – | – | – | – | – | – | – | 40 | 35 | 30 | 45 | 40 | 30 | 55 | 40 | 25 |
| N | Y | 3 | – | – | – | – | – | – | 50 | 40 | 25 | 45 | 35 | 25 | – | – | – | – | – | – | – | – | – | 50 | 40 | 30 | 55 | 45 | 30 | 65 | 45 | 30 |
| N | Y | 4 | – | – | – | – | – | – | 50 | 45 | 35 | 50 | 45 | 30 | – | – | – | – | – | – | 50 | 45 | 35 | 55 | 50 | 35 | 60 | 55 | 40 | 75 | 60 | 40 |
| H | ||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | 120 | 90 | 70 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 135 | 100 | 75 | – | – | – |
| Y | Y, -20% | 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Y | Y, -20% | 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| As the average chip thickness increases, speed should be decreased. Material groups P, M, K and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining. | ||||||||||||||||||||||||||||||||
| Mill 1-14™ • Recommended Starting Speeds [SFM] | ||||||||||||||||||||||||||||||||
| D = Dry Machining W = Wet Machining Y = Yes N = No Y, -20% = Yes, but reduce speed by 20% | KC410M | KC422M | KC522M | KC725M | KCK15 | KCK20B | KCPK30 | KCPM40 | KCSM30 | KCSM40 | ||||||||||||||||||||||
| Chip Thickness hex Inch | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | Mín | Máx. | ||||||||||||
| D | W | Velocidad de corte | Máx. | Inicio | Mín | Máx. | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín | Inicio | Inicio | Mín |
| P | ||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | 1085 | 935 | 885 | 855 | 755 | 705 | – | – | – | – | – | – | 1495 | 1295 | 1215 | 970 | 855 | 805 | 1215 | 1050 | 985 | 1150 | 1050 | 985 |
| Y | Y, -20% | 2 | – | – | – | – | – | – | 900 | 785 | 655 | 720 | 625 | 525 | – | – | – | – | – | – | 920 | 835 | 755 | 820 | 705 | 590 | 1000 | 885 | 720 | 985 | 885 | 720 |
| Y | Y, -20% | 3 | – | – | – | – | – | – | 835 | 705 | 575 | 655 | 560 | 460 | – | – | – | – | – | – | 835 | 755 | 675 | 755 | 640 | 525 | 935 | 785 | 640 | 920 | 785 | 640 |
| Y | Y, -20% | 4 | – | – | – | – | – | – | 740 | 605 | 490 | 590 | 490 | 395 | – | – | – | – | – | – | 740 | 605 | 525 | 675 | 560 | 445 | 820 | 675 | 540 | 785 | 675 | 540 |
| Y | Y, -20% | 5 | – | – | – | – | – | – | 605 | 560 | 490 | 490 | 445 | 395 | – | – | – | – | – | – | 625 | 560 | 490 | 560 | 510 | 445 | 675 | 625 | 540 | 655 | 590 | 525 |
| Y | Y, -20% | 6 | – | – | – | – | – | – | 540 | 410 | 330 | 425 | 330 | 260 | – | – | – | – | – | – | 525 | 445 | 360 | 490 | 375 | 295 | 605 | 460 | 360 | 590 | 460 | 330 |
| M | ||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | 675 | 590 | 540 | 560 | 490 | 445 | – | – | – | – | – | – | 675 | 605 | 510 | 640 | 560 | 510 | 740 | 590 | 560 | 855 | 690 | 605 |
| Y | Y, -20% | 2 | – | – | – | – | – | – | 605 | 525 | 425 | 510 | 425 | 360 | – | – | – | – | – | – | 605 | 525 | 460 | 575 | 490 | 410 | 675 | 525 | 445 | 770 | 590 | 475 |
| Y | Y, -20% | 3 | – | – | – | – | – | – | 460 | 395 | 310 | 375 | 330 | 260 | – | – | – | – | – | – | 475 | 425 | 375 | 425 | 375 | 295 | 510 | 410 | 310 | 575 | 475 | 360 |
| K | ||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | 755 | 675 | 605 | – | – | – | 1380 | 1265 | 1115 | 1180 | 950 | 805 | 970 | 870 | 785 | – | – | – | – | – | – | – | – | – |
| Y | Y, -20% | 2 | – | – | – | – | – | – | 590 | 525 | 490 | – | – | – | 1100 | 970 | 900 | 920 | 755 | 640 | 770 | 690 | 625 | – | – | – | – | – | – | – | – | – |
| Y | Y, -20% | 3 | – | – | – | – | – | – | 490 | 445 | 395 | – | – | – | 920 | 820 | 755 | 690 | 575 | 460 | 640 | 575 | 525 | – | – | – | – | – | – | – | – | – |
| N | ||||||||||||||||||||||||||||||||
| N | Y | 1 | 3985 | 3545 | 3265 | 3525 | 3100 | 2870 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| N | Y | 2 | 3545 | 3265 | 3000 | 3100 | 2870 | 2495 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| N | Y | 3 | 3545 | 3265 | 3000 | 3100 | 2870 | 2495 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| S | ||||||||||||||||||||||||||||||||
| N | Y | 1 | – | – | – | – | – | – | 130 | 115 | 80 | 115 | 100 | 80 | – | – | – | – | – | – | – | – | – | 130 | 115 | 100 | 150 | 130 | 100 | 165 | 130 | 80 |
| N | Y | 2 | – | – | – | – | – | – | 130 | 115 | 80 | 115 | 100 | 80 | – | – | – | – | – | – | – | – | – | 130 | 115 | 100 | 150 | 130 | 100 | 180 | 130 | 80 |
| N | Y | 3 | – | – | – | – | – | – | 165 | 130 | 80 | 150 | 115 | 80 | – | – | – | – | – | – | – | – | – | 165 | 130 | 100 | 180 | 150 | 100 | 215 | 150 | 100 |
| N | Y | 4 | – | – | – | – | – | – | 165 | 150 | 115 | 165 | 150 | 100 | – | – | – | – | – | – | 165 | 150 | 115 | 180 | 165 | 115 | 195 | 180 | 130 | 245 | 195 | 130 |
| H | ||||||||||||||||||||||||||||||||
| Y | Y, -20% | 1 | – | – | – | – | – | – | 395 | 295 | 230 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 445 | 330 | 245 | – | – | – |
| Y | Y, -20% | 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Y | Y, -20% | 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| As the average chip thickness increases, speed should be decreased. Material groups P, M, K and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining. | ||||||||||||||||||||||||||||||||
| Mill 1-14™ • Ramping Angles [mm] | |||||
| Tipo de plaquita | diámetro de corte | máx. ángulo rampa | DH min [mm] - (min hole diameter) | DH mín (diámetro de agujero mín.) | DHI mín (diámertro de agujero mín. en fondo plano) |
| Fresa 1-14 | 20 | 16˚ | 23,74 | 40 | 35,62 |
| Fresa 1-14 | 25 | 11˚ | 33,75 | 50 | 44,44 |
| Fresa 1-14 | 32 | 7˚ | 47,80 | 64 | 59,79 |
| Fresa 1-14 | 40 | 5˚ | 63,76 | 80 | 75,22 |
| Fresa 1-14 | 40 | 5˚ | 64,00 | 80 | 75,47 |
| Fresa 1-14 | 50 | 4˚ | 83,96 | 100 | 96,05 |
| Fresa 1-14 | 63 | 3˚ | 109,93 | 126 | 121,47 |
| Fresa 1-14 | 80 | 2˚ | 143,91 | 160 | 155,47 |
| Fresa 1-14 | 100 | 1˚ | 183,89 | 200 | 199,47 |
| Fresa 1-14 | 125 | 1˚ | 233,88 | 250 | 245,47 |
| Fresa 1-14 | 160 | 1˚ | 303,88 | 320 | 315,47 |
| Mill 1-14™ • Ramping Angles [inch] | |||||
| Tipo de plaquita | diámetro de corte | máx. ángulo rampa | DH min [Inch] - (min hole diameter) | DH mín (diámetro de agujero mín.) | DHI mín (diámertro de agujero mín. en fondo plano) |
| Mill 1-14 | 0.625 | 25˚ | 0.625 | 1.25 | 1.065 |
| Mill 1-14 | 0.750 | 18˚ | 0.869 | 1.50 | 1.130 |
| Mill 1-14 | 0.875 | 13˚ | 1.113 | 1.75 | 1.562 |
| Mill 1-14 | 0.970 | 11˚ | 1.300 | 1.94 | 1.752 |
| Mill 1-14 | 1.000 | 10˚ | 1.360 | 2.00 | 1.812 |
| Mill 1-14 | 1.250 | 7˚ | 1.862 | 2.50 | 2.312 |
| Mill 1-14 | 1.500 | 6˚ | 2.361 | 3.00 | 2.812 |
| Mill 1-14 | 1.250 | 7˚ | 1.873 | 2.50 | 2.322 |
| Mill 1-14 | 1.500 | 5˚ | 2.370 | 3.00 | 2.822 |
| Mill 1-14 | 2.000 | 4˚ | 3.368 | 4.00 | 3.822 |
| Mill 1-14 | 2.500 | 3˚ | 4.367 | 5.00 | 4.822 |
| Mill 1-14 | 3.000 | 2˚ | 5.366 | 6.00 | 5.822 |
| Mill 1-14 | 4.000 | 2˚ | 7.366 | 8.00 | 7.822 |
