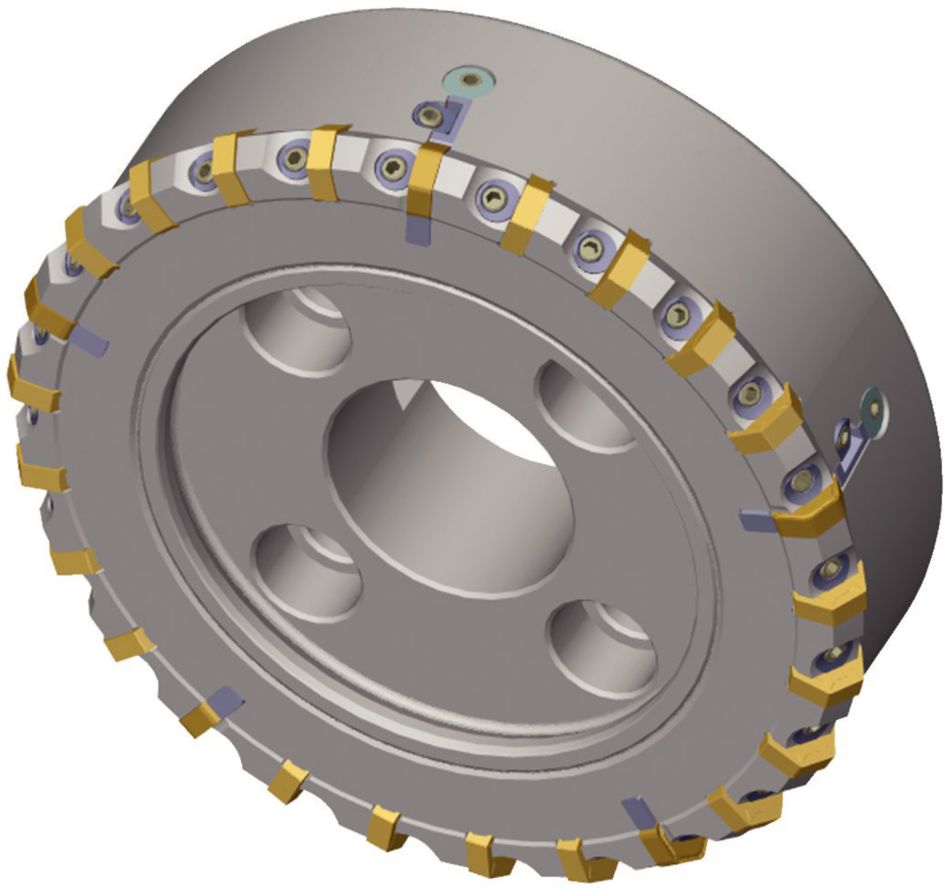

| Material Number | 3851540 |
| ISO Catalog ID | HNPX090516MR |
| ANSI Catalog ID | HNPX5354MR |
| Qualità | KC524M |
| [D] Dimensione IC inserto | 16.2 mm |
| [D] Dimensione IC inserto | 0.6378 in |
| [S] Spessore inserto | 5.56 mm |
| [S] Spessore inserto | 0.219 in |
| [L10] Lunghezza del tagliente dell’inserto | 9.35 mm |
| [L10] Lunghezza del tagliente dell’inserto | 0.3681 in |
| [Rε] Raggio di punta | 1.6 mm |
| [Rε] Raggio di punta | 0.063 in |
| Spessore medio del truciolo [HM] | 0.095 mm |
| Spessore medio del truciolo [HM] | 0.0037 in |
| Taglienti per inserto | 12 |
Grades
KC524M
Qualità in metallo duro rivestito con PVD TiAlN più spesso. KC524M combina una buona resistenza all'usura e un'elevata tenacità. Principalmente per lavorazioni generali di tutti i tipi di ghisa. Questa qualità può essere utilizzata a umido e a secco.
Crea una soluzione per calcolare avanzamenti e velocità
Dopo aver creato una soluzione, basta scegliere l'icona Avanzamento e Velocità e il nostro sistema fornirà dei suggerimenti. Puoi personalizzare le informazioni aggiungendo la tua macchina e le specifiche o apportare delle modifiche utilizzando i cursori.
| Lavorazione leggera | Uso generico | Lavorazione pesante |
| Geometria dell'inserto | Avanzamento per dente programmato (fz) in base alla % della profondità di taglio radiale (ae) | Geometria dell'inserto | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| ...MCI | 0,25 | 0,65 | 1,15 | 0,18 | 0,47 | 0,82 | 0,14 | 0,35 | 0,61 | 0,12 | 0,31 | 0,54 | 0,11 | 0,28 | 0,49 | ...MCI |
| .E..LE | 0,26 | 0,64 | 1,17 | 0,19 | 0,46 | 0,84 | 0,14 | 0,35 | 0,63 | 0,12 | 0,30 | 0,54 | 0,11 | 0,28 | 0,50 | .E..LE |
| ...MR | 0,33 | 0,72 | 1,26 | 0,24 | 0,52 | 0,90 | 0,18 | 0,39 | 0,67 | 0,16 | 0,34 | 0,59 | 0,14 | 0,31 | 0,54 | ...MR |
| .S..GE | 0,33 | 0,84 | 1,35 | 0,24 | 0,60 | 0,97 | 0,18 | 0,45 | 0,72 | 0,16 | 0,39 | 0,63 | 0,14 | 0,36 | 0,57 | .S..GE |
| ...SN | 0,33 | 0,84 | 1,35 | 0,24 | 0,60 | 0,97 | 0,18 | 0,45 | 0,72 | 0,16 | 0,39 | 0,63 | 0,14 | 0,36 | 0,57 | ...SN |
| Lavorazione leggera | Uso generico | Lavorazione pesante |
| Geometria dell'inserto | Avanzamento per dente programmato (fz) in base alla % della profondità di taglio radiale (ae) | Geometria dell'inserto | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| ...MCI | .010 | .026 | .046 | .007 | .019 | .033 | .006 | .014 | .025 | .005 | .012 | .021 | .004 | .011 | .020 | ...MCI |
| .E..LE | .010 | .025 | .046 | .007 | .018 | .033 | .006 | .014 | .025 | .005 | .012 | .021 | .004 | .011 | .020 | .E..LE |
| .S..GE | .013 | .033 | .053 | .009 | .024 | .038 | .007 | .018 | .028 | .006 | .015 | .025 | .006 | .014 | .023 | .S..GE |
| ...SN | .013 | .033 | .053 | .009 | .024 | .038 | .007 | .018 | .028 | .006 | .015 | .025 | .006 | .014 | .023 | ...SN |
| Gruppo materiali | KCK15 | KCPK30 | KC514M | KC524M | KC907M | KC914M | KC917M | KC924M | KY3500 | |||||||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 505 | 460 | 410 | 355 | 320 | 285 | 480 | 350 | 255 | 450 | 320 | 230 | 490 | 365 | 305 | 420 | 360 | 300 | 360 | 300 | 240 | 350 | 275 | 200 | 965 | 880 | 780 |
| 2 | 400 | 355 | 330 | 280 | 255 | 230 | 420 | 280 | 205 | 390 | 250 | 190 | 385 | 300 | 250 | 360 | 300 | 250 | 300 | 240 | 200 | 275 | 220 | 175 | 765 | 685 | 635 | |
| 3 | 335 | 300 | 275 | 235 | 210 | 195 | 335 | 260 | 200 | 300 | 225 | 160 | 300 | 250 | 200 | 300 | 250 | 200 | 240 | 200 | 160 | 220 | 175 | 140 | 645 | 570 | 525 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Gruppo materiali | KCK15 | KCPK30 | KC514M | KC524M | KC907M | KC914M | KC917M | KC924M | KY3500 | |||||||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 1660 | 1510 | 1340 | 1160 | 1050 | 940 | 1570 | 1150 | 830 | 1470 | 1050 | 750 | 1600 | 1190 | 1000 | 1370 | 1180 | 980 | 1180 | 980 | 780 | 1150 | 900 | 660 | 3170 | 2880 | 2560 |
| 2 | 1310 | 1170 | 1090 | 920 | 830 | 760 | 1380 | 920 | 680 | 1280 | 820 | 620 | 1260 | 980 | 820 | 1180 | 980 | 820 | 980 | 780 | 660 | 900 | 720 | 580 | 2510 | 2240 | 2090 | |
| 3 | 1100 | 980 | 900 | 770 | 690 | 640 | 1100 | 850 | 660 | 980 | 730 | 520 | 980 | 820 | 660 | 980 | 820 | 660 | 780 | 660 | 520 | 720 | 580 | 460 | 2110 | 1870 | 1720 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Gruppo materiali | Lavorazione leggera | Uso generico | Lavorazione pesante | |||
| (Geometria leggera) | – | (Geometria robusta) | ||||
| resistenza all’usura |  | tenacità | ||||
| Geometria | Qualità | Geometria | Qualità | Geometria | Qualità | |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | .E..LE | KCK15 | .S..GE | KCK15 | .S..GE | KCK15 |
| K3 | .E..LE | KCK15 | .S..GE | KC514M | .S..GE | KCK15 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
