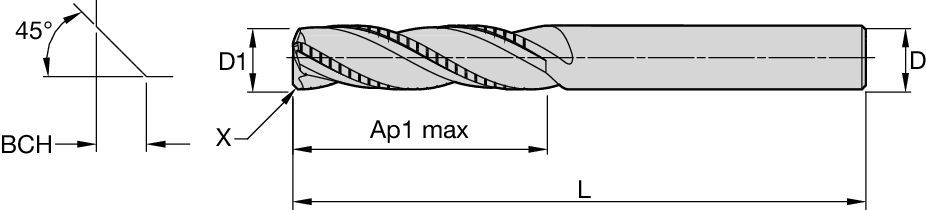

KenCut™ ALR • SFRHEC • Chamfered • 3 Flutes • Plain Shank • Inch
Solid Carbide End Mill for Aluminum Roughing
Features and benefits
- Centre cutting for plunging and ramping operations.
- Solid carbide end mill with cord profile, for low cutting forces and low power consumption.
Uses and application
坡铣: 毛坯
槽铣: 方头立铣
侧铣/方肩铣削: 方头立铣
刀具尺寸: 排屑槽数: 3
螺旋角: 30°
刀尖类型: 刀尖倒角
End Mill Tolerances | |||
D1 | tolerance d11 | D | tolerance h6 + / - |
1/8" | -.0008/-.0031" | 1/8" | +0/-.00024" |
1/8–7/32" | -.0012/-.0041" | 1/8–7/32" | +0/-.00031" |
1/4–3/8" | -.0016/-.0051" | 1/4–3/8" | +0/-.00035" |
13/32–11/16" | -.002/-.0063" | 13/32–11/16" | +0/-.00043" |
23/32–1-3/16" | -.0026/-.0077" | 23/32–1-3/16" | +0/-.00051" |
Side Milling (A) and Slotting (B) | |||||||||||||
K600/KC625M | Feed per Tooth — fz information is for side milling (A). For slotting (B), reduce fz by 20%. | ||||||||||||
A | B | Cutting Speed
|
D1
|
||||||||||
1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | ||||||||
Material
|
ap | ae | ap | min | max | inch | 0.250 | 0.375 | 0.500 | 0.625 | 0.750 | 1.000 | |
N | 1 | 1.25XD | 0.5XD | 1XD | 1650 | 6500 | fz | 0.0028 | 0.0041 | 0.0055 | 0.0070 | 0.0085 | 0.0110 |
2 | 1.25XD | 0.5XD | 1XD | 1650 | 5050 | fz | 0.0025 | 0.0037 | 0.0050 | 0.0060 | 0.0075 | 0.0010 |
