Foratura
Foratura: Ingresso inclinato
Foratura: Uscita inclinata
Foratura: Offset sull'asse x
Foratura: Convessa
Codolo — Cilindrico con piano e flangia
Adduzione interna di refrigerante: Radiale: Foratura intercambiabile
Foratura: Foro cieco
Chain Drilling
Drilling: Cross-Hole Drilling
Drilling: Half-Cylindrical Drilling
Drilling: Corner Drilling 45°Downloaded file will be available after import in the {{cadTool}} tool library.
| Material Number | 3022345 |
| ISO Catalog ID | DFR0703R4SSF100 |
| ANSI Catalog ID | DFR0703R4SSF100 |

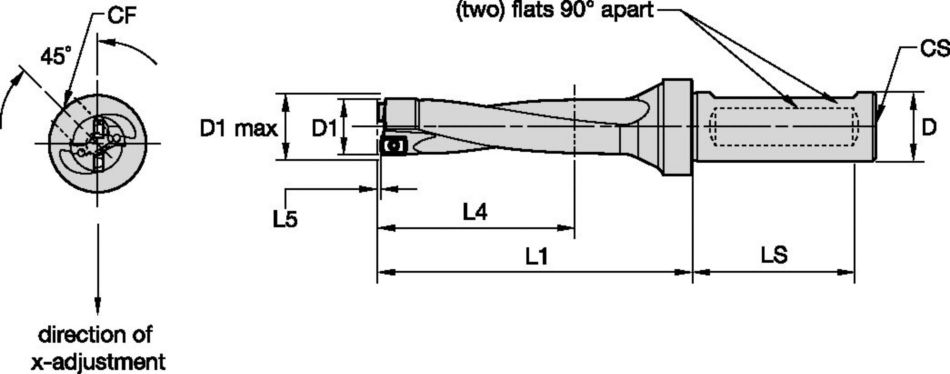

| [D] Dia adattatore / stelo / foro | 25.4 mm |
| [D] Dia adattatore / stelo / foro | 1 in |
| [D1] Diametro punta M | 17.856 mm |
| [D1] Diametro punta M | 0.703 in |
| [D1max] Diametro punta massimo | 18.857 mm |
| [D1max] Diametro punta massimo | 0.7424 in |
| [L1] Lunghezza spessore inserto | 97.272 mm |
| [L1] Lunghezza spessore inserto | 3.8296 in |
| [L4] Profondità di foratura massima | 71.425 mm |
| [L4] Profondità di foratura massima | 2.812 in |
| [L5] Lunghezza punta | 0.618 mm |
| [L5] Lunghezza punta | 0.0243 in |
| [LS] Lunghezza del codolo | 76.2 mm |
| [LS] Lunghezza del codolo | 3 in |
| Inserto di riferimento | DFR0302. |
ForaturaForatura: Ingresso inclinatoForatura: Uscita inclinataForatura: Offset sull'asse xForatura: ConvessaCodolo — Cilindrico con piano e flangiaAdduzione interna di refrigerante: Radiale: Foratura intercambiabileForatura: Foro ciecoChain DrillingDrilling: Cross-Hole DrillingDrilling: Half-Cylindrical DrillingDrilling: Corner Drilling 45°Crea una soluzione per calcolare avanzamenti e velocità
Dopo aver creato una soluzione, basta scegliere l'icona Avanzamento e Velocità e il nostro sistema fornirà dei suggerimenti. Puoi personalizzare le informazioni aggiungendo la tua macchina e le specifiche o apportare delle modifiche utilizzando i cursori.
| Pollici | ||||||||||||
| Gruppo materiali | Condizione | Sede | Geometria | Qualità | Velocità di taglio | Velocità di avanzamento consigliata (f) rispetto al diametro | ||||||
| Intervallo | ||||||||||||
| Min | Valore iniziale | Max | Ø | DFR02... .500–.625" | DFR03... .688–.750" | DFR04... .813–1.00" | ||||||
| P | 1 | S | O | MD | KCU25 | 1017 | 1066 | 1181 | SFM | .004–.006 | .004–.007 | .006–.010 |
| I | MD | KC7140 | ||||||||||
| U | O | MD | KCU40 | 656 | 705 | 754 | SFM | .004–.006 | .004–.007 | .006–.010 | ||
| I | MD | KC7140 | ||||||||||
| I | O | MD | KC7140 | 426 | 443 | 492 | SFM | .004–.006 | .004–.007 | .006–.010 | ||
| I | MD | KC7140 | ||||||||||
| 2 | S | O | GD | KCPK10 | 1017 | 1066 | 1181 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| I | LD | KC7140 | ||||||||||
| U | O | GD | KCU40 | 656 | 705 | 754 | SFM | .004–.006 | .004–.007 | .006–.010 | ||
| I | LD | KC7140 | ||||||||||
| I | O | MD | KC7140 | 426 | 443 | 492 | SFM | .004–.006 | .004–.007 | .006–.010 | ||
| I | LD | KC7140 | ||||||||||
| 3 | S | O | GD | KCPK10 | 853 | 935 | 1050 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| I | LD | KC7140 | ||||||||||
| U | O | GD | KCU40 | 590 | 640 | 722 | SFM | .004–.006 | .004–.007 | .006–.010 | ||
| I | LD | KC7140 | ||||||||||
| I | O | GD | KC7140 | 361 | 394 | 459 | SFM | .004–.006 | .004–.007 | .006–.010 | ||
| I | LD | KC7140 | ||||||||||
| 4 | S | O | GD | KCU25 | 722 | 820 | 984 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| I | LD | KC7140 | ||||||||||
| U | O | GD | KCU40 | 492 | 590 | 722 | SFM | .004–.006 | .004–.007 | .006–.010 | ||
| I | LD | KC7140 | ||||||||||
| I | O | GD | KC7140 | 295 | 361 | 459 | SFM | .004–.006 | .004–.007 | .006–.010 | ||
| I | LD | KC7140 | ||||||||||
| 5 | S | O | GD | KCU25 | 590 | 656 | 722 | SFM | .003–.005 | .004–.006 | .004–.007 | |
| I | LD | KC7140 | ||||||||||
| U | O | GD | KCU40 | 394 | 443 | 492 | SFM | .003–.005 | .004–.006 | .004–.007 | ||
| I | LD | KC7140 | ||||||||||
| I | O | GD | KC7140 | 230 | 279 | 328 | SFM | .003–.005 | .004–.006 | .004–.007 | ||
| I | LD | KC7140 | ||||||||||
| 6 | S | O | GD | KCU25 | 590 | 656 | 722 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| I | LD | KC7140 | ||||||||||
| U | O | GD | KCU40 | 394 | 443 | 492 | SFM | .004–.006 | .004–.007 | .006–.010 | ||
| I | LD | KC7140 | ||||||||||
| I | O | GD | KC7140 | 230 | 279 | 328 | SFM | .004–.006 | .004–.007 | .006–.010 | ||
| I | LD | KC7140 | ||||||||||
| Pollici | ||||||||||||
| Velocità di taglio | ||||||||||||
| Intervallo | Velocità di avanzamento consigliata (f) rispetto al diametro | |||||||||||
| Gruppo materiali | Condizione | Sede | Geometria | Qualità | Min | Valore iniziale | Max | Ø | DFR02... .500"–.625" | DFR03... .688"–.750" | DFR04... .813"–1.00" | |
| P | 1 | S | O | MD | KCU25 | 1017 | 1066 | 1181 | SFM | .004–.006 | .004–.007 | .006–.010 |
| 1 | S | I | MD | KC7140 | 1017 | 1066 | 1181 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 1 | U | O | MD | KCU40 | 656 | 705 | 754 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 1 | U | I | MD | KC7140 | 656 | 705 | 754 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 1 | I | O | MD | KC7140 | 426 | 443 | 492 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 1 | I | I | MD | KC7140 | 426 | 443 | 492 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 2 | S | O | GD | KCPK10 | 1017 | 1066 | 1181 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 2 | S | I | LD | KC7140 | 1017 | 1066 | 1181 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 2 | U | O | GD | KCU40 | 656 | 705 | 754 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 2 | U | I | LD | KC7140 | 656 | 705 | 754 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 2 | I | O | MD | KC7140 | 426 | 443 | 492 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 2 | I | I | LD | KC7140 | 426 | 443 | 492 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 3 | S | O | GD | KCPK10 | 853 | 935 | 1050 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 3 | S | I | LD | KC7140 | 853 | 935 | 1050 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 3 | U | O | GD | KCU40 | 590 | 640 | 722 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 3 | U | I | LD | KC7140 | 590 | 640 | 722 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 3 | I | O | GD | KC7140 | 361 | 394 | 459 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 3 | I | I | LD | KC7140 | 361 | 394 | 459 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 4 | S | O | GD | KCU25 | 722 | 820 | 984 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 4 | S | I | LD | KC7140 | 722 | 820 | 984 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 4 | U | O | GD | KCU40 | 492 | 590 | 722 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 4 | U | I | LD | KC7140 | 492 | 590 | 722 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 4 | I | O | GD | KC7140 | 295 | 361 | 459 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 4 | I | I | LD | KC7140 | 295 | 361 | 459 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 5 | S | O | GD | KCU25 | 590 | 656 | 722 | SFM | .003–.005 | .004–.006 | .004–.007 | |
| 5 | S | I | LD | KC7140 | 590 | 656 | 722 | SFM | .003–.005 | .004–.006 | .004–.007 | |
| 5 | U | O | GD | KCU40 | 394 | 443 | 492 | SFM | .003–.005 | .004–.006 | .004–.007 | |
| 5 | U | I | LD | KC7140 | 394 | 443 | 492 | SFM | .003–.005 | .004–.006 | .004–.007 | |
| 5 | I | O | GD | KC7140 | 230 | 279 | 328 | SFM | .003–.005 | .004–.006 | .004–.007 | |
| 5 | I | I | LD | KC7140 | 230 | 279 | 328 | SFM | .003–.005 | .004–.006 | .004–.007 | |
| 6 | S | O | GD | KCU25 | 590 | 656 | 722 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 6 | S | I | LD | KC7140 | 590 | 656 | 722 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 6 | U | O | GD | KCU40 | 394 | 443 | 492 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 6 | U | I | LD | KC7140 | 394 | 443 | 492 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 6 | I | O | GD | KC7140 | 230 | 279 | 328 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| 6 | I | I | LD | KC7140 | 230 | 279 | 328 | SFM | .004–.006 | .004–.007 | .006–.010 | |
| Pollici | ||||||||||||
| Gruppo materiali | Condizione | Sede | Geometria | Qualità | Velocità di taglio | Velocità di avanzamento consigliata (f) rispetto al diametro | ||||||
| Intervallo | ||||||||||||
| Min | Valore iniziale | Max | Ø | DFR02... .500–.625" | DFR03... .688–.750" | DFR04... .813–1.00" | ||||||
| M | 1 | S | O | MD | KC7140 | 492 | 623 | 754 | SFM | .003–.005 | .003–.006 | .004–.007 |
| I | MD | KC7140 | ||||||||||
| U | O | MD | KC7140 | 328 | 426 | 525 | SFM | .003–.005 | .003–.006 | .004–.007 | ||
| I | MD | KC7140 | ||||||||||
| I | O | MD | KC7140 | 197 | 262 | 328 | SFM | .003–.005 | .003–.006 | .004–.007 | ||
| I | MD | KC7140 | ||||||||||
| 2 | S | O | MD | KC7140 | 492 | 590 | 689 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| I | MD | KC7140 | ||||||||||
| U | O | MD | KC7140 | 328 | 426 | 525 | SFM | .003–.005 | .003–.006 | .004–.007 | ||
| I | MD | KC7140 | ||||||||||
| I | O | MD | KC7140 | 197 | 262 | 328 | SFM | .003–.005 | .003–.006 | .004–.007 | ||
| I | MD | KC7140 | ||||||||||
| 3 | S | O | MD | KC7140 | 328 | 426 | 525 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| I | MD | KC7140 | ||||||||||
| U | O | MD | KC7140 | 262 | 361 | 459 | SFM | .003–.005 | .003–.006 | .004–.007 | ||
| I | MD | KC7140 | ||||||||||
| I | O | MD | KC7140 | 164 | 230 | 295 | SFM | .003–.005 | .003–.006 | .004–.007 | ||
| I | MD | KC7140 | ||||||||||
| Pollici | ||||||||||||
| Velocità di taglio | ||||||||||||
| Intervallo | Velocità di avanzamento consigliata (f) rispetto al diametro | |||||||||||
| Gruppo materiali | Condizione | Sede | Geometria | Qualità | Min | Valore iniziale | Max | Ø | DFR02... .500"–.625" | DFR03... .688"–.750" | DFR04... .813"–1.00" | |
| M | 1 | S | O | MD | KC7140 | 492 | 623 | 754 | SFM | .003–.005 | .003–.006 | .004–.007 |
| 1 | S | I | MD | KC7140 | 492 | 623 | 754 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 1 | U | O | MD | KC7140 | 328 | 426 | 525 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 1 | U | I | MD | KC7140 | 328 | 426 | 525 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 1 | I | O | MD | KC7140 | 197 | 262 | 328 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 1 | I | I | MD | KC7140 | 197 | 262 | 328 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 2 | S | O | MD | KC7140 | 492 | 590 | 689 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 2 | S | I | MD | KC7140 | 492 | 590 | 689 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 2 | U | O | MD | KC7140 | 328 | 426 | 525 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 2 | U | I | MD | KC7140 | 328 | 426 | 525 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 2 | I | O | MD | KC7140 | 197 | 262 | 328 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 2 | I | I | MD | KC7140 | 197 | 262 | 328 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 3 | S | O | MD | KC7140 | 328 | 426 | 525 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 3 | S | I | MD | KC7140 | 328 | 426 | 525 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 3 | U | O | MD | KC7140 | 262 | 361 | 459 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 3 | U | I | MD | KC7140 | 262 | 361 | 459 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 3 | I | O | MD | KC7140 | 164 | 230 | 295 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| 3 | I | I | MD | KC7140 | 164 | 230 | 295 | SFM | .003–.005 | .003–.006 | .004–.007 | |
| Pollici | ||||||||||||
| Gruppo materiali | Sede | Sede | Geometria | Qualità | Velocità di taglio | Velocità di avanzamento consigliata (f) rispetto al diametro | ||||||
| Intervallo | ||||||||||||
| Min | Valore iniziale | Max | Ø | DFR02... .500–.625" | DFR03... .688–.750" | DFR04... .813–1.00" | ||||||
| K | 1 | S | O | GD | KCPK10 | 656 | 787 | 984 | SFM | .004–.007 | .005–.008 | .006–.009 |
| I | LD | KCU40 | ||||||||||
| U | O | GD | KCU25 | 394 | 508 | 656 | SFM | .004–.007 | .005–.008 | .006–.009 | ||
| I | LD | KC7140 | ||||||||||
| I | O | GD | KCU40 | 262 | 328 | 410 | SFM | .004–.007 | .005–.008 | .005–.009 | ||
| I | LD | KC7140 | ||||||||||
| 2 | S | O | GD | KCPK10 | 590 | 722 | 853 | SFM | .004–.007 | .005–.008 | .006–.009 | |
| I | LD | KCU40 | ||||||||||
| U | O | GD | KCU25 | 361 | 459 | 558 | SFM | .004–.007 | .005–.008 | .005–.009 | ||
| I | LD | KC7140 | ||||||||||
| I | O | GD | KCU40 | 262 | 328 | 394 | SFM | .004–.007 | .005–.008 | .006–.009 | ||
| I | LD | KC7140 | ||||||||||
| 3 | S | O | GD | KCPK10 | 590 | 722 | 853 | SFM | .004–.007 | .005–.008 | .005–.009 | |
| I | LD | KCU40 | ||||||||||
| U | O | GD | KCU25 | 361 | 459 | 558 | SFM | .004–.007 | .005–.008 | .006–.009 | ||
| I | LD | KC7140 | ||||||||||
| I | O | GD | KCU40 | 262 | 328 | 394 | SFM | .004–.007 | .005–.008 | .005–.009 | ||
| I | LD | KC7140 | ||||||||||
| Pollici | ||||||||||||
| Velocità di taglio | ||||||||||||
| Intervallo | Velocità di avanzamento consigliata (f) rispetto al diametro | |||||||||||
| Gruppo materiali | Condizione | Sede | Geometria | Qualità | Min | Valore iniziale | Max | Ø | DFR02... .500"–.625" | DFR03... .688"–.750" | DFR04... .813"–1.00" | |
| K | 1 | S | O | GD | KCPK10 | 656 | 787 | 984 | SFM | .004–.007 | .005–.008 | .006–.009 |
| 1 | S | I | LD | KCU40 | 656 | 787 | 984 | SFM | .004–.007 | .005–.008 | .006–.009 | |
| 1 | U | O | GD | KCU25 | 394 | 508 | 656 | SFM | .004–.007 | .005–.008 | .006–.009 | |
| 1 | U | I | LD | KC7140 | 394 | 508 | 656 | SFM | .004–.007 | .005–.008 | .006–.009 | |
| 1 | I | O | GD | KCU40 | 262 | 328 | 410 | SFM | .004–.007 | .005–.008 | .005–.009 | |
| 1 | I | I | LD | KC7140 | 262 | 328 | 410 | SFM | .004–.007 | .005–.008 | .005–.009 | |
| 2 | S | O | GD | KCPK10 | 590 | 722 | 853 | SFM | .004–.007 | .005–.008 | .006–.009 | |
| 2 | S | I | LD | KCU40 | 590 | 722 | 853 | SFM | .004–.007 | .005–.008 | .006–.009 | |
| 2 | U | O | GD | KCU25 | 361 | 459 | 558 | SFM | .004–.007 | .005–.008 | .005–.009 | |
| 2 | U | I | LD | KC7140 | 361 | 459 | 558 | SFM | .004–.007 | .005–.008 | .005–.009 | |
| 2 | I | O | GD | KCU40 | 262 | 328 | 394 | SFM | .004–.007 | .005–.008 | .006–.009 | |
| 2 | I | I | LD | KC7140 | 262 | 328 | 394 | SFM | .004–.007 | .005–.008 | .006–.009 | |
| 3 | S | O | GD | KCPK10 | 590 | 722 | 853 | SFM | .004–.007 | .005–.008 | .005–.009 | |
| 3 | S | I | LD | KCU40 | 590 | 722 | 853 | SFM | .004–.007 | .005–.008 | .005–.009 | |
| 3 | U | O | GD | KCU25 | 361 | 459 | 558 | SFM | .004–.007 | .005–.008 | .006–.009 | |
| 3 | U | I | LD | KC7140 | 361 | 459 | 558 | SFM | .004–.007 | .005–.008 | .006–.009 | |
| 3 | I | O | GD | KCU40 | 262 | 328 | 394 | SFM | .004–.007 | .005–.008 | .005–.009 | |
| 3 | I | I | LD | KC7140 | 262 | 328 | 394 | SFM | .004–.007 | .005–.008 | .005–.009 | |
| Pollici | ||||||||||||
| Gruppo materiali | Condizione | Sede | Geometria | Qualità | Velocità di taglio | Velocità di avanzamento consigliata (f) rispetto al diametro | ||||||
| Intervallo | ||||||||||||
| Min | Valore iniziale | Max | Ø | DFR02... .500"–.625" | DFR03... .688"–.750" | DFR04... .813"–1.00" | ||||||
| N | 1 | S | O | ST | KD1425 | 1312 | 1968 | 2624 | SFM | .003–.004 | .004–.006 | .005–.006 |
| I | ST | KD1425 | ||||||||||
| U | O | LD | KCU40 | 984 | 1312 | 1640 | SFM | .003–.004 | .004–.006 | .005–.006 | ||
| I | LD | KCU40 | ||||||||||
| I | O | LD | KCU40 | 656 | 984 | 1312 | SFM | .003–.004 | .004–.006 | .005–.006 | ||
| I | LD | KCU40 | ||||||||||
| 2 | S | O | ST | KD1425 | 1230 | 1804 | 2542 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| I | ST | KD1425 | ||||||||||
| U | O | LD | KCU40 | 820 | 1148 | 1476 | SFM | .003–.004 | .004–.006 | .005–.006 | ||
| I | LD | KCU40 | ||||||||||
| I | O | LD | KCU40 | 574 | 820 | 1066 | SFM | .003–.004 | .004–.006 | .005–.006 | ||
| I | LD | KCU40 | ||||||||||
| 3 | S | O | ST | KD1425 | 1148 | 1640 | 2132 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| I | ST | KD1425 | ||||||||||
| U | O | LD | KCU40 | 820 | 1148 | 1476 | SFM | .003–.004 | .004–.006 | .005–.006 | ||
| I | LD | KCU40 | ||||||||||
| I | O | LD | KCU40 | 492 | 820 | 1148 | SFM | .003–.004 | .004–.006 | .005–.006 | ||
| I | LD | KCU40 | ||||||||||
| 4 | S | O | ST | KD1425 | 1312 | 1968 | 2624 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| I | ST | KD1425 | ||||||||||
| U | O | LD | KCU40 | 820 | 1148 | 1486 | SFM | .003–.004 | .004–.006 | .005–.006 | ||
| I | LD | KCU40 | ||||||||||
| I | O | LD | KCU40 | 656 | 984 | 1312 | SFM | .003–.004 | .004–.006 | .005–.006 | ||
| I | LD | KCU40 | ||||||||||
| 5 | S | O | HP | KD1425 | 1312 | 1968 | 2624 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| I | HP | KD1425 | ||||||||||
| U | O | HP | KCU40 | 820 | 1148 | 1476 | SFM | .003–.004 | .004–.006 | .005–.006 | ||
| I | HP | KCU40 | ||||||||||
| I | O | HP | KCU40 | 656 | 984 | 1312 | SFM | .003–.004 | .004–.006 | .005–.006 | ||
| I | HP | KCU40 | ||||||||||
| 6 | S | O | ST | KD1425 | 1312 | 1968 | 2624 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| I | ST | KD1425 | ||||||||||
| U | O | GD | KCU40 | 820 | 1148 | 1476 | SFM | .003–.004 | .004–.006 | .005–.006 | ||
| I | GD | KCU40 | ||||||||||
| I | O | GD | KMF | 656 | 984 | 1312 | SFM | .003–.004 | .004–.006 | .005–.006 | ||
| I | GD | KMF | ||||||||||
| Pollici | ||||||||||||
| Velocità di taglio | ||||||||||||
| Intervallo | Velocità di avanzamento consigliata (f) rispetto al diametro | |||||||||||
| Gruppo materiali | Condizione | Sede | Geometria | Qualità | Min | Valore iniziale | Max | Ø | DFR02... .500"–.625" | DFR03... .688"–.750" | DFR04... .813"–1.00" | |
| N | 1 | S | O | ST | KD1425 | 1312 | 1968 | 2624 | SFM | .003–.004 | .004–.006 | .005–.006 |
| 1 | S | I | ST | KD1425 | 1312 | 1968 | 2624 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 1 | U | O | LD | KCU40 | 984 | 1312 | 1640 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 1 | U | I | LD | KCU40 | 984 | 1312 | 1640 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 1 | I | O | LD | KCU40 | 656 | 984 | 1312 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 1 | I | I | LD | KCU40 | 656 | 984 | 1312 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 2 | S | O | ST | KD1425 | 1230 | 1804 | 2542 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 2 | S | I | ST | KD1425 | 1230 | 1804 | 2542 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 2 | U | O | LD | KCU40 | 820 | 1148 | 1476 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 2 | U | I | LD | KCU40 | 820 | 1148 | 1476 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 2 | I | O | LD | KCU40 | 574 | 820 | 1066 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 2 | I | I | LD | KCU40 | 574 | 820 | 1066 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 3 | S | O | ST | KD1425 | 1148 | 1640 | 2132 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 3 | S | I | ST | KD1425 | 1148 | 1640 | 2132 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 3 | U | O | LD | KCU40 | 820 | 1148 | 1476 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 3 | U | I | LD | KCU40 | 820 | 1148 | 1476 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 3 | I | O | LD | KCU40 | 492 | 820 | 1148 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 3 | I | I | LD | KCU40 | 492 | 820 | 1148 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 4 | S | O | ST | KD1425 | 1312 | 1968 | 2624 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 4 | S | I | ST | KD1425 | 1312 | 1968 | 2624 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 4 | U | O | LD | KCU40 | 820 | 1148 | 1486 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 4 | U | I | LD | KCU40 | 820 | 1148 | 1486 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 4 | I | O | LD | KCU40 | 656 | 984 | 1312 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 4 | I | I | LD | KCU40 | 656 | 984 | 1312 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 5 | S | O | HP | KD1425 | 1312 | 1968 | 2624 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 5 | S | I | HP | KD1425 | 1312 | 1968 | 2624 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 5 | U | O | HP | KCU40 | 820 | 1148 | 1476 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 5 | U | I | HP | KCU40 | 820 | 1148 | 1476 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 5 | I | O | HP | KCU40 | 656 | 984 | 1312 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 5 | I | I | HP | KCU40 | 656 | 984 | 1312 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 6 | S | O | ST | KD1425 | 1312 | 1968 | 2624 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 6 | S | I | ST | KD1425 | 1312 | 1968 | 2624 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 6 | U | O | LD | KCU40 | 820 | 1148 | 1476 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 6 | U | I | LD | KCU40 | 820 | 1148 | 1476 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 6 | I | O | LD | KMF | 656 | 984 | 1312 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| 6 | I | I | LD | KMF | 656 | 984 | 1312 | SFM | .003–.004 | .004–.006 | .005–.006 | |
| Pollici | ||||||||||||
| Gruppo materiali | Condizione | Sede | Geometria | Qualità | Velocità di taglio | Velocità di avanzamento consigliata (f) rispetto al diametro | ||||||
| Intervallo | ||||||||||||
| Min | Valore iniziale | Max | Ø | DFR02... .500 | DFR03... .688 | DFR04... .813 | ||||||
| S | 1 | S | O | GD | KCU40 | 197 | 230 | 246 | SFM | .002–.002 | .002–.003 | .002–.004 |
| I | LD | KCU40 | ||||||||||
| U | O | GD | KCU40 | 131 | 164 | 197 | SFM | .002–.002 | .002–.003 | .002–.004 | ||
| I | LD | KC7140 | ||||||||||
| I | O | MD | KC7140 | 82 | 98 | 131 | SFM | .002–.002 | .002–.003 | .002–.004 | ||
| I | MD | KC7140 | ||||||||||
| 2 | S | O | GD | KCU40 | 164 | 197 | 230 | SFM | .002–.002 | .002–.003 | .002–.004 | |
| I | LD | KCU40 | ||||||||||
| U | O | GD | KCU40 | 98 | 131 | 164 | SFM | .002–.002 | .002–.003 | .002–.004 | ||
| I | LD | KC7140 | ||||||||||
| I | O | MD | KC7140 | 82 | 98 | 131 | SFM | .002–.002 | .002–.003 | .002–.004 | ||
| I | MD | KC7140 | ||||||||||
| 3 | S | O | GD | KCU40 | 230 | 262 | 295 | SFM | .002–.004 | .002–.003 | .002–.004 | |
| I | LD | KCU40 | ||||||||||
| U | O | GD | KCU40 | 164 | 197 | 230 | SFM | .002–.003 | .002–.004 | .002–.004 | ||
| I | LD | KC7140 | ||||||||||
| I | O | MD | KC7140 | 98 | 131 | 164 | SFM | .002–.003 | .002–.004 | .002–.004 | ||
| I | MD | KC7140 | ||||||||||
| 4 | S | O | GD | KCU40 | 230 | 262 | 295 | SFM | .002–.003 | .002–.004 | .002–.004 | |
| I | LD | KCU40 | ||||||||||
| U | O | GD | KCU40 | 164 | 197 | 230 | SFM | .002–.003 | .002–.004 | .002–.004 | ||
| I | LD | KC7140 | ||||||||||
| I | O | MD | KC7140 | 98 | 131 | 164 | SFM | .002–.003 | .002–.004 | .002–.004 | ||
| I | MD | KC7140 | ||||||||||
| Pollici | ||||||||||||
| Velocità di taglio | ||||||||||||
| Intervallo | Velocità di avanzamento consigliata (f) rispetto al diametro | |||||||||||
| Gruppo materiali | Condizione | Sede | Geometria | Qualità | Min | Valore iniziale | Max | Ø | DFR02... .500"-.625" | DFR03... .688"-.750" | DFR04... .813"-1.00" | |
| S | 1 | S | O | GD | KCU40 | 197 | 230 | 246 | SFM | .002–.002 | .002–.003 | .002–.004 |
| 1 | S | I | LD | KCU40 | 197 | 230 | 246 | SFM | .002–.002 | .002–.003 | .002–.004 | |
| 1 | U | O | GD | KCU40 | 131 | 164 | 197 | SFM | .002–.002 | .002–.003 | .002–.004 | |
| 1 | U | I | LD | KC7140 | 131 | 164 | 197 | SFM | .002–.002 | .002–.003 | .002–.004 | |
| 1 | I | O | MD | KC7140 | 82 | 98 | 131 | SFM | .002–.002 | .002–.003 | .002–.004 | |
| 1 | I | I | MD | KC7140 | 82 | 98 | 131 | SFM | .002–.002 | .002–.003 | .002–.004 | |
| 2 | S | O | GD | KCU40 | 164 | 197 | 230 | SFM | .002–.002 | .002–.003 | .002–.004 | |
| 2 | S | I | LD | KCU40 | 164 | 197 | 230 | SFM | .002–.002 | .002–.003 | .002–.004 | |
| 2 | U | O | GD | KCU40 | 98 | 131 | 164 | SFM | .002–.002 | .002–.003 | .002–.004 | |
| 2 | U | I | LD | KC7140 | 98 | 131 | 164 | SFM | .002–.002 | .002–.003 | .002–.004 | |
| 2 | I | O | MD | KC7140 | 82 | 98 | 131 | SFM | .002–.002 | .002–.003 | .002–.004 | |
| 2 | I | I | MD | KC7140 | 82 | 98 | 131 | SFM | .002–.002 | .002–.003 | .002–.004 | |
| 3 | S | O | GD | KCU40 | 230 | 262 | 295 | SFM | .002–.004 | .002–.003 | .002–.004 | |
| 3 | S | I | LD | KCU40 | 230 | 262 | 295 | SFM | .002–.004 | .002–.003 | .002–.004 | |
| 3 | U | O | GD | KCU40 | 164 | 197 | 230 | SFM | .002–.003 | .002–.004 | .002–.004 | |
| 3 | U | I | LD | KC7140 | 164 | 197 | 230 | SFM | .002–.003 | .002–.004 | .002–.004 | |
| 3 | I | O | MD | KC7140 | 98 | 131 | 164 | SFM | .002–.003 | .002–.004 | .002–.004 | |
| 3 | I | I | MD | KC7140 | 98 | 131 | 164 | SFM | .002–.003 | .002–.004 | .002–.004 | |
| 4 | S | O | GD | KCU40 | 230 | 262 | 295 | SFM | .002–.003 | .002–.004 | .002–.004 | |
| 4 | S | I | LD | KCU40 | 230 | 262 | 295 | SFM | .002–.003 | .002–.004 | .002–.004 | |
| 4 | U | O | GD | KCU40 | 164 | 197 | 230 | SFM | .002–.003 | .002–.004 | .002–.004 | |
| 4 | U | I | LD | KC7140 | 164 | 197 | 230 | SFM | .002–.003 | .002–.004 | .002–.004 | |
| 4 | I | O | MD | KC7140 | 98 | 131 | 164 | SFM | .002–.003 | .002–.004 | .002–.004 | |
| 4 | I | I | MD | KC7140 | 98 | 131 | 164 | SFM | .002–.003 | .002–.004 | .002–.004 | |
| Metrico | ||||||||||
| Gruppo materiali | Condizione | Sede | Geometria | Qualità | Velocità di taglio | Velocità di avanzamento consigliata (f) rispetto al diametro | ||||
| Intervallo | ||||||||||
| Min | Valore iniziale | Max | Ø | DFR04 20,50–24,00mm | ||||||
| N | 1 | S | O | ST | KD1425 | 396 | 720 | 841 | mm/giro | 0,06–0,08 |
| I | ST | KD1425 | ||||||||
| 2 | S | O | ST | KD1425 | 369 | 670 | 782 | mm/giro | 0,12–0,18 | |
| I | ST | KD1425 | ||||||||
| 3 | S | O | ST | KD1425 | 341 | 619 | 723 | mm/giro | 0,12–0,18 | |
| I | ST | KD1425 | ||||||||
| 4 | S | O | ST | KD1425 | 475 | 720 | 841 | mm/giro | 0,12–0,18 | |
| I | ST | KD1425 | ||||||||
| 5 | S | O | ST | KD1425 | 480 | 720 | 864 | mm/giro | 0,06–0,08 | |
| I | ST | KD1425 | ||||||||
| Pollici | ||||||||||
| Gruppo materiali | Condizione | Sede | Geometria | Qualità | Velocità di taglio | Velocità di avanzamento consigliata (f) rispetto al diametro | ||||
| Intervallo | ||||||||||
| Min | Valore iniziale | Max | Ø | DFR04 .813"–1.00" | ||||||
| N | 1 | S | O | ST | KD1425 | 1300 | 2362 | 2760 | IPR | .002–.003 |
| I | ST | KD1425 | ||||||||
| 2 | S | O | ST | KD1425 | 1209 | 2197 | 2567 | IPR | .005–.007 | |
| I | ST | KD1425 | ||||||||
| 3 | S | O | ST | KD1425 | 1118 | 2032 | 2374 | IPR | .005–.007 | |
| I | ST | KD1425 | ||||||||
| 4 | S | O | ST | KD1425 | 1560 | 2362 | 2760 | IPR | .005–.007 | |
| I | ST | KD1425 | ||||||||
| 5 | S | O | ST | KD1425 | 1575 | 2362 | 2834 | IPR | .002–.003 | |
| I | ST | KD1425 | ||||||||
| Metrico | ||||||||||
| Velocità di taglio | ||||||||||
| Intervallo | Velocità di avanzamento consigliata (f) rispetto al diametro | |||||||||
| Gruppo materiali | Condizione | Sede | Geometria | Qualità | Min | Valore iniziale | Max | Ø | DFR04 20,50–24,00 mm | |
| N | 1 | S | O | ST | KD1425 | 396 | 720 | 841 | mm/r | 0,06–0,08 |
| 1 | S | I | ST | KD1425 | 396 | 720 | 841 | mm/r | 0,06–0,08 | |
| 2 | S | O | ST | KD1425 | 369 | 670 | 782 | mm/r | 0,12–0,18 | |
| 2 | S | I | ST | KD1425 | 369 | 670 | 782 | mm/r | 0,12–0,18 | |
| 3 | S | O | ST | KD1425 | 341 | 619 | 723 | mm/r | 0,12–0,18 | |
| 3 | S | I | ST | KD1425 | 341 | 619 | 723 | mm/r | 0,12–0,18 | |
| 4 | S | O | ST | KD1425 | 475 | 720 | 841 | mm/r | 0,12–0,18 | |
| 4 | S | I | ST | KD1425 | 475 | 720 | 841 | mm/r | 0,12–0,18 | |
| 5 | S | O | ST | KD1425 | 480 | 720 | 864 | mm/r | 0,06–0,08 | |
| 5 | S | I | ST | KD1425 | 480 | 720 | 864 | mm/r | 0,06–0,08 | |
| ATTENZIONE: Durante le operazioni di foratura passante, viene prodotto un dischetto quando l'utensile oltrepassa il pezzo. Quando la punta è ferma e il pezzo è in rotazione, un dischetto può essere espulso dal mandrino per effetto della forza centrifuga. Adottare le adeguate misure di sicurezza. |
| D | LS |
| 20 | 50 |
I have read and accepted the Terms & Conditions of use
ISO Catalogo
ANSI Catalogo
to find similar products.Please select a file to download
Models
. Please enter the desired qty for the material(s) you want to include in your promotion or Proceed Without Promotion and only your base materials will be added to the cart.
Minimum quantity should be
| SAP Material Number | ISO Catalogo | Grade |
|---|
You are about to leave the Solution building process.
Are you sure you want to leave?
