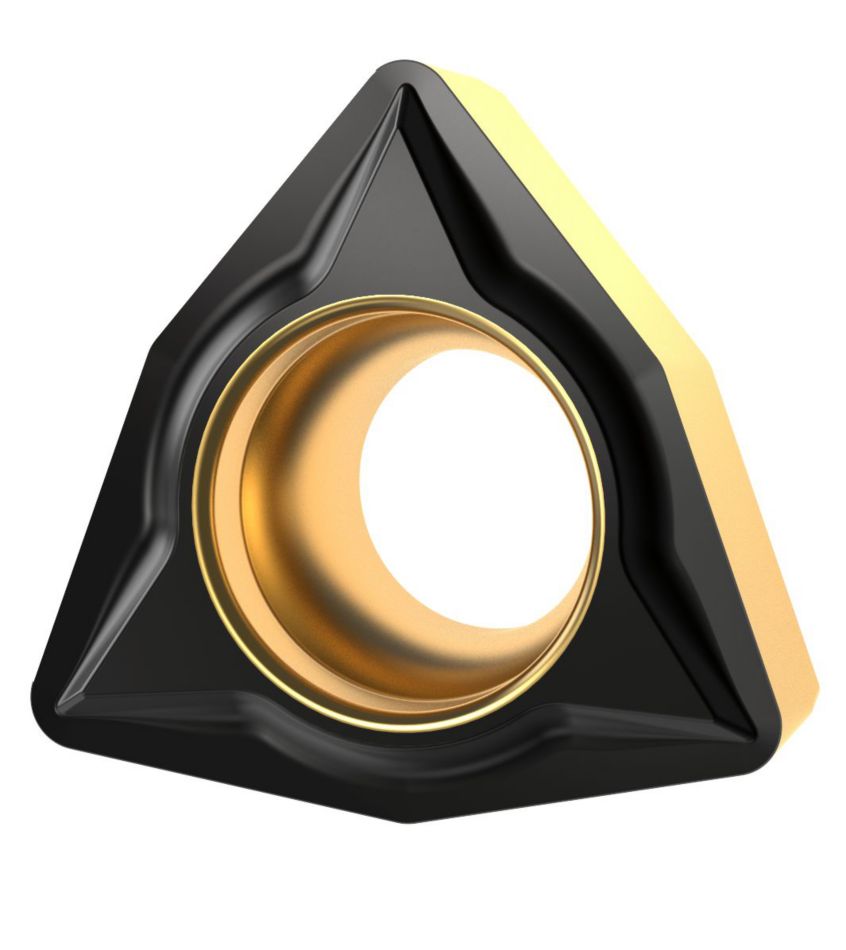

| Material Number | 3755664 |
| ISO Catalog ID | WPMT06T308LF |
| ANSI Catalog ID | WPMT3252LF |
| Grade | KCM15 |
| [D] Insert IC Size | 9.525 mm |
| [D] Insert IC Size | .375 in |
| [L10] Insert Cutting Edge Length | 6.515 mm |
| [L10] Insert Cutting Edge Length | .2565 in |
| [S] Insert Thickness | 3.97 mm |
| [S] Insert Thickness | .1563 in |
| [Rε] Corner Radius | 0.8 mm |
| [Rε] Corner Radius | .0312 in |
| [D1] Insert Hole Size | 4.4 mm |
| [D1] Insert Hole Size | .1732 in |
Grades
KCM15
Composition: Nanostructured PVD TiAlN coated fine-grain carbide with a golden TiN top layer for better wear identification and superior surface finish.
Application: A state-of-the-art surface condition enhances low adhesion potential to stainless steel materials and offers superior chip evacuation even in low-pressure coolant applications. Applicable for stainless steel and high-temperature resistant materials.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
