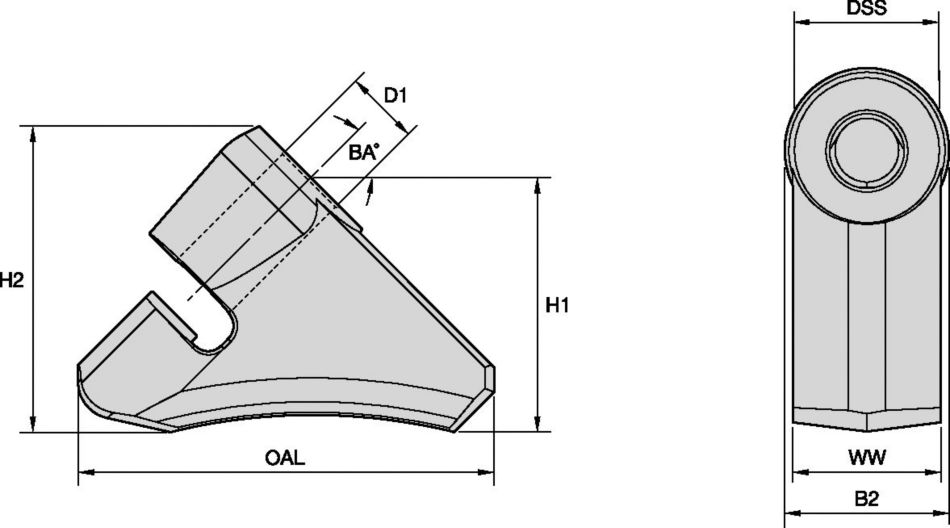

| Número de material | 1012399 |
| Referencia ISO | 2356IH BLOCK |
| Referencia ANSI | 2356IH BLOCK |
| Superficie de asiento de diámetro [DSS] | 50.6 mm |
| Superficie de asiento de diámetro [DSS] | 1.99 in |
| Adaptador/Mango/Diámetro de mandrinado [D1] | 25.59 mm |
| Adaptador/Mango/Diámetro de mandrinado [D1] | 1.0075 in |
| Altura total [H2] | 105 mm |
| Altura total [H2] | 4.13 in |
| Longitud total [OAL] | 142.49 mm |
| Longitud total [OAL] | 5.61 in |
| Ancho total [B2] | 56.8 mm |
| Ancho total [B2] | 2.24 in |
| Altura de centrado [H1] | 86.9 mm |
| Altura de centrado [H1] | 3.42 in |
| Longitud de soldadura [LW] | 142.5 mm |
| Longitud de soldadura [LW] | 5.61 in |
| Ancho de soldadura [WW] | 50.8 mm |
| Ancho de soldadura [WW] | 2 in |
| Ángulo de bloque [BA] | 45 |
