HARVI™ I TE Four Flute End Mill for Roughing and Finishing Covering the Broadest Range of Applications and Materials

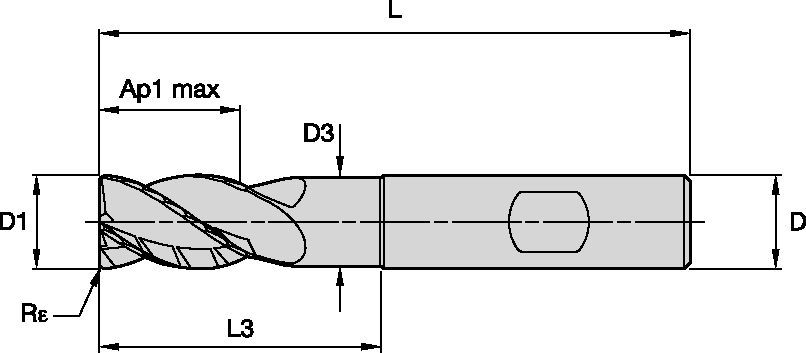

HARVI™ I TE • Radiused • 4 Flutes • Necked • Weldon® Shank • Inch

Name: HARVI™ I TE • Radiused • 4 Flutes • Necked • Weldon® Shank • Inch
SKU: 100159654
Rating: 0 (0 reviews)

HARVI™ I TE Four Flute End Mill for Roughing and Finishing Covering the Broadest Range of Applications and Materials

Vlastnosti a výhody

Versatile solid carbide end mill for steels, stainless steel, cast iron, and high temperature alloys.

HARVI™ I TE solid carbide end mills cover a variety of operations, including dynamic milling, and extreme ramping operations.

HARVI™ I TE solid carbide end mills stand for maximum metal removal, maximum productivity, maximum benefit.

HARVI™ I TE solid carbide end mills feature asymmetrical divided flutes, variable helix, twisted end face, faceted eccentric relief, and chip gashes within the flutes.

Centre cutting for plunging and ramping operations.

Použití

Trochoidal Milling
Helical Milling
Plunge Milling
Ramping: Blank
Slotting: Square End
Tool Dimensions: Flute Configuration: 4
Shank - Cylindrical Weldon
Pocketing
Side Milling/Shoulder Milling: Roughing

Adjustment Factor for Feed and Speed Calculation • Inch

	Ae/D	%2	%4	%5	%8	%10	%12	%20	%30	%40	%50	%100
Hız faktörü	Kv	2,1 3,6	1,6 3	1,6 2,5	1,6	1,4	1,38	1,3	1,2	1,1	1	0,9
İlerleme faktörü	KFz	3,58	2,56	2,3	1,84	1,67	1,54	1,25	1,09	1,02	1	1

HARVI™ I TE • 4 Flutes • Application Data • Inch


		Dik kenar frezeleme (A) ve Kanal frezeleme (B)						Kenar frezeleme (A) için önerilen diş başına ilerleme (IPT = inç/diş). Kanal açma (B) için IPT %20 azaltılır.
					KCPM15			D1 Çap
		A		B	Kesme hızı vc SFM			frac.	1/8	5/32	3/16	7/32	1/4	9/32	5/16	3/8	7/16	1/2	5/8	3/4	1	1 1/4
Malzeme grubu		ap	ae	ap	Min.		Maks.	dec.	.1250	.1563	.1875	.2188	.2500	.2813	.3125	.3750	.4375	.5000	.6250	.7500	1.0000	1.2500
P	0	1.5 x D1	0.5 x D1	1.25 x D1	490	–	660	IPT	.0010	.0012	.0015	.0017	.0020	.0023	.0026	.0030	.0034	.0037	.0043	.0048	.0054	.0054
	1	1.5 x D1	0.5 x D1	1.25 x D1	490	–	660	IPT	.0010	.0012	.0015	.0017	.0020	.0023	.0026	.0030	.0034	.0037	.0043	.0048	.0054	.0054
	2	1.5 x D1	0.5 x D1	1.25 x D1	460	–	620	IPT	.0010	.0012	.0015	.0017	.0020	.0023	.0026	.0030	.0034	.0037	.0043	.0048	.0054	.0054
	3	1.5 x D1	0.5 x D1	1.25 x D1	390	–	520	IPT	.0008	.0010	.0012	.0014	.0017	.0019	.0021	.0025	.0029	.0032	.0038	.0042	.0050	.0053
	4	1.5 x D1	0.5 x D1	1.25 x D1	300	–	490	IPT	.0007	.0009	.0011	.0013	.0015	.0017	.0019	.0022	.0025	.0028	.0033	.0037	.0042	.0044
	5	1.5 x D1	0.5 x D1	1.25 x D1	200	–	330	IPT	.0007	.0008	.0010	.0012	.0014	.0015	.0017	.0020	.0023	.0025	.0030	.0034	.0040	.0043
	6	1.5 x D1	0.5 x D1	1.25 x D1	160	–	250	IPT	.0006	.0007	.0008	.0010	.0011	.0013	.0014	.0017	.0019	.0021	.0025	.0027	.0031	.0032
M	1	1.5 x D1	0.5 x D1	1.25 x D1	300	–	380	IPT	.0008	.0010	.0012	.0014	.0017	.0019	.0021	.0025	.0029	.0032	.0038	.0042	.0050	.0053
	2	1.5 x D1	0.5 x D1	1.25 x D1	200	–	260	IPT	.0007	.0008	.0010	.0012	.0014	.0015	.0017	.0020	.0023	.0025	.0030	.0034	.0040	.0043
	3	1.5 x D1	0.5 x D1	1.00 x D1	200	–	230	IPT	.0006	.0007	.0008	.0010	.0011	.0013	.0014	.0017	.0019	.0021	.0025	.0027	.0031	.0032
K	1	1.5 x D1	0.5 x D1	1.00 x D1	390	–	490	IPT	.0010	.0012	.0015	.0017	.0020	.0023	.0026	.0030	.0034	.0037	.0043	.0048	.0054	.0054
	2	1.5 x D1	0.5 x D1	1.00 x D1	360	–	460	IPT	.0008	.0010	.0012	.0014	.0017	.0019	.0021	.0025	.0029	.0032	.0038	.0042	.0050	.0053
	3	1.5 x D1	0.5 x D1	1.00 x D1	360	–	430	IPT	.0007	.0008	.0010	.0012	.0014	.0015	.0017	.0020	.0023	.0025	.0030	.0034	.0040	.0043
S	1	1.5 x D1	0.3 x D1	0.75 x D1	160	–	300	IPT	.0008	.0010	.0012	.0014	.0017	.0019	.0021	.0025	.0029	.0032	.0038	.0042	.0050	.0053
	2	1.5 x D1	0.3 x D1	0.75 x D1	160	–	260	IPT	.0007	.0008	.0010	.0012	.0014	.0015	.0017	.0020	.0023	.0025	.0030	.0034	.0040	.0043
	3	1.5 x D1	0.5 x D1	0.50 x D1	80	–	130	IPT	.0004	.0005	.0007	.0008	.0009	.0010	.0011	.0013	.0015	.0017	.0020	.0023	.0027	.0029
	4	1.5 x D1	0.5 x D1	1.25 x D1	160	–	200	IPT	.0005	.0007	.0008	.0010	.0012	.0014	.0016	.0019	.0021	.0023	.0028	.0031	.0036	.0039
H	1	1.5 x D1	0.5 x D1	1.00 x D1	260	–	460	IPT	.0007	.0009	.0011	.0013	.0015	.0017	.0019	.0022	.0025	.0028	.0033	.0037	.0042	.0044
	2	1.5 x D1	0.2 x D1	1.00 x D1	230	–	390	IPT	.0006	.0007	.0008	.0010	.0011	.0013	.0014	.0017	.0019	.0021	.0025	.0027	.0031	.0032
