| Objednací číslo | 1182000 |
| ISO katalogové ID | SNGA150616T02020 |
| ANSI katalogové ID | SNGA544T |
| Grade | KY3500 |

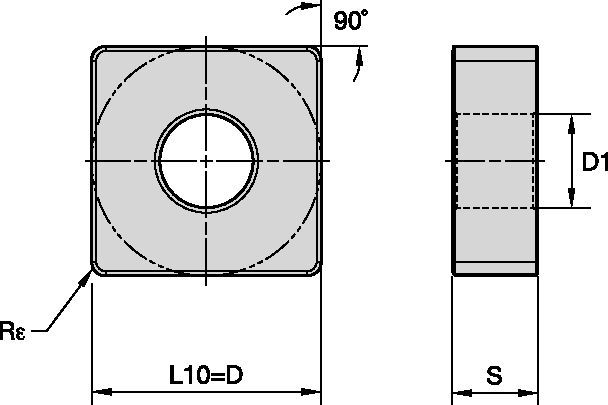

| [D] Insert IC Size | 15.875 mm |
| [D] Insert IC Size | .625 in |
| [L10] Insert Cutting Edge Length | 15.875 mm |
| [L10] Insert Cutting Edge Length | .625 in |
| [S] Insert Thickness | 6.35 mm |
| [S] Insert Thickness | .25 in |
| [Rε] Corner Radius | 1.6 mm |
| [Rε] Corner Radius | .0625 in |
Karbidy
KY3500
A ceramic cutting material based on micro-grain Si3N4 primarily for use in light to general machining of gray cast iron and ferritic ductile cast iron. Dry machining is recommended.
