Tapping: Blind Hole
Class of Fit: 6HX
DIN number 371
Chamfer Form E (1.5–2)
Through Coolant: Axial: Tapping
HM
Manufacturer’s Specs: M
Tapping Helix Angle: 0°Downloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 5551080 |
| ISO katalogové ID | T471M120X175R6HX |
| ANSI katalogové ID | T471M120X175R6HX |
| Grade | KCN14 |
| [D1-TDZ] Thread Diameter Size | M12 X 1.75 |
| [L] Overall Length | 100 mm |
| [L] Overall Length | 3.94 in |
| [L3] Thread Length | 21 mm |
| [L3] Thread Length | .83 in |
| [L2] Useable Length | 48 mm |
| [L2] Useable Length | 1.89 in |
| [D] Adapter / Shank / Bore Diameter | 12 mm |
| [D] Adapter / Shank / Bore Diameter | .4724 in |
| [Z] Number of Flutes | 3 |
| Thread Tolerance Class ISO | 6HX-I |

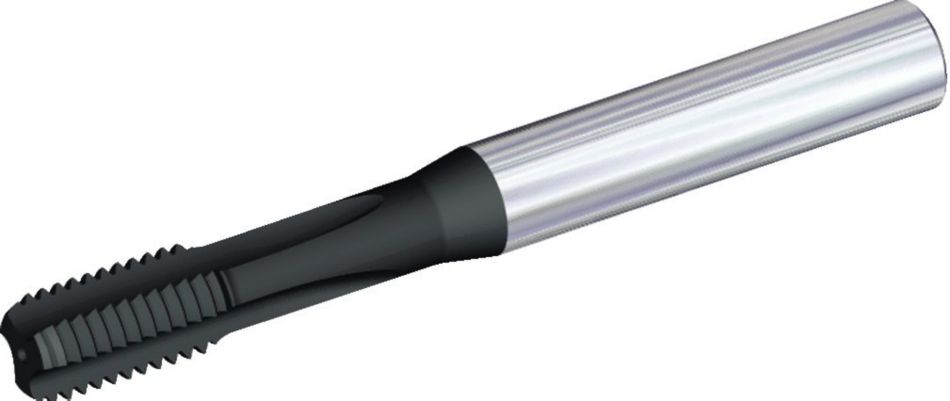

Tapping: Blind HoleClass of Fit: 6HXDIN number 371Chamfer Form E (1.5–2)Through Coolant: Axial: TappingHMManufacturer’s Specs: MTapping Helix Angle: 0°Karbidy
KCN14
Coated carbide, PVD — two-layer coating over fine-grain carbide. Coating consists of low-friction CrC/C over wear-resistant TiN. CrC/C resists galling of non-ferrous materials to the tap. Provides superior performance for tapping cast aluminum and other non-ferrous materials.
Vytvořit řešení pro výpočet posuvů a rychlosti
Po vytvoření řešení stačí vybrat ikonu Posuvy & Rychlosti a náš systém poskytne doporučení. Informace můžete upravit přidáním zařízení a specifikací nebo provést úpravy pomocí posuvníků.
| tolerance stopky | |
| D | tolerance h6 + / - |
| 6 | +0, -0,008 |
| 8 | +0, -0,009 |
| 12 | +0, -0,011 |
| tolerance stopky | |
| D | tolerance h6 + / - |
| .250–.375 | +0, -.0004 |
| .438–.625 | +0, -.0004 |
