KenCut™ HM Solid Carbide End Mill for Finishing of Steels and Hard Materials

KenCut™ HM • F4AL-WLMX • Ball Nose • 4 Flutes • Tapered Neck • Plain Shank • Metric

Name: KenCut™ HM • F4AL-WLMX • Ball Nose • 4 Flutes • Tapered Neck • Plain Shank • Metric
SKU: 100003483
Rating: 0 (0 reviews)

KenCut™ HM Solid Carbide End Mill for Finishing of Steels and Hard Materials

Features and benefits

Centre cutting for plunging and ramping operations.

Solid carbide end mills for machining of hard materials greater than 60HRC.

Uses and application

Side Milling/Shoulder Milling: Ball Nose
3D Profiling

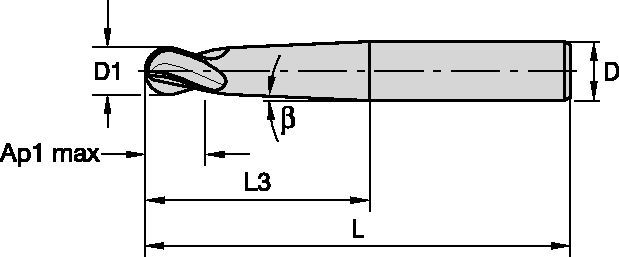

Tool Dimensions: Flute Configuration: 4
Helix Angle: 30°
Corner Style: Ball Nose

. Please enter the desired qty for the material(s) you want to include in your promotion or Proceed Without Promotion and only your base materials will be added to the cart.

Parmak freze toleransları
D1	Tolerans h8 + / -	D	Tolerans h6 + / -
≤3	+0/-0,014	≤3	+0/-0,006
3–6	+0/-0,018	3–6	+0/-0,008
6–10	+0/-0,022	6–10	+0/-0,009
10–18	+0/-0,027	10–18	+0/-0,011
18–30	+0/-0,033	18–30	+0/-0,013


		Profil işleme		KC639M		Finishing Feed per Tooth fz information is for side milling (A).
		A		Kesme hızı; vc m/dk.			D1 Çap
Malzeme grubu		ap	ae	Min.	Maks.	mm	3,0	4,0	5,0	6,0	8,0	10,0
P	3	0,04 x D	0,04 x D	416	468	fz	0,080	0,108	0,137	0,168	0,231	0,279
	4	0,04 x D	0,04 x D	364	416	fz	0,073	0,099	0,125	0,152	0,207	0,249
H	1	0,03 x D	0,03 x D	290	406	fz	0,078	0,106	0,134	0,162	0,221	0,266
	2	0,03 x D	0,03 x D	203	348	fz	0,059	0,080	0,101	0,122	0,166	0,199
	3	0,02 x D	0,02 x D	216	324	fz	0,050	0,067	0,084	0,102	0,139	0,168
	4	0,02 x D	0,02 x D	180	252	fz	0,033	0,045	0,056	0,068	0,093	0,112


		Profil işleme		KC639M		Roughing Feed per Tooth fz information is for side milling (A).
		A		Kesme hızı; vc m/dk.			D1 Çap
Malzeme grubu		ap	ae	Min.	Maks.	mm	3,0	4,0	5,0	6,0	8,0	10,0
P	3	0,2 x D	0,1 x D	208	234	fz	0,023	0,031	0,040	0,049	0,067	0,081
	4	0,2 x D	0,1 x D	182	208	fz	0,021	0,029	0,036	0,044	0,060	0,073
H	1	0,15 x D	0,1 x D	140	196	fz	0,032	0,043	0,054	0,066	0,090	0,109
	2	0,1 x D	0,075 x D	119	204	fz	0,036	0,048	0,061	0,074	0,101	0,121
	3	0,05 x D	0,05 x D	138	207	fz	0,041	0,055	0,069	0,084	0,114	0,138
	4	0,05 x D	0,05 x D	115	161	fz	0,027	0,037	0,046	0,056	0,076	0,092


		Profil işleme		KC639M		Semi-Finishing Feed per Tooth fz information is for side milling (A).
		A		Kesme hızı; vc m/dk.			D1 Çap
Malzeme grubu		ap	ae	Min.	Maks.	mm	3,0	4,0	5,0	6,0	8,0	10,0
P	3	0,1 x D	0,05 x D	272	306	fz	0,052	0,070	0,089	0,109	0,150	0,182
	4	0,1 x D	0,05 x D	238	272	fz	0,048	0,064	0,081	0,099	0,134	0,162
H	1	0,07 x D	0,1 x D	200	280	fz	0,060	0,080	0,102	0,123	0,168	0,203
	2	0,05 x D	0,04 x D	161	276	fz	0,052	0,070	0,088	0,107	0,145	0,174
	3	0,03 x D	0,03 x D	174	261	fz	0,047	0,063	0,079	0,096	0,130	0,158
	4	0,03 x D	0,03 x D	145	203	fz	0,031	0,042	0,053	0,064	0,087	0,105
