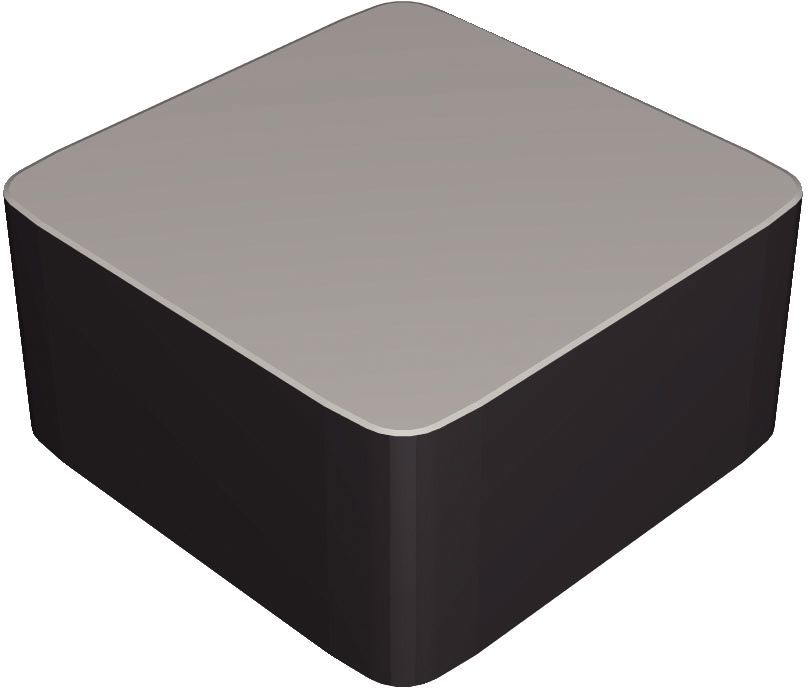

Kendex™ SNGN ISO/ANSI Turning Insert 1203684 - Kennametal
Product Similar To :
Back To |
Kendex™ • Negative Inserts • SNGN
ISO Turning Insert • Negative S-Style
Material Number1203684
ISO Catalog IDSNGN150712T20015ANSI Catalog IDSNG553T8015
List Price
$54.56/each
Discount
Your Price
/each
In StockThis item is no longer availableLonger Delivery
Material Pricing Group
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
- S High-Temp Alloys
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
MetricInch
| Material Number | 1203684 |
| ISO Catalog ID | SNGN150712T20015 |
| ANSI Catalog ID | SNG553T8015 |
| Grade | KY4300 |
| [D] Insert IC Size | 15.875 mm |
| [D] Insert IC Size | 0.625 in |
| [L10] Insert Cutting Edge Length | 15.875 mm |
| [L10] Insert Cutting Edge Length | 0.625 in |
| [S] Insert Thickness | 7.94 mm |
| [S] Insert Thickness | 0.3125 in |
| [Rε] Corner Radius | 1.2 mm |
| [Rε] Corner Radius | 0.047 in |
Workpiece Materials
- High-Temp Alloys
Grades
KY4300
An Al2O3 matrix reinforced with SiC whiskers for excellent toughness suited for machining high-temperature and ferrous alloys with a high Brinell hardness.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
