| Material Number | 1864885 |

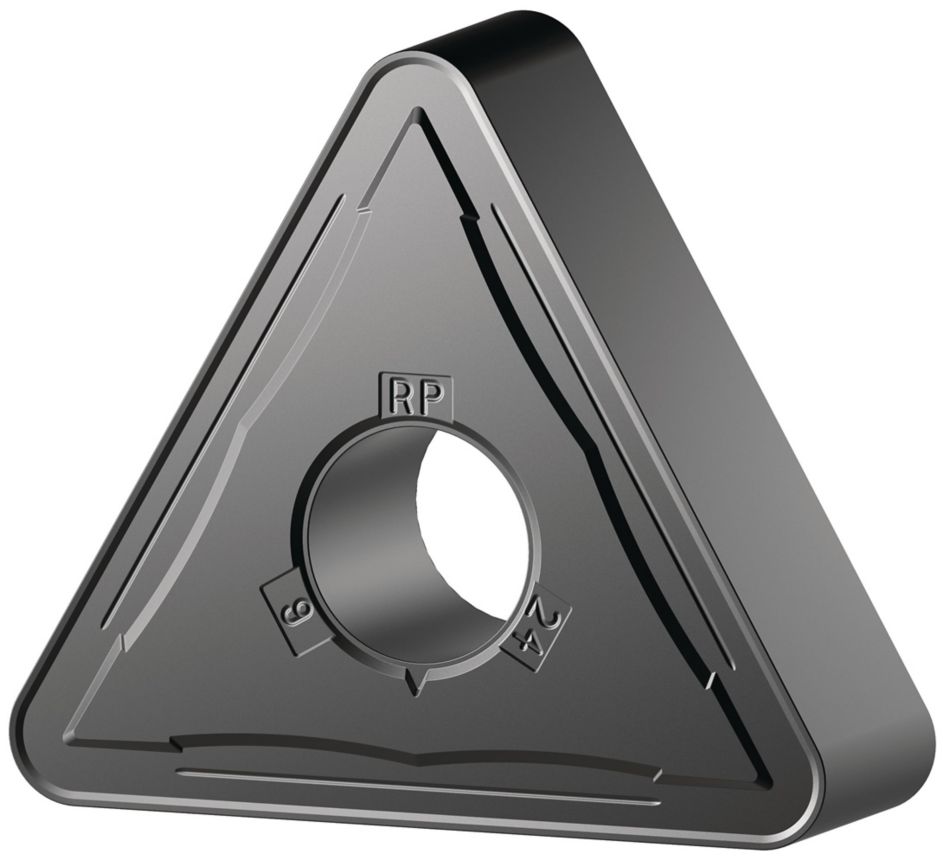

| ISO Catalog ID | TNMG160408RP |
| ANSI Catalog ID | TNMG332RP |
| Grade | KC9245 |
| [D] Insert IC Size | 9.525 mm |
| [D] Insert IC Size | 0.375 in |
| [L10] Insert Cutting Edge Length | 16.498 mm |
| [L10] Insert Cutting Edge Length | 0.6495 in |
| [S] Insert Thickness | 4.763 mm |
| [S] Insert Thickness | 0.1875 in |
| [Rε] Corner Radius | 0.8 mm |
| [Rε] Corner Radius | 0.031 in |
| [D1] Insert Hole Size | 3.81 mm |
| [D1] Insert Hole Size | 0.15 in |
Grades
KC9245
composition: A multi-layered MTCVD coating over a super-tough
substrate.
application: This MTCVD coated carbide grade is engineered to take on
the most brutal cast stainless steel machining applications. Its substrate
withstands heavy interruptions, while its polished surface resists build-up,
even at slow cutting speeds. Additionally, its wear-resistant coating
resists the micro-chipping common when machining austenitic stainless
steel. The KC9245 grade is also available in insert sizes and geometries
appropriate for heavy feeds and large depths-of-cut.
