ThreadingDownloaded file will be available after import in the {{cadTool}} tool library.
| Número de material | 1136992 |
| ID do catálogo ISO | LSASR2020K16 |
| ID do catálogo ANSI | LSASR2020K16 |

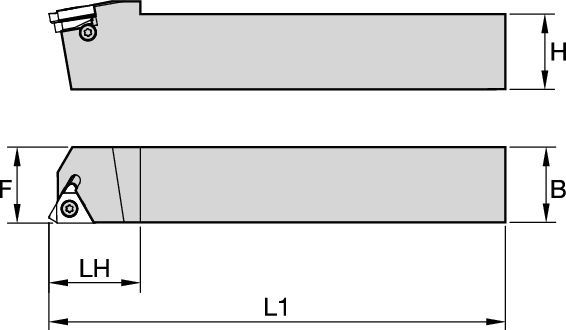

| [H] Shank Height | 20 mm |
| [H] Shank Height | .7874 in |
| [B] Shank Width | 20 mm |
| [B] Shank Width | .7874 in |
| [F] F Dimension | 20 mm |
| [F] F Dimension | .7874 in |
| [L1] Tool Length | 125 mm |
| [L1] Tool Length | 4.921 in |
| Gage Insert | LT16ER |
| Shim Screw ID Drive Size | T10 |
| Clamp Screw ID Drive Size | T15 |
| Insert Screw ID Drive Size | T10 |
ThreadingCriar solução para calcular avanços e velocidade
Após criar uma solução basta escolher o ícone Avanços & Velocidades e o nosso sistema irá fornecer recomendações. Pode personalizar as informações adicionando a sua máquina e especificações ou fazer ajustes utilizando os controlos deslizantes.
