Internal Retainer
Cutting Conditions: Light
Cutting Conditions: Medium
Insert Type: Plug
Tool with Puller GrooveDownloaded file will be available after import in the {{cadTool}} tool library.
| Numéro de matériel | 1010324 |
| Ref. ISO Catalogue | U50KL 50 |
| Ref. ANSI Catalogue | U50KL 50 |
| Nuance | K3055 |

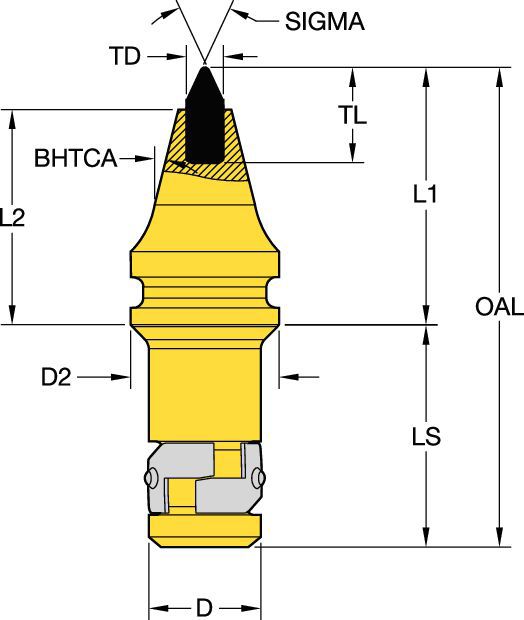

| [D] Diamètre de queue/d’alésage | 20.3 mm |
| [D] Diamètre de queue/d’alésage | .8 in |
| [D2] Diamètre du corps du côté pièce à usiner | 26.9 mm |
| [D2] Diamètre du corps du côté pièce à usiner | 1.06 in |
| [L1] Longueur de référence | 46.7 mm |
| [L1] Longueur de référence | 1.84 in |
| [LS] Longueur de la queue | 40.3 mm |
| [LS] Longueur de la queue | 1.59 in |
| [OAL] Longueur totale | 87 mm |
| [OAL] Longueur totale | 3.43 in |
| Angle de point inclus [SIGMA] | 50 |
| [TD] Diamètre d’extrémité | 6.7 mm |
| [TD] Diamètre d’extrémité | .26 in |
Internal RetainerCutting Conditions: LightCutting Conditions: MediumInsert Type: PlugTool with Puller GrooveCAD Drawings Models
