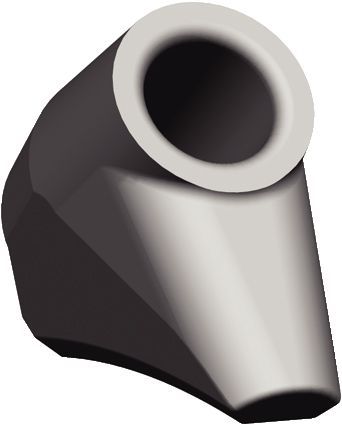

IH Treatment
Double RotatingDownloaded file will be available after import in the {{cadTool}} tool library.
| Número de material | 5354621 |
| Referencia ISO | K175-35 SLIM BLOCK |
| Referencia ANSI | K175-35 SLIM BLOCK |
| Superficie de asiento de diámetro [DSS] | 78.3 mm |
| Superficie de asiento de diámetro [DSS] | 3.08 in |
| Adaptador/Mango/Diámetro de mandrinado [D1] | 50.8 mm |
| Adaptador/Mango/Diámetro de mandrinado [D1] | 2 in |
| Altura total [H2] | 135.128 mm |
| Altura total [H2] | 5.32 in |
| Longitud total [OAL] | 165.656 mm |
| Longitud total [OAL] | 6.64 in |
| Ancho total [B2] | 95.2 mm |
| Ancho total [B2] | 3.75 in |
| Altura de centrado [H1] | 102.87 mm |
| Altura de centrado [H1] | 4.05 in |
| Longitud de soldadura [LW] | 146.812 mm |
| Longitud de soldadura [LW] | 5.78 in |
| Ancho de soldadura [WW] | 72.39 mm |
| Ancho de soldadura [WW] | 2.85 in |
| Ángulo de bloque [BA] | 35 |
