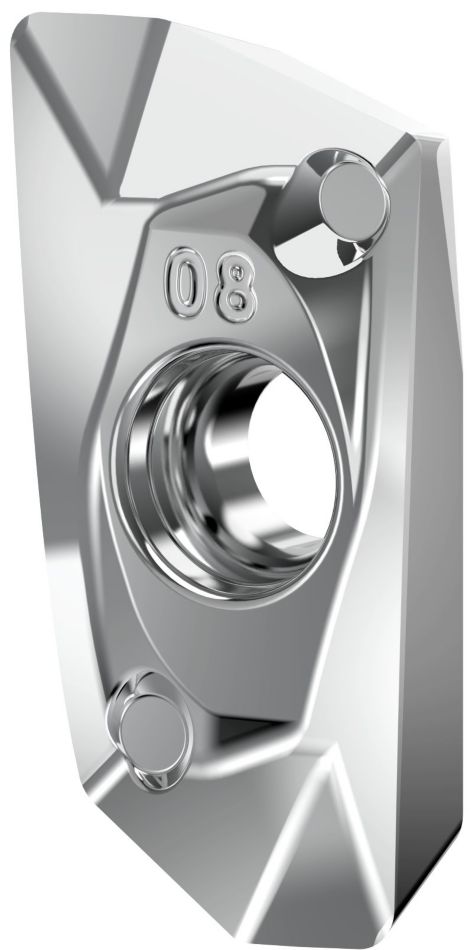

    Mill 1-14™ • Carbide Insert • EDCT-E.LDJ • Light Machining of Aluminum

    Shoulder milling insert with two cutting edges per insert, precision ground

    Material Number3324726

    ISO Catalog IDEDCT140424PDERLDJANSI Catalog IDEC1424ELDJ

    Mill 1-14 Carbide Insert EDCT-E.LDJ Light Machining of Aluminum 3324726 EC1424ELDJ - Kennametal.com
    Mill 1-14 Carbide Insert EDCT-E.LDJ Light Machining of Aluminum 3324726 EC1424ELDJ - Kennametal.com
    Mill 1-14 Carbide Insert EDCT-E.LDJ Light Machining of Aluminum 3324726 EC1424ELDJ - Kennametal.com
    Open expanded view
    Mill 1-14 Carbide Insert EDCT-E.LDJ Light Machining of Aluminum 3324726 EC1424ELDJ - Kennametal.com
    Mill 1-14 Carbide Insert EDCT-E.LDJ Light Machining of Aluminum 3324726 EC1424ELDJ - Kennametal.com
    Generic representation
    List Price
    $28.20/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • N Non-Ferrous
    This export format is not yet supported for this category.

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 3324726
    Metric
    Inch
    Material Number3324726
    ISO Catalog IDEDCT140424PDERLDJ
    ANSI Catalog IDEC1424ELDJ
    GradeKC422M
    [LI] Insert Length 17.5 mm
    [LI] Insert Length 0.689 in
    [L10] Insert Cutting Edge Length15.267 mm
    [L10] Insert Cutting Edge Length0.6011 in
    [S] Insert Thickness4.5 mm
    [S] Insert Thickness0.1772 in
    [W] Insert Width 8.42 mm
    [W] Insert Width 0.332 in
    [BS] Corner Facet Length 0.99 mm
    [BS] Corner Facet Length 0.039 in
    [Rε] Corner Radius 2.375 mm
    [Rε] Corner Radius 0.094 in
    Average Chip Thickness [HM]0.03 mm
    Average Chip Thickness [HM]0.0012 in
    Cutting Edges per Insert2
    See all Product Variants

    Workpiece Materials

    • Non-Ferrous

    Grades

    KC422M

    KC422M

    The PVD TiB2 coating is very wear resistant. Together with hard coating and a tough substrate, this is an excellent combination for medium to roughing applications in aluminum <10% silicon and other non-ferrous materials.

    Features and benefits

    • Precision ground insert with polished rake face

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    Insert Selection

    View MoreView Less

    I have read and accepted the Terms & Conditions of use

    CAD Drawings Models

    Can’t find the file type you’re looking for?

    Product data

    SDS

    Safety Data Sheets
    Create Solution to find the perfect compatible parts for your tool.

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    Mill 1-14™ • End Mill • Weldon Shank • Metric
    Mill 1-14™ • End Mill • Weldon Shank • Metric
    2478640
    25A03R044B25SED14
    M1D025ME1403W025L044
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Mill 1-14™ • End Mill • Weldon Shank • Metric
    Mill 1-14™ • End Mill • Weldon Shank • Metric
    2478642
    32A04R050B32SED14
    M1D032ME1404W032L110
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Mill 1-14™ • Shell Mill • Metric
    Mill 1-14™ • Shell Mill • Metric
    2478686
    50A06RS90ED14D
    M1D050ME1406S022L040
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Mill 1-14™ • Shell Mill • Metric
    Mill 1-14™ • Shell Mill • Metric
    2478689
    63A07RS90ED14D
    M1D063ME1407S022L040
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Mill 1-14™ • Shell Mill • Metric
    Mill 1-14™ • Shell Mill • Metric
    2478690
    80A09RS90ED14D
    M1D080ME1409S027L050
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Mill 1-14™ • End Mill • Weldon Shank • Inch
    Mill 1-14™ • End Mill • Weldon Shank • Inch
    2479506
    M1D125E1404W125L225
    M1D125E1404W125L225
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Mill 1-14™ • End Mill • Reduced Diameter Weldon Shank • Inch
    Mill 1-14™ • End Mill • Reduced Diameter Weldon Shank • Inch
    2479507
    M1D100E1403W075L175
    M1D100E1403W075L175
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Mill 1-14™ • End Mill • Weldon Shank • Inch
    Mill 1-14™ • End Mill • Weldon Shank • Inch
    2479508
    M1D100E1403W100L175
    M1D100E1403W100L175
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Mill 1-14™ • Shell Mill • Inch
    Mill 1-14™ • Shell Mill • Inch
    2479509
    M1D125E1404S050L157
    M1D125E1404S050L157
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    Mill 1-14™ • Shell Mill • Inch
    Mill 1-14™ • Shell Mill • Inch
    2479510
    M1D200E1406S075L157
    M1D200E1406S075L157
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
