| Material Nummer | 2047701 |
| ISO Katalog Nummer | OFPT07L6AFENGB |
| ANSI Katalog Nummer | OFPT64AFEN6GB |
| Sorte | KC522M |
| [D] Wendeschneidplatten-Größe (Inkreis) | 18.7 mm |
| [D] Wendeschneidplatten-Größe (Inkreis) | .736 in |
| [S] Dicke der Wendeschneidplatte | 6 mm |
| [S] Dicke der Wendeschneidplatte | .2362 in |
| [L10] Schneidkantenlänge der Wendeschneidplatte | 7.5 mm |
| [L10] Schneidkantenlänge der Wendeschneidplatte | .295 in |
| [Rε] Eckenradius | 1.2 mm |
| [Rε] Eckenradius | .0472 in |
| Mittlere Spandicke [HM] | 0.15 mm |
| Mittlere Spandicke [HM] | .0059 in |
| Schneidkanten pro Wendeschneidplatte | 8 |
Lösung erstellen, um Vorschübe und Geschwindigkeiten zu berechnen
Nachdem Sie eine Lösung erstellt haben, wählen Sie einfach das Symbol für Vorschübe und Geschwindigkeiten und unser System gibt Ihnen Empfehlungen. Sie können die Informationen anpassen, indem Sie Ihre Maschine und Spezifikationen hinzufügen oder Anpassungen mithilfe der Schieberegler vornehmen.
| Malzeme grubu | Hafif işleme | Genel amaçlı kullanım | Ağır işleme | |||
| (Hafif geometri) | – | (Sert geometri) | ||||
| Aşınma direnci |  | Tokluk | ||||
| Geometri | Kalite | Geometri | Kalite | Geometri | Kalite | |
| P1–P2 | .E..LB | KCPK30 | .E..GB | KCPM40 | .S..HB | KCPM40 |
| P3–P4 | .E..LB | KCPK30 | .E..GB | KCPK30 | .S..HB | KCPK30 |
| P5–P6 | .E..LB | KC725M | .E..GB | KC725M | .S..HB | KC725M |
| M1–M2 | .E..LB | KC725M | .E..GB | KC725M | .S..HB | KC725M |
| M3 | .E..LB | KCSM40 | .E..GB | KCSM40 | .S..HB | KCSM40 |
| K1–K2 | .E..LB | KCK15 | .E..GB | KC520M | .S..HB | KCK15 |
| K3 | .E..LB | KC520M | .E..GB | KC520M | .S..HB | KC520M |
| N1–N2 | .F..LNJ | KC410M | .F..LNJ | KC410M | .F..LNJ | KC410M |
| N3 | .F..LNJ | KC410M | .F..LNJ | KC410M | .F..LNJ | KC410M |
| S1–S2 | .E..LB | KC725M | .E..GB | KC725M | .S..HB | KC725M |
| S3 | .E..LB | KCSM40 | .E..GB | KCSM40 | .S..HB | KCSM40 |
| S4 | .E..LB | KCSM40 | .E..GB | KCSM40 | .S..HB | KCSM40 |
| H1 | – | – | – | – | – | – |
| Kesici uç geometrisi | Frezenin iş parçasına radyal giriş temasında (ae), diş başına başlangıç ilerleme (Fz) % oranı. | Kesici uç geometrisi | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .F..LNJ | 0,17 | 0,67 | 1,20 | 0,12 | 0,49 | 0,86 | 0,09 | 0,36 | 0,64 | 0,08 | 0,32 | 0,56 | 0,07 | 0,29 | 0,51 | .F..LNJ |
| .E..LB | 0,34 | 0,75 | 1,20 | 0,25 | 0,54 | 0,86 | 0,19 | 0,40 | 0,64 | 0,16 | 0,35 | 0,56 | 0,15 | 0,32 | 0,51 | .E..LB |
| .S..LB | 0,34 | 0,73 | 1,33 | 0,25 | 0,53 | 0,96 | 0,19 | 0,39 | 0,71 | 0,16 | 0,34 | 0,62 | 0,15 | 0,32 | 0,57 | .S..LB |
| .E..GB | 0,34 | 0,87 | 1,40 | 0,25 | 0,62 | 1,00 | 0,19 | 0,47 | 0,74 | 0,16 | 0,41 | 0,65 | 0,15 | 0,37 | 0,59 | .E..GB |
| .S..HB | 0,34 | 0,87 | 1,49 | 0,25 | 0,62 | 1,07 | 0,19 | 0,47 | 0,79 | 0,16 | 0,41 | 0,69 | 0,15 | 0,37 | 0,63 | .S..HB |
| Hafif işleme | Genel amaçlı kullanım | Ağır işleme |
| Kesici uç geometrisi | Frezenin iş parçasına radyal giriş temasında (ae), diş başına başlangıç ilerleme (Fz) % oranı. | Kesici uç geometrisi | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .F..LNJ | .007 | .027 | .048 | .005 | .019 | .035 | .004 | .015 | .026 | .003 | .013 | .022 | .003 | .012 | .021 | .F..LNJ |
| .E..LB | .014 | .029 | .047 | .010 | .021 | .034 | .007 | .016 | .025 | .006 | .014 | .022 | .006 | .013 | .020 | .E..LB |
| .S..LB | .014 | .029 | .053 | .010 | .021 | .038 | .007 | .016 | .028 | .006 | .014 | .025 | .006 | .012 | .022 | .S..LB |
| .E..GB | .014 | .034 | .055 | .010 | .025 | .039 | .007 | .018 | .029 | .006 | .016 | .026 | .006 | .015 | .023 | .E..GB |
| .S..HB | .014 | .034 | .059 | .010 | .025 | .042 | .007 | .018 | .031 | .006 | .016 | .027 | .006 | .015 | .025 | .S..HB |
| Hafif işleme | Genel amaçlı kullanım | Ağır işleme |
| Malzeme grubu | KC410M | KC520M | KC522M | KC725M | KCK15 | KCPM20 | KCPK30 | |||||||||||||||
| P | 1 | – | – | – | – | – | – | 395 | 345 | 325 | 315 | 275 | 255 | – | – | – | 660 | 580 | 535 | 545 | 475 | 440 |
| 2 | – | – | – | – | – | – | 330 | 290 | 240 | 260 | 230 | 195 | – | – | – | 410 | 370 | 330 | 335 | 305 | 275 | |
| 3 | – | – | – | – | – | – | 305 | 255 | 215 | 240 | 205 | 170 | – | – | – | 370 | 330 | 305 | 305 | 275 | 250 | |
| 4 | – | – | – | – | – | – | 270 | 225 | 180 | 215 | 180 | 145 | – | – | – | 275 | 255 | 230 | 225 | 210 | 190 | |
| 5 | – | – | – | – | – | – | 225 | 200 | 180 | 180 | 160 | 145 | – | – | – | 330 | 300 | 275 | 310 | 275 | 255 | |
| 6 | – | – | – | – | – | – | 200 | 150 | 120 | 160 | 120 | 95 | – | – | – | 230 | 200 | 175 | 190 | 165 | – | |
| M | 1 | – | – | – | – | – | – | 245 | 215 | 200 | 205 | 180 | 165 | – | – | – | 270 | 240 | 205 | 250 | 220 | 190 |
| 2 | – | – | – | – | – | – | 225 | 190 | 160 | 185 | 160 | 130 | – | – | – | 245 | 215 | 190 | 225 | 195 | 170 | |
| 3 | – | – | – | – | – | – | 170 | 145 | 115 | 140 | 120 | 95 | – | – | – | 195 | 175 | 150 | 175 | 160 | 140 | |
| K | 1 | – | – | – | 325 | 295 | 260 | 275 | 250 | 220 | – | – | – | 505 | 460 | 410 | 435 | 390 | 350 | 355 | 320 | 285 |
| 2 | – | – | – | 255 | 225 | 215 | 215 | 195 | 180 | – | – | – | 400 | 355 | 330 | 345 | 310 | 280 | 280 | 255 | 230 | |
| 3 | – | – | – | 215 | 190 | 170 | 180 | 160 | 145 | – | – | – | 335 | 300 | 275 | 290 | 255 | 240 | 235 | 210 | 195 | |
| N | 1–2 | 1460 | 1300 | 1195 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | 1300 | 1195 | 1100 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | 50 | 45 | 35 | 45 | 35 | 30 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | 50 | 45 | 35 | 45 | 35 | 30 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | 60 | 50 | 35 | 55 | 45 | 30 | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | 85 | 60 | 45 | 75 | 55 | 35 | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Malzeme grubu | KC410M | KC520M | KC522M | KC725M | KCK15 | KCPK30 | |||||||||||||
| P | 1 | – | – | – | – | – | – | 1300 | 1130 | 1060 | 1030 | 900 | 840 | – | – | – | 1780 | 1560 | 1450 |
| 2 | – | – | – | – | – | – | 1080 | 950 | 790 | 860 | 760 | 640 | – | – | – | 1100 | 1000 | 900 | |
| 3 | – | – | – | – | – | – | 1000 | 840 | 700 | 790 | 670 | 550 | – | – | – | 1000 | 900 | 820 | |
| 4 | – | – | – | – | – | – | 890 | 730 | 590 | 710 | 590 | 470 | – | – | – | 740 | 690 | 620 | |
| 5 | – | – | – | – | – | – | 730 | 660 | 590 | 590 | 530 | 470 | – | – | – | 1020 | 910 | 830 | |
| 6 | – | – | – | – | – | – | 650 | 490 | 400 | 520 | 400 | 310 | – | – | – | 620 | 540 | – | |
| M | 1 | – | – | – | – | – | – | 800 | 710 | 650 | 670 | 590 | 540 | – | – | – | 820 | 720 | 620 |
| 2 | – | – | – | – | – | – | 730 | 620 | 520 | 610 | 520 | 430 | – | – | – | 730 | 640 | 550 | |
| 3 | – | – | – | – | – | – | 550 | 480 | 370 | 460 | 400 | 310 | – | – | – | 570 | 520 | 460 | |
| K | 1 | – | – | – | 1060 | 960 | 850 | 900 | 820 | 720 | – | – | – | 1660 | 1510 | 1340 | 1160 | 1050 | 940 |
| 2 | – | – | – | 830 | 740 | 700 | 710 | 640 | 590 | – | – | – | 1310 | 1170 | 1090 | 920 | 830 | 760 | |
| 3 | – | – | – | 700 | 620 | 560 | 590 | 530 | 480 | – | – | – | 1100 | 980 | 900 | 770 | 690 | 640 | |
| N | 1–2 | 4790 | 4260 | 3920 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | 4260 | 3920 | 3600 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | 160 | 140 | 110 | 140 | 120 | 100 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | 160 | 140 | 110 | 140 | 120 | 100 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | 200 | 160 | 110 | 180 | 140 | 100 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | 280 | 200 | 140 | 240 | 180 | 120 | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |

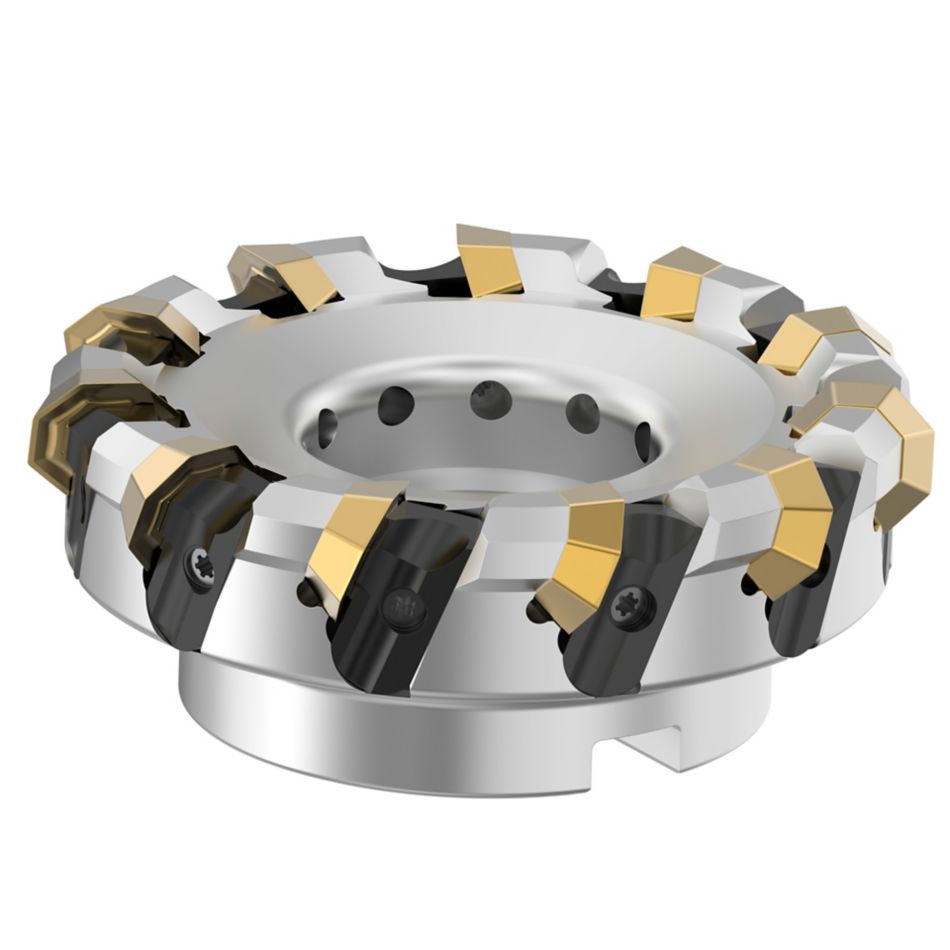

| D1 mm | D1 maks mm | Ap maks | Rampalama açısı (°) | Rampalama uzunluğu mm |
| 63 | 74,2 | 9 | 5,5 | 121,5 |
| 80 | 91,1 | 9 | 4,0 | 167,3 |
| 100 | 111,0 | 9 | 3,0 | 223,2 |
| 125 | 135,9 | 9 | 2,3 | 291,3 |
| 160 | 170,8 | 9 | 1,7 | 394,2 |
| max DOC Ap | mm | talaş yükleme (fz) |
| Ap1 maks. | 5,0 | 1 x fz |
| Ap2 maks | 11,0 | 0,6 x fz |
| maksimum dalma derinliği | mm |
| Ap1 maks. | 4,2 |
| D1 mm | D1 maks mm | Delik çapı | Ap/rev mm | |
| min mm | maks mm | |||
| 63 | 74,2 | 122,7 | 145,0 | 6,3 |
| 80 | 91,1 | 156,6 | 178,0 | 6,3 |
| 100 | 111,0 | 196,5 | 218,7 | 6,3 |
| 125 | 135,9 | 246,4 | 268,7 | 6,3 |
| 160 | 170,8 | 316,9 | 338,6 | 6,3 |
