HARVI™ II TE • Square End • 5 Flutes • Weldon Shank • Inch

Name: HARVI™ II TE • Square End • 5 Flutes • Weldon Shank • Inch
SKU: 107798550
Rating: 0 (0 reviews)

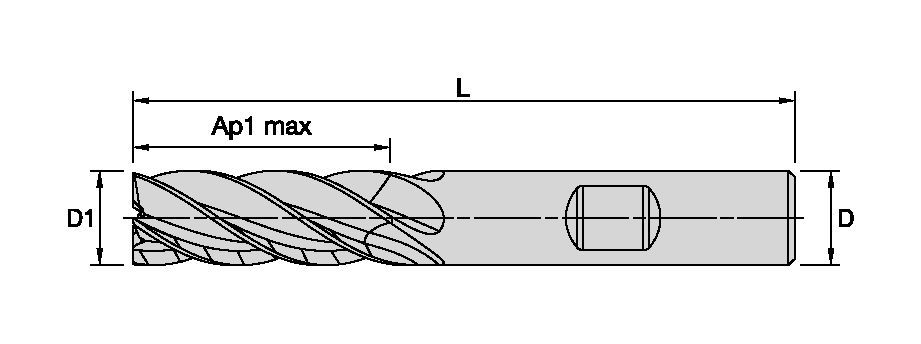

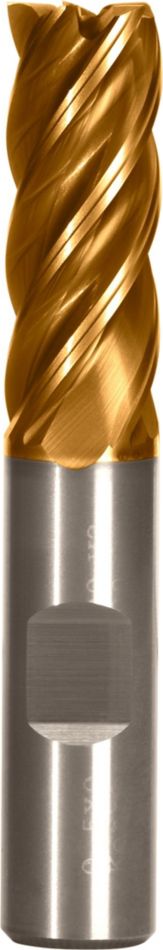

HARVI™ II TE Five Flute End Mill for Increased MRR Covering the Broadest Range of Applications and Materials;
Roughing and Finishing with One Tool

Características e benefícios

Versatile solid carbide endmill for steels, stainless steel, high temperature alloys, and cast iron.

Proprietary core and flute designs with optimum flute spacing for perfect chip formation and highest tool rigidity.

Unique End Face Design for agressive ramping and plunging operations.

Unequally spaced flutes and differential helix allow for the broadest range of applications.

Chip gashes in the flutes ensure optimum chip removal.

Eccentric relief provides edge stability in a broad range of materials.

With Weldon Shank for economical pull-out protection.

Peças compatíveis
Velocidades e avanços

Table for Feed and Speed Calculation with Adjustment Factor • INCH

								Kenar frezeleme (A) için önerilen diş başına ilerleme (IPT = inç/diş). Kanal açma (B) için IPT %20 azaltılır.
		Dik kenar frezeleme (A) ve Kanal frezeleme (B)			KCPM15			D1 Çap
		A		B	Kesme hızı vc SFM			frac.	1/8	5/32	3/16	7/32	1/4	9/32	5/16	3/8	1/2	5/8	3/4	1	1 1/4
Malzeme grubu		ap	ae	ap	Min.	Başlangıç	Maks.	dec.	.1250	.1563	.1875	.2188	.2500	.2813	.3125	.3750	.5000	.6250	.7500	1.0000	1.2500
P	P0	1.5 x D1	0.5 x D1	1.25 x D1	490	575	660	IPT	0.0010	0.0012	0.0015	0.0017	0.0020	0.0023	0.0026	0.0030	0.0037	0.0043	0.0048	0.0054	0.0054
	P1	1.5 x D1	0.5 x D1	1.25 x D1	490	575	660	IPT	0.0010	0.0012	0.0015	0.0017	0.0020	0.0023	0.0026	0.0030	0.0037	0.0043	0.0048	0.0054	0.0054
	P2	1.5 x D1	0.5 x D1	1.25 x D1	460	540	620	IPT	0.0010	0.0012	0.0015	0.0017	0.0020	0.0023	0.0026	0.0030	0.0037	0.0043	0.0048	0.0054	0.0054
	P3	1.5 x D1	0.5 x D1	1.25 x D1	390	455	520	IPT	0.0008	0.0010	0.0012	0.0014	0.0017	0.0019	0.0021	0.0025	0.0032	0.0038	0.0042	0.0050	0.0053
	P4	1.5 x D1	0.5 x D1	1.25 x D1	300	395	490	IPT	0.0007	0.0009	0.0011	0.0013	0.0015	0.0017	0.0019	0.0022	0.0028	0.0033	0.0037	0.0042	0.0044
	P5	1.5 x D1	0.5 x D1	1.25 x D1	200	265	330	IPT	0.0007	0.0008	0.0010	0.0012	0.0014	0.0015	0.0017	0.0020	0.0025	0.0030	0.0034	0.0040	0.0043
	P6	1.5 x D1	0.5 x D1	1.25 x D1	160	205	250	IPT	0.0006	0.0007	0.0008	0.0010	0.0011	0.0013	0.0014	0.0017	0.0021	0.0025	0.0027	0.0031	0.0032
M	M1	1.5 x D1	0.5 x D1	1.25 x D1	300	340	380	IPT	0.0008	0.0010	0.0012	0.0014	0.0017	0.0019	0.0021	0.0025	0.0032	0.0038	0.0042	0.0050	0.0053
	M2	1.5 x D1	0.5 x D1	1.25 x D1	200	230	260	IPT	0.0007	0.0008	0.0010	0.0012	0.0014	0.0015	0.0017	0.0020	0.0025	0.0030	0.0034	0.0040	0.0043
	M	1.5 x D1	0.5 x D1	1.00 x D1	200	215	230	IPT	0.0006	0.0007	0.0008	0.0010	0.0011	0.0013	0.0014	0.0017	0.0021	0.0025	0.0027	0.0031	0.0032
K	K1	1.5 x D1	0.5 x D1	1.00 x D1	390	440	490	IPT	0.0010	0.0012	0.0015	0.0017	0.0020	0.0023	0.0026	0.0030	0.0037	0.0043	0.0048	0.0054	0.0054
	K2	1.5 x D1	0.5 x D1	1.00 x D1	360	410	460	IPT	0.0008	0.0010	0.0012	0.0014	0.0017	0.0019	0.0021	0.0025	0.0032	0.0038	0.0042	0.0050	0.0053
	K3	1.5 x D1	0.5 x D1	1.00 x D1	360	395	430	IPT	0.0007	0.0008	0.0010	0.0012	0.0014	0.0015	0.0017	0.0020	0.0025	0.0030	0.0034	0.0040	0.0043
S	S1	1.5 x D1	0.3 x D1	0.75 x D1	160	230	300	IPT	0.0008	0.0010	0.0012	0.0014	0.0017	0.0019	0.0021	0.0025	0.0032	0.0038	0.0042	0.0050	0.0053
	S2	1.5 x D1	0.3 x D1	0.75 x D1	80	120	160	IPT	0.0004	0.0005	0.0007	0.0008	0.0009	0.0010	0.0011	0.0013	0.0017	0.0020	0.0023	0.0027	0.0029
	S3	1.5 x D1	0.5 x D1	0.50 x D1	80	105	130	IPT	0.0004	0.0005	0.0007	0.0008	0.0009	0.0010	0.0011	0.0013	0.0017	0.0020	0.0023	0.0027	0.0029
	S4	1.5 x D1	0.5 x D1	1.25 x D1	160	180	200	IPT	0.0005	0.0007	0.0008	0.0010	0.0012	0.0014	0.0016	0.0019	0.0023	0.0028	0.0031	0.0036	0.0039
H	H1	1.5 x D1	0.5 x D1	1.0 x D1	260	360	460	IPT	0.0007	0.0009	0.0011	0.0013	0.0015	0.0017	0.0019	0.0022	0.0028	0.0033	0.0037	0.0042	0.0044
	H2	1.5 x D1	0.2 x D1	1.0 x D1	230	310	390	IPT	0.0006	0.0007	0.0008	0.0010	0.0011	0.0013	0.0014	0.0017	0.0021	0.0025	0.0027	0.0031	0.0032
These guidelines may require variations to achieve optimum results. Above parameters are based on ideal conditions. For smaller taper machining centers, please adjust parameters accordingly on 1/2" diameter. For tools with reach 4.5xD, reduce fz by 30% and use lowe range of cutting speed as starting condition. Tools with chip splitters can be used as finishers.
