| Objednací číslo | 1161835 |

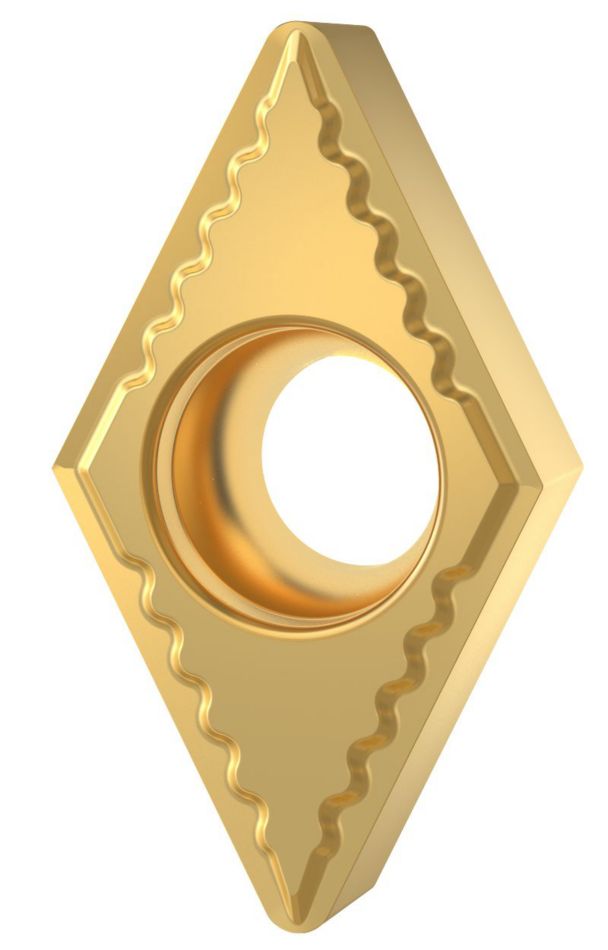

| ISO katalogové ID | DCMT11T304UF |
| ANSI katalogové ID | DCMT3251UF |
| Grade | KC730 |
| [D] Insert IC Size | 9.525 mm |
| [D] Insert IC Size | .375 in |
| [L10] Insert Cutting Edge Length | 11.628 mm |
| [L10] Insert Cutting Edge Length | .4578 in |
| [S] Insert Thickness | 3.97 mm |
| [S] Insert Thickness | .1563 in |
| [Rε] Corner Radius | 0.4 mm |
| [Rε] Corner Radius | .0156 in |
| [D1] Insert Hole Size | 4.4 mm |
| [D1] Insert Hole Size | .1732 in |
Vytvořit řešení pro výpočet posuvů a rychlosti
Po vytvoření řešení stačí vybrat ikonu Posuvy & Rychlosti a náš systém poskytne doporučení. Informace můžete upravit přidáním zařízení a specifikací nebo provést úpravy pomocí posuvníků.
