I.D. Turning
I.D. Chamfering & ProfilingDownloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 1950382 |
| ISO katalogové ID | E05MSWUPR15 |
| ANSI katalogové ID | E05MSWUPR15 |

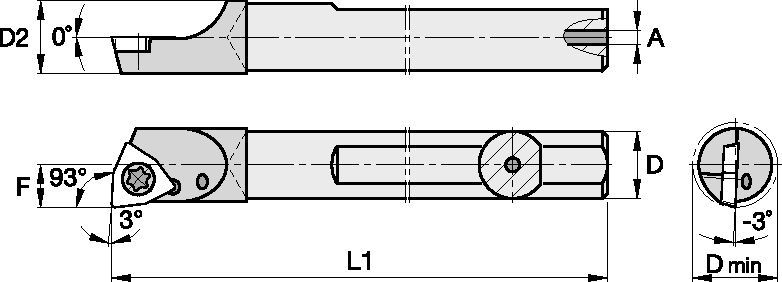

| [D] Adapter / Shank / Bore Diameter | 7.93 mm |
| [D] Adapter / Shank / Bore Diameter | .312 in |
| [DM] Minimum Bore Diameter | 8.81 mm |
| [DM] Minimum Bore Diameter | .347 in |
| [F] F Dimension | 4.42 mm |
| [F] F Dimension | .174 in |
| [L1] Tool Length | 152.4 mm |
| [L1] Tool Length | 6 in |
| [L] Overall Length | 152.4 mm |
| [L] Overall Length | 6 in |
| [A] Coolant Hole Diameter | 2.36 mm |
| [A] Coolant Hole Dia | .093 in |
| [A1] Coolant Hole Diameter Exit | 2.03 mm |
| [A1] Coolant Hole Diameter Exit | .08 in |
| Gage Insert | WP..1511 |
| Insert Screw ID Drive Size | T6 |
I.D. TurningI.D. Chamfering & ProfilingVytvořit řešení pro výpočet posuvů a rychlosti
