Reaming: Through Hole
Reaming: Blind Hole
Coolant - Through Coolant
Shank - HSK DIN 69893 Form ADownloaded file will be available after import in the {{cadTool}} tool library.

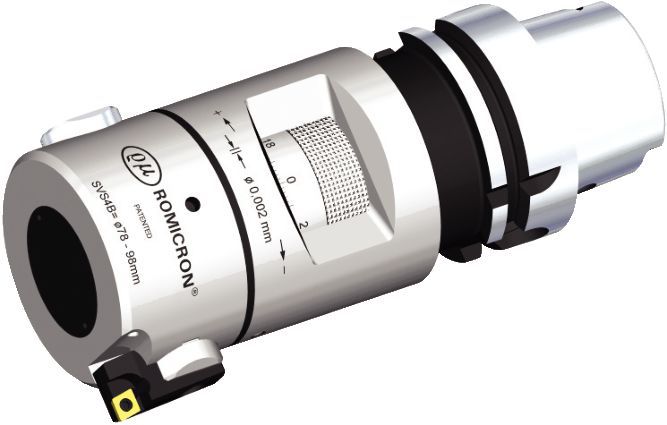

| Objednací číslo | 1763116 |
| ISO katalogové ID | HSK63ASVS4B139M |
| ANSI katalogové ID | HSK63ASVS4B139M |
| [BR1] Bore Diameter Range | 78.0000-98 mm |
| [BR1] Bore Diameter Range | 3.071 in |
| [CSMS] System Size Machine Side | HSK63A |
| [D] Adapter / Shank / Bore Diameter | 63 mm |
| [D] Adapter / Shank / Bore Diameter | 2.48 in |
| [D2] Body Diameter 1 Workpiece Side | 65 mm |
| [D2] Body Diameter 1 Workpiece Side | 2.56 in |
| [L1Assy] Assembly Length | 113.03 mm |
| [L1Assy] Assembly Length | 4.45 in |
| [L2Assy] Assembly Length | 113.03 mm |
| [L2Assy] Assembly Length | 5.47 in |
| Weight Kilograms | 3.64 |
| Weight Pounds | 8 |
Reaming: Through HoleReaming: Blind HoleCoolant - Through CoolantShank - HSK DIN 69893 Form AVytvořit řešení pro výpočet posuvů a rychlosti
