Coolant: Through Coolant 80 bar Maximum
Coolant: Through Coolant 1200 psi Maximum
Cut-Off
O.D. Deep Grooving
GroovingDownloaded file will be available after import in the {{cadTool}} tool library.
| Número de material | 6543726 |

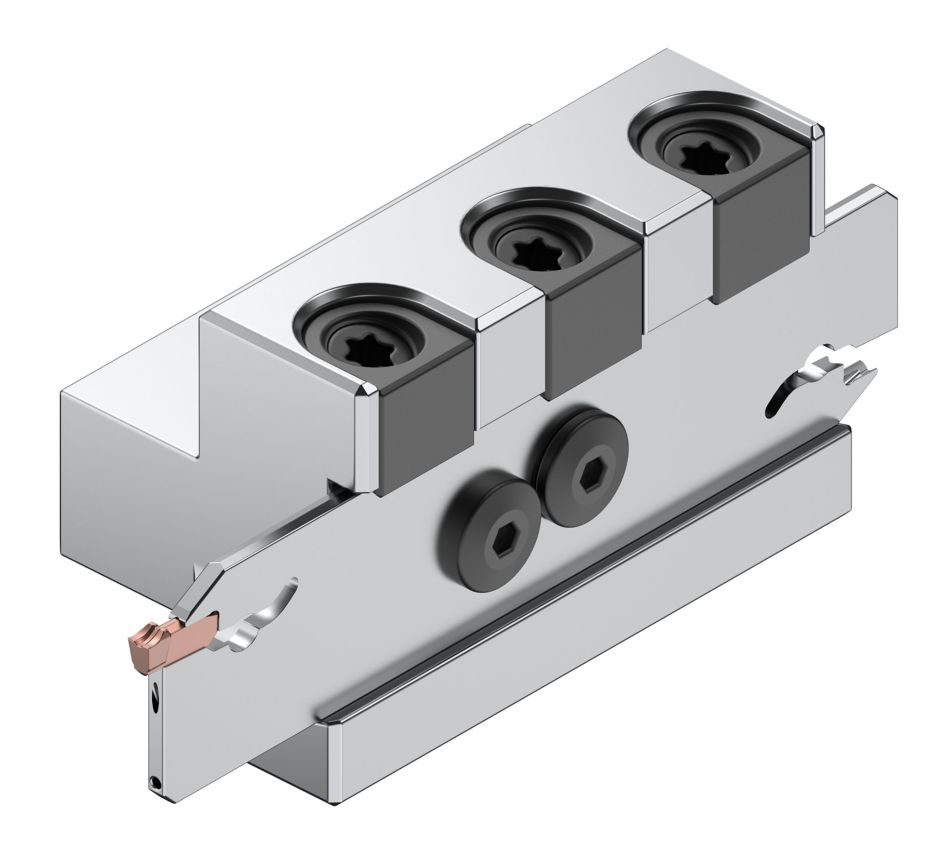

| ID do catálogo ISO | EVTZN1226C |
| ID do catálogo ANSI | EVTZN1226C |
| [B2] Overall Width | 42.05 mm |
| [B2] Overall Width | 1.655 in |
| [B] Shank Width | 19 mm |
| [B] Shank Width | .75 in |
| [F] F Dimension | 37.55 mm |
| [F] F Dimension | 1.478 in |
| [HW] Shank Height | 26 mm |
| [HW] Shank Height | 1.021 in |
| [H] Shank Height | 19 mm |
| [H] Shank Height | .75 in |
| [H3] Head Bottom Offset | 11.95 mm |
| [H3] Head Bottom Offset | .4705 in |
| [L] Overall Length | 78 mm |
| [L] Overall Length | 3.07 in |
| [CS] Coolant Supply Size | G1/8 |
Coolant: Through Coolant 80 bar MaximumCoolant: Through Coolant 1200 psi MaximumCut-OffO.D. Deep GroovingGroovingCriar solução para calcular avanços e velocidade
Após criar uma solução basta escolher o ícone Avanços & Velocidades e o nosso sistema irá fornecer recomendações. Pode personalizar as informações adicionando a sua máquina e especificações ou fazer ajustes utilizando os controlos deslizantes.
