I.D. TurningDownloaded file will be available after import in the {{cadTool}} tool library.
| ์ ํ ๋ฒํธ | 1098255 |
| ISO ์นดํ๋ก๊ทธ ID | A20SSTFPR16 |
| ANSI ์นดํ๋ก๊ทธ ID | A20SSTFPR16 |

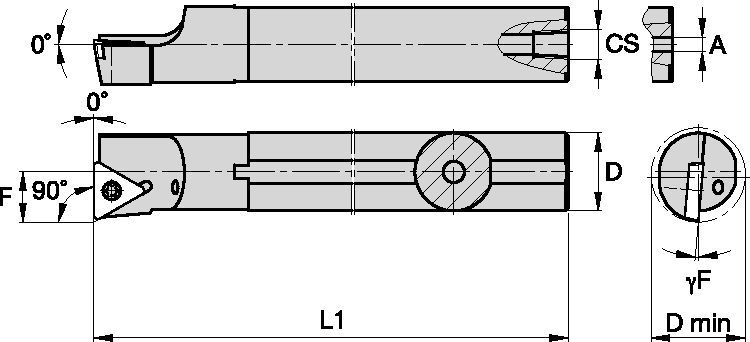

| [D] Adapter / Shank / Bore Diameter | 20 mm |
| [D] Adapter / Shank / Bore Diameter | 0.79 in |
| [DM] Minimum Bore Diameter | 25 mm |
| [DM] Minimum Bore Diameter | 0.984 in |
| [F] F Dimension | 13 mm |
| [F] F Dimension | 0.512 in |
| [L1] Tool Length | 250 mm |
| [L1] Tool Length | 9.843 in |
| [L] Overall Length | 250 mm |
| [L] Overall Length | 9.843 in |
| [L2] Head Length | 33.32 mm |
| [L2] Head Length | 1.312 in |
| [LH] Head Length | 33.32 mm |
| [LH] Head Length | 1.312 in |
| [CS] Coolant Supply Size | 1/8-27 NPT |
| [A] Coolant Hole Diameter | 4 mm |
| [A] Coolant Hole Dia | 0.16 in |
| Gage Insert | TP..16T308 |
| Insert Screw ID Drive Size | T15 |
I.D. Turning์ด์ก ๋ฐ ์๋๋ฅผ ๊ณ์ฐํ๋ ค๋ฉด ์๋ฃจ์ ์ ์์ฑํ์ธ์.
์๋ฃจ์ ์์ฑ ํ ์ด์ก ๋ฐ ์๋ ์์ด์ฝ์ ์ ํํ๋ฉด ์ถ์ฒ ๊ฐ์ด ์ ๊ณต๋ฉ๋๋ค. ๊ธฐ๊ณ์ ์ฌ์์ ์ถ๊ฐํ์ฌ ์ฌ์ฉ์ ์ ๋ณด๋ฅผ ์ง์ ํ๊ฑฐ๋ ์ฌ๋ผ์ด๋๋ฅผ ์ฌ์ฉํ์ฌ ์กฐ์ ํ ์ ์์ต๋๋ค.
